• For digital/dial indicators and dial test indicators



• Supplied with limit pointers and bezel clamp
• Packed in carton box



• Non waterproof

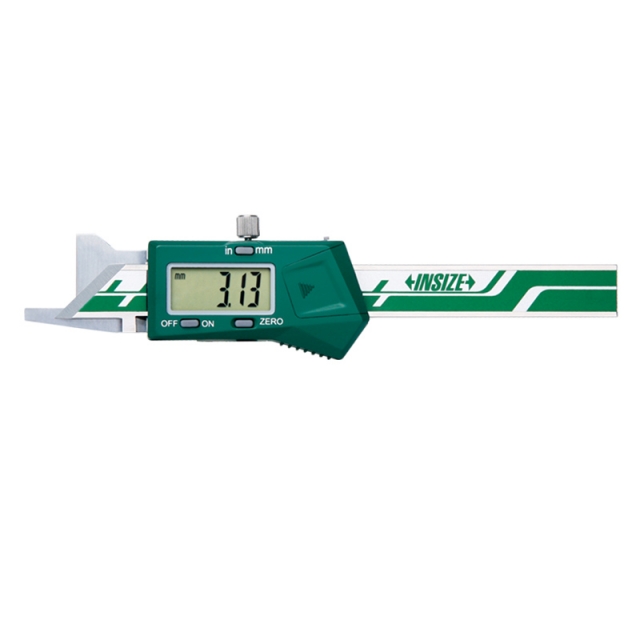

• Measure 15º/20º/30º/45º/60º chamfer dimension
• Buttons: on/off, zero, mm/inch



• Measure keyway depth of cylindrical workpieces with diameter Ø10-100mm
• Button function: on/off, zero, inch/metric conversion, absolute/incremental measurement, data preset,measuring direction change
• CR2032 battery, automatic power off (time is adjustable)



• Non waterproof

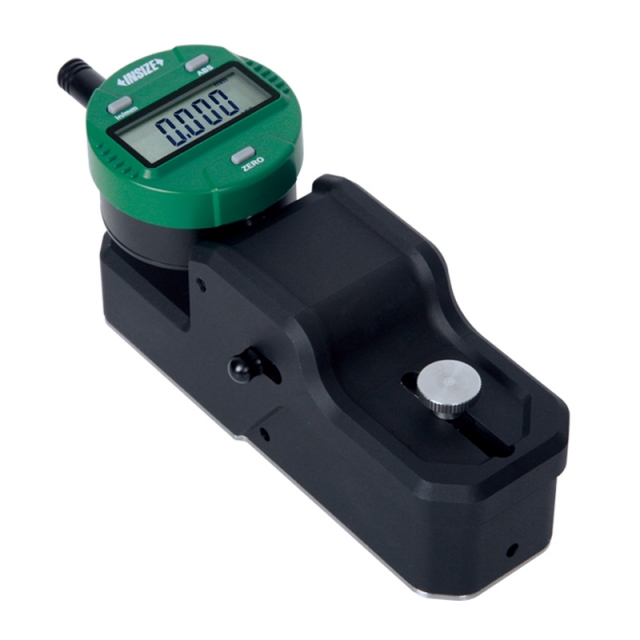

• Used to measure the symmetry of shaft keyways
• Buttons: on/off, zero, mm/inch



• Non waterproof

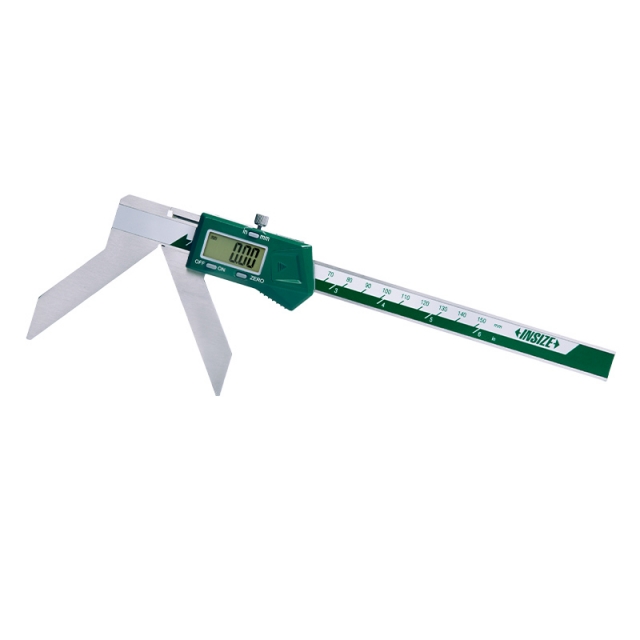

• Measure radius of external arc, arc angle of measured surface should be larger than 90°
• Buttons: on/off, zero, mm/inch



• Non waterproof

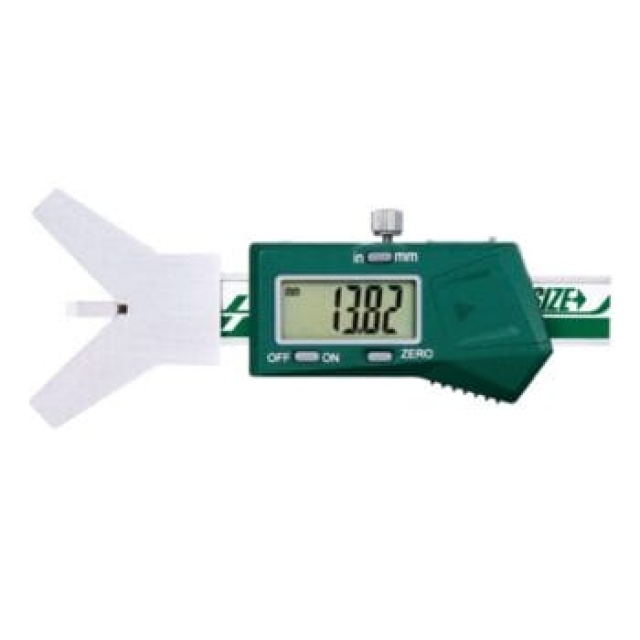

• Measure the radius of arc less than half round
• Buttons: on/off, zero, mm/inch

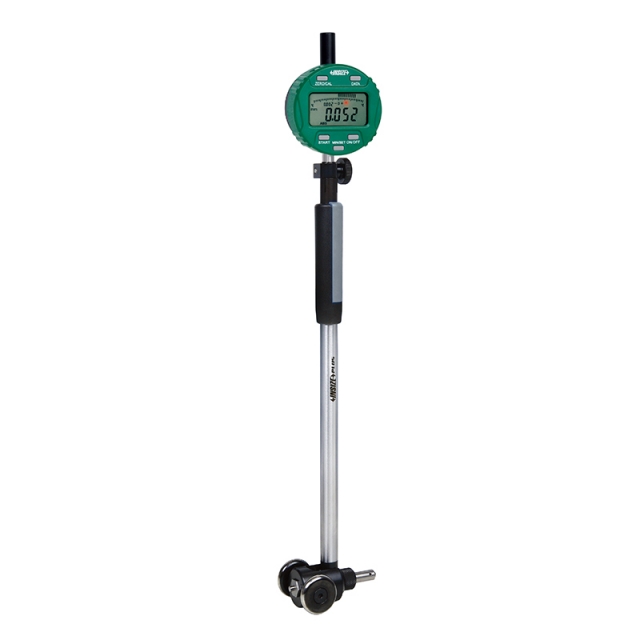

• Measure end diameter of chamfer holes
• Resolution: 0.01mm/0.0005"
• Direct read (end diameter), no calculations



• Applicable for 0.01mm or 0.001mm graduation dial indicators



• Optional accessory: digital indicators (code 2103-10F, resolution 0.001mm/0.00005"), setting rings (code 6312)



• Conform standardului DIN 863-4
• Protecție IP54 împotriva prafului și a apei
• Butoane: pornire/oprire, setare, mm/inch



• Button function: on/off, set, mm/inch, data transmit
• Automatic power off
• Ratchet stop



• Ratchet stop
• Carbide measuring faces



• Optional accessory: setting ring (code 6312), long handle (code 7351), bore gauge setter

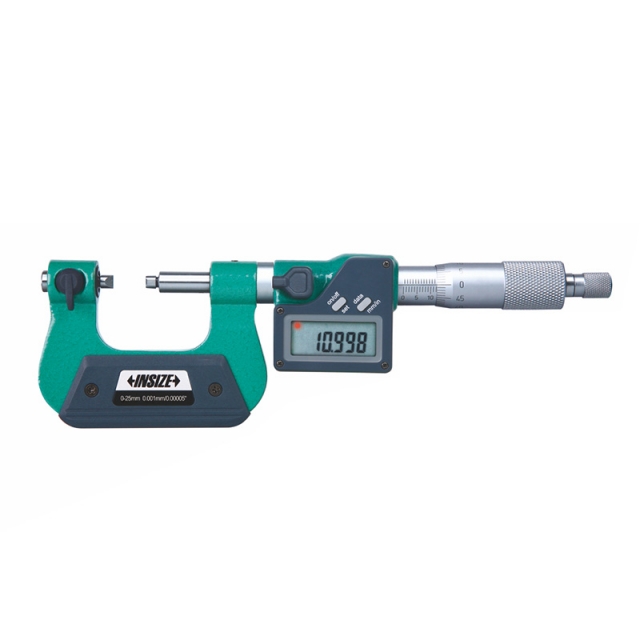

• Measure pitch diameter of screw threads
• Button function: on/off, set, mm/inch, data transmit
• Automatic power off

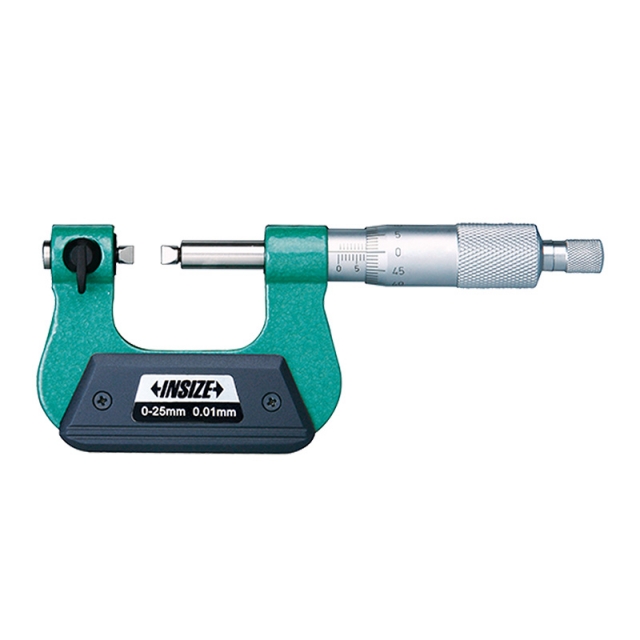

• Measure pitch diameter of screw threads
• Non-rotating spindle
• Ratchet stop



• Measure wall thickness of tubes
• Button function: on/off, set, mm/inch, data transmit
• Automatic power off



• Meet DIN863-3
• Measure wall thickness of tubes
• Ratchet stop



• Measure the groove diameter of shafts and keyways
• Non-rotating spindle
• Button function: on/off, set, mm/inch, data transmit



• Meet DIN863-3

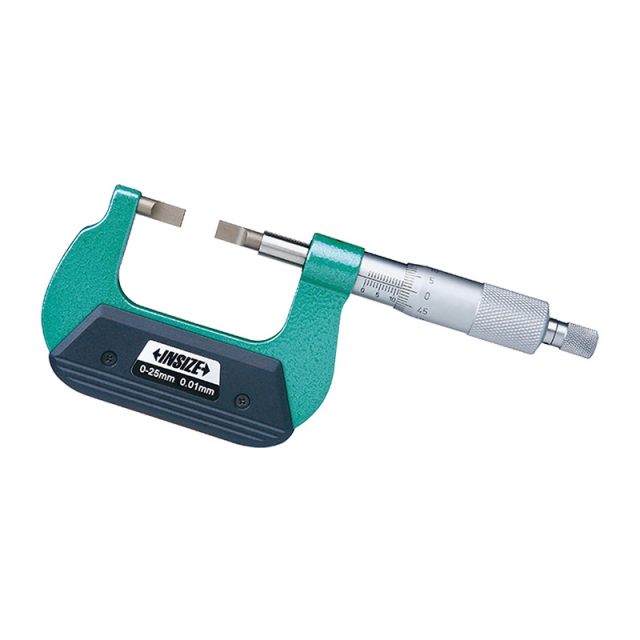

• Measure the groove diameter of shafts and keyways
• Non-rotating spindle
