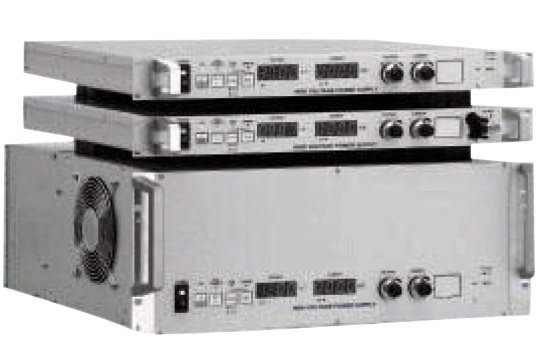

High Voltage Power Supply up to 70kV Heiden HE-XPSx

Code: Heiden HE-XPSx

Datasheet

PDF, 0.83 Mb

Description

Modern resonance mode and circuit technologies, which have been used for this high voltage power supply, allow to reach highest efficiencies. Excellent control capabilities are realized at the same time as well as little ripple and noise. This enables these HV power supplies for use in a broad range of applications, e.g. magnetrons, laser, X-ray tube PS, ion implantation, ion pumps, capacitor charging, e-beam systems, electrostatics, etc. Through customer specified modifications (small output ripple, reduced stored energy, mechanical dimensions) these HV PS can be matched perfectly to existing requirements.

AC mains supplied, modular HV PS in the range of 300 W to 800 W
High voltages from 1 kV up to 70 kV
Extraordinary control characteristics for output voltage and current.
C-charger (KPS and LPS series) with very low output voltage overshoot
State-of-the-art resonant converter topology, low EMI
Very high efficiency, up to 85 %
Wide range mains input with PFC

Model

Current (mA)

Voltage (kV)

Power (kW)

HE-XPSx 0301

0 � 300 mA

0 � 1 kV

300 W

HE-XPSx 0302

0 � 150 mA

0 � 2 kV

300 W

HE-XPSx 0303

0 � 100 mA

0 � 3 kV

300 W

HE-XPSx 0304

0 � 75 mA

0 � 4 kV

300 W

HE-XPSx 0306

0 � 50 mA

0 � 6 kV

300 W

HE-XPSx 0308

0 � 35 mA

0 � 8 kV

300 W

HE-XPSx 0312

0 � 25 mA

0 � 12 kV

300 W

HE-XPSx 0315

0 � 20 mA

0 � 15 kV

300 W

HE-XPSx 0320

0 � 15 mA

0 � 20 kV

300 W

HE-XPSx 0330

0 � 10 mA

0 � 30 kV

300 W

HE-XPSx 0801

0 � 800 mA

0 � 1 kV

800 W

HE-XPSx 0802

0 � 400 mA

0 � 2 kV

800 W

HE-XPSx 0803

0 � 250 mA

0 � 3 kV

800 W

HE-XPSx 0804

0 � 200 mA

0 � 4 kV

800 W

HE-XPSx 0806

0 � 130 mA

0 � 6 kV

800 W

HE-XPSx 0808

0 � 100 mA

0 � 8 kV

800 W

HE-XPSx 0812

0 � 65 mA

0 � 12 kV

800 W

HE-XPSx 0815

0 � 50 mA

0 � 15 kV

800 W

HE-XPSx 1501

0 � 1500 mA

0 � 1 kV

1,5 kW

HE-XPSx 1502

0 � 750 mA

0 � 2 kV

1,5 kW

HE-XPSx 1503

0 � 500 mA

0 � 3 kV

1,5 KW

HE-XPSx 1504

0 � 350 mA

0 � 4 kV

1,5 kW

HE-XPSx 1508

0 � 180 mA

0 � 8 kV

1,5 kW

HE-XPSx 1512

0 � 120 mA

0 � 12 kV

1,5 kW

HE-XPSx 1515

0 � 100 mA

0 � 15 kV

1,5 kW

HE-XPSx 3001

0 � 3000 mA

0 � 1 kV

3 kW

HE-XPSx 3002

0 � 1500 mA

0 � 2 kV

3 kW

HE-XPSx 3003

0 � 1000 mA

0 � 3 kV

3 KW

HE-XPSx 3004

0 � 700 mA

0 � 4 kV

3 kW

HE-XPSx 3008

0 � 350 mA

0 � 8 kV

3 kW
