Brand: Heiden

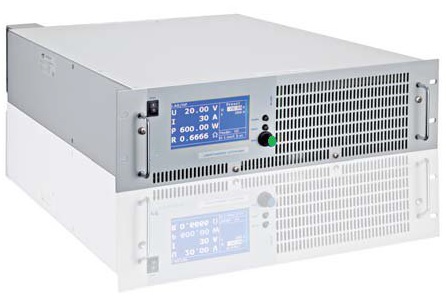

DC High Power Supply 5~15kW Heiden HE-LAB/HP

Code: Heiden HE-LAB/HP Series



Datasheet PDF, 0.21 Mb

Description

Very compact design (3U), high power, excellent specification. The HE-LAB/HP series is available as 5, 10 and 15 kW version. With the master-slave option the power can be expanded up to 120kW.



  • Efficiency up to 94 %
  • Compact Design
  • Active and Parallel connectable
  • Easiest operation via front panel
  • Constant Current, Voltage, Resistance and Power Operation
  • Randomly programmable Memory Locations for U/I waves
  • UI, UIP, UIR Mode, Simulation of PV-Arrays
  • Script Control: process programming and booting from memory card
  • Creating user defined output characteristics via memory card or digital interface
  • Digital Interfaces IEEE 488, RS232/485, USB and LAN (optional)
  • Galvanically isolated Analogue Interface 0-5V or 0-10V
  • (user selectable; optional)
  • Storable U/I wave forms (e.g. for PV simulation and sequential control)
  • Graphical Display
  • Special version on request
  • Datalog function: operation values can be saved in an adjustable interval to a memory card
  • Script operation in combination with Datalog function allows an independent stand-alone test field setup
  • Umax and Imax randomly selectable to limit maximum output voltage and current



Order Number

Power(W)

Voltage(V)

Current(A)

Dimensions

HE-LAB/HP 520

5.000

0 - 20

0 - 250

19" x 3 U x 620 mm

HE-LAB/HP 540

5.000

0 - 40

0 - 125

19" x 3 U x 620 mm

HE-LAB/HP 580

5.000

0 - 80

0 - 65

19" x 3 U x 620 mm

HE-LAB/HP 5100

5.000

0 - 100

0 - 50

19" x 3 U x 620 mm

HE-LAB/HP 5150

5.000

0 - 150

0 - 35

19" x 3 U x 620 mm

HE-LAB/HP 5300

5.000

0 - 300

0 - 17

19" x 3 U x 620 mm

HE-LAB/HP 5600

5.000

0 - 600

0 - 8,5

19" x 3 U x 620 mm

HE-LAB/HP 51000

5.000

0 - 1.000

0 - 5

19" x 3 U x 620 mm

HE-LAB/HP 51200

5.000

0 - 1.200

0 - 4

19" x 3 U x 620 mm

HE-LAB/HP 1020

10.000

0 - 20

0 - 500

19" x 3 U x 620 mm

HE-LAB/HP 1040

10.000

0 - 40

0 - 250

19" x 3 U x 620 mm

HE-LAB/HP 1080

10.000

0 - 80

0 - 130

19" x 3 U x 620 mm

HE-LAB/HP 10100

10.000

0 - 100

0 - 100

19" x 3 U x 620 mm

HE-LAB/HP 10150

10.000

0 - 150

0 - 70

19" x 3 U x 620 mm

HE-LAB/HP 10300

10.000

0 - 300

0 - 34

19" x 3 U x 620 mm

HE-LAB/HP 10600

10.000

0 - 600

0 - 17

19" x 3 U x 620 mm

HE-LAB/HP 101000

10.000

0 - 1.000

0 - 10

19" x 3 U x 620 mm

HE-LAB/HP 101200

10.000

0 - 1.200

0 - 8

19" x 3 U x 620 mm

HE-LAB/HP 1520

15.000

0 - 20

0 - 750

19" x 3 U x 620 mm

HE-LAB/HP 1540

15.000

0 - 40

0 - 375

19" x 3 U x 620 mm

HE-LAB/HP 1580

15.000

0 - 80

0 - 195

19" x 3 U x 620 mm

HE-LAB/HP 15100

15.000

0 - 100

0 - 150

19" x 3 U x 620 mm

HE-LAB/HP 15150

15.000

0 - 150

0 - 100

19" x 3 U x 620 mm

HE-LAB/HP



Recommended options

Options

Description

../230

Input 230 / 207 - 253 VAC

../3P208

Input 3 x 208 / 187 - 229 VAC

../3P400

Input 3 x 400 / 360 - 440 VAC

../3P480

Input 3 x 480 / 432 - 528 VAC

../ATE

without Front Panel Operation

../ATI5/10

galvanic insulated analogue interface 0 - 5 / 0 - 10 VDC

../LT

interface IEEE488

../LTRS485

interface RS485

../LTRS232

interface RS232

../LAN

interface LAN

../USB

interface USB

../KFZ12

12 V starting curve programmed

../KFZ24

24 V starting curve programmed

../OPT

Output characteristic of specification

../SD

SD Card Slot

../M-S

Master-Slave Option up to 120 kW
