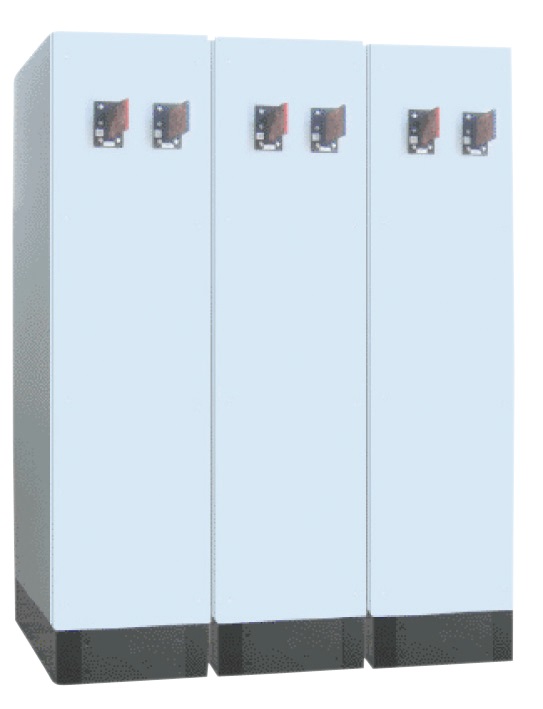

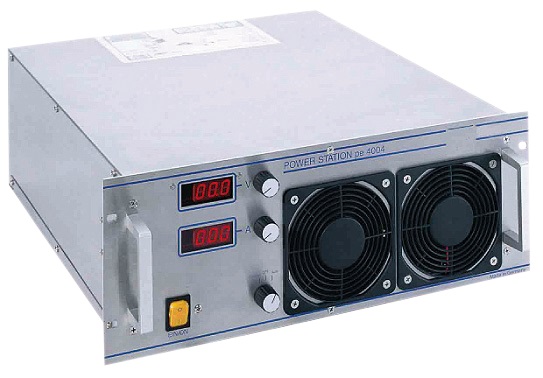

The high-current power supplies Series 1138 & 1139 may affect up to 50V supply a current up to 24000A. These high-current power supplies are created customized and there is a 19"module or cabinet.

Wide application
A high-current applications of 5000 and more
customized configuration
robust and inexpensive
Sense, soft start
remote control, analog, freely definable voltages and currents up to max. 75 kW
RS485, LAN, Profibus
Water cooling
parallel to 24000 A and 120 kW

DC power source suitable for:

Electroplating
Chrome
Anodized
Electrophoresis

Recommended options

Order Number	kW	Current (A)	Voltage (V)
1138-006100	0,6 kW	0 � 100 A	6 V
1138-006200	1,2 kW	0 � 200 A	6 V
1138-006300	1,8 kW	0 � 300 A	6 V
1138-006500	3,0 kW	0 � 500 A	6 V
1138-006001	6,0 kW	0 � 1000 A	6 V
1138-006002	12,0 kW	0 � 2000 A	6 V
1138-015100	1,5 kW	0 � 100 A	15 V
1138-015200	3,0 kW	0 � 200 A	15 V
1138-015300	4,5 kW	0 � 300 A	15 V
1138-015500	7,5 kW	0 � 500 A	15 V
1138-015001	15,0 kW	0 � 1000 A	15 V
1138-015002	30,0 kW	0 � 2000 A	15 V
1138-024100	2,4 kW	0 � 100 A	24 V
1138-024200	4,8 kW	0 � 200 A	24 V
1138-024300	7,2 kW	0 � 300 A	24 V
1138-024500	12,0 kW	0 � 500 A	24 V
1138-024001	24,0 kW	0 � 1000 A	24 V
1138-024002	48,0 kW	0 � 2000 A	24 V
1138-050100	5,0 kW	0 � 100 A	50 V
1138-050200	10,0 kW	0 � 200 A	50 V
1138-050300	15,0 kW	0 � 300 A	50 V
1138-050500	25,0 kW	0 � 500 A	50 V
1138-050001	50,0 kW	0 � 1000 A	50 V
1138-RS232		Interface
1138-analog		RCP (insulated)
1138-500		handheld
1138-50x		19" Control field

Order Number

Current (A)

Voltage (V)

1139-006100

0,6 kW

0 � 100 A

6 V

1139-006200

1,5 kW

0 � 250 A

6 V

1139-006500

3,0 kW

0 � 500 A

6 V

1139-006001

6,0 kW

0 � 1000 A
