Brand: Heiden

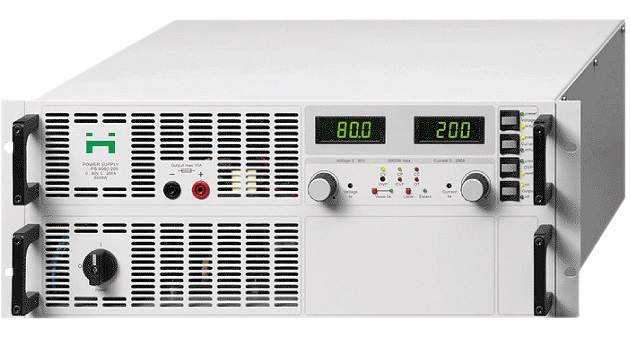

DC Regulated Power Supply 1.5~9kW with Autoranging Heiden HEA-PS-9000

Code: Heiden HEA-PS-9000



Datasheet PDF, 1.3 Mb

Description

The HEA-PS-9000 series includes devices with output voltages from 80V to 750V, currents of 15A to 300A and output of 1500W and 3000W.



  • Operating modes: CV, CC and CP
  • programmable, remote-controlled
  • 19 "2 to 6 U
  • optional as a source-sink
  • optional with water cooling
  • optional with CAN, Ethernet, IEC (IEEE488/RS232), USB, USB cable



Order Number

Voltage (V)

Current (A)

Power(kW)

HEA-PS9080-50

0 … 80 V

0 … 50 A

1,5

HEA-PS9300-15

0 … 300 V

0 … 15 A

1,5

HEA-PS9080-100

0 … 80 V

0 … 100 A

3

HEA-PS9300-25

0 … 300 V

0 … 25 A

3

HEA-PS9600-15

0 … 600 V

0 … 15 A

3

HEA-PS9080-200

0 … 80 V

0 … 200 A

6

HEA-PS9160-100

0 … 160 V

0 … 100 A

6

HEA-PS9300-50

0 … 300 V

0 … 50 A

6

HEA-PS9600-25

0 … 600 V

0 … 25 A

6

HEA-PS9080-300

0 … 80 V

0 … 300 A

9

HEA-PS9240-100

0 … 300 V

0 … 100 A

9

HEA-PS9300-75

0 … 240 V

0 … 75 A

9

HEA-PS9750-25

0 … 750 V

0 … 25 A

9



Recommended options

HEA-PS9-xxx

HEA-PS9000 Options

Interfaces

HEA-PS9-QS

HEA-PS9000 Options

Source-Sink

HEA-PS9-W

HEA-PS9000 Options

water cooled
