Fluke Topas 1760 Three Phase Power Quality Recorder

Code: Fluke Topas 1760 1760-Basic




Datasheet PDF, 0.57 Mb

Description

  • 8 input channels
  • Fully Class-A compliant: Conduct tests according to the stringent international IEC 61000-4-30 Class-A standard
  • Power quality statistics according to EN50160 and DISDIP tables like ITIC, CEBEMA, ANSI
  • records rms values together with corresponding minimum and maximum values for: Voltage Current  Power P, Q, S  Power Factor kWh  Flicker Unbalance Frequency Harmonics Interharmonics
  • 10 MHz, 6000 Vpk waveform capture: Get a detailed picture of even the shortest event
  • GPS time synchronization: Correlate data with events or datasets from other instruments with precision
  • Flexible and fully configurable thresholds and scale factors: Allows user to pinpoint specific issues by defining the detailed criteria for detection and recording of disturbances.
  • Uninterrupted power supply (40 minutes): Never miss important events - even record the beginning and end of interruptions and outages to help determine the cause
  • 2 GB data memory: Enables detailed, simultaneous recording of numerous power parameters for long periods of time
  • Comprehensive software included: Provides trend diagrams for root cause analysis, statistical summaries, report writing and real-time data monitoring in the online mode
  • Plug and play: Allows quick setup with automatic sensor detection; sensors are instrument powered, eliminating the need for batteries
  • Rugged field design: Insulated housing and a solid state design with no rotating components enable reliable testing under nearly any conditions


Standard accessories

Topas Power Quality Recorder with 8 input-channels (4 currents/4 voltages or 8 voltages)

Fluke 1760 Basic include:
  • Internal Flash-memory 2 GB
  • PQ Analyze software on CD-ROM
  • Ethernet cable for network connection (1)
  • Crosslink Ethernet cable for direct PC connection (1)
  • Mains cable (1)
  • Operational manuals
  • Carrying bag
Fluke 1760 also include:
  • Voltage probes, qty 4 (600 V for INTL set, 1000 V for US set)
  • Current probes, qty 4 (Dual-range flexible current probes 1000 A / 200 A AC)
  • GPS time sync receiver

Fluke 1760TR Basic include: same as Fluke 1760 Basic and also:

  • Fast transient analysis up to 10 MHz

Fluke 1760TR include: same as Fluke 1760 and also:

  • Fast transient analysis up to 10 MHz


Recommended options

Industrial Test Leads, Probes and Clips


TPS VOLTPROBE 100V

Voltage Probe

TPS VOLTPROBE 10V

Voltage Probe

TPS VOLTPROBE 1KV

Voltage Probe

TPS VOLTPROBE 400V

Voltage Probe

TPS VOLTPROBE 600V

Voltage Probe

TPS VOLTPROBE 750V

Voltage Probe



Current clamps


TPS CLAMP 10A/1A

Clip-on Current Transformer

TPS CLAMP 200A/20A

Clip-on Current Transformer

TPS CLAMP 50A/5A

Clip-on Current Transformer

TPS FLEX 18

Flexible Current Probe

TPS FLEX 24

Flexible Current Probe

TPS FLEX 36

Flexible Current Probe

TPS SHUNT 20MA

Shunt 20mA AC/DC

TPS SHUNT 5A

Shunt 5A AC/DC





More products FLUKE

CURRENT CLAMP METER TRUE-RMS AC/DC FLUKE 374

• iFlex fexible current probe compatible
• 600 A AC and DC current measurement with fxed jaw
• 2500 A AC current measurement with iFlex (sold separately)
• 600 V AC and DC voltage measurement
• True-rms AC voltage and current
• 6000 O resistance measurement
• 1000 µF capacitance measurement



FLUKE 279 FC TRMS DIGITAL THERMAL MULTIMETER WITH TERMOVISION

• Full-featured multimeter with built-in thermal imager
• 15 measurement functions including: AC voltage with low-pass filter, DC voltage, Resistance, Continuity, Capacitance, Diode test, Min/Max/Avg, AC current (with iFlex), Frequency
• Image resolution-80 x 60
• 3.5 in /8.89 cm color LCD screen
• CAT III 1000 V, CAT IV 600 V measurement category



FLUKE 27 II HANDHELD MULTIMETER RUGGED IP67 INDUSTRIAL 4.5 DIGIT

• 4.5 digit
• 20,000 count resolution for precise measurements
• 0.05% basic accuracy
• New - IP 67 waterproof & dustproof protection, completely sealed for use in harsh environments



FLUKE TIS10 INFRARED CAMERA 80X60

• Fluke TiS10 80x60 pixels
• Fluke TiS20 120x90 pixels
• Fluke TiS40 160x120 pixels
• Fluke TiS45 160x120 pixels
• Fluke TiS50 220x165 pixels
• Fluke TiS55 220x165 pixels
• Fluke TiS60 260x195 pixels
• Fluke TiS65 260x195 pixels



FLUKE 190-104 190-104/S HANDHELD SCOPEMETER OSCILLOSCOPE 4X100 MHZ

• 4-channels isolated 100MHz
• CAT III 1000V / CAT IV 600V safety rated
• Dedicated 5000 Count digital multimeter in two-channel models
• Advanced automatic measurements, power (Vpwm, VA, W, PF) and time (mAs, V/s, w/s)
• IP-51 rated for dust and drip proof to withstand harsh environments
• Isolated USB ports for memory devices and PC connectivity



PRESSURE CALIBRATOR FLUKE 718

• Pressure Source and Milliamp Measurement
• Best in class mA accuracy of 0.015 %
• 1, 30, 100 & 300 PSI ranges available

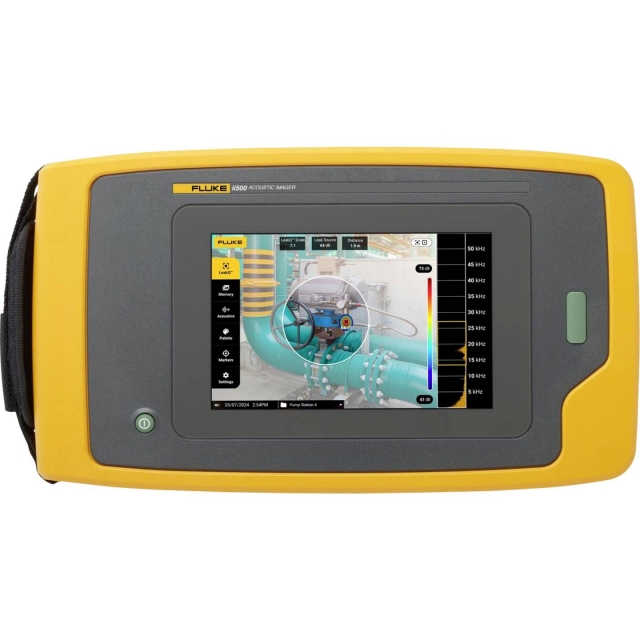

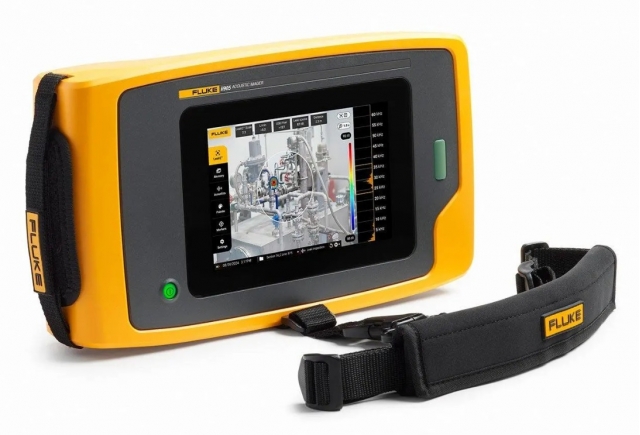

FLUKE II905 ACOUSTIC CAMERA IMAGER FOR INSPECTINA AND DETECTION COMPESSED AIR
