ESA710 Electrical Security Analyzer for testing medical equipments

Code: ESA710 ESA-710




Datasheet PDF, 0.65 Mb


Description

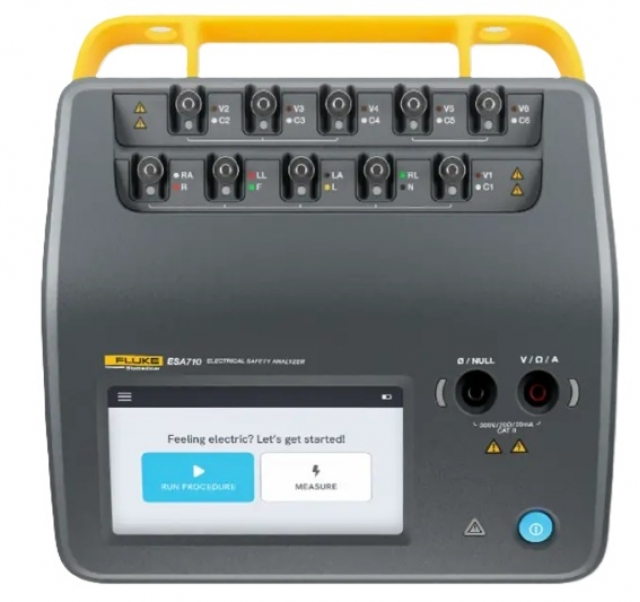

ESA710 Electrical Safety Analyzer
Our easiest-to-use electrical safety analyzer, ever.

Redefining automated testing in a compact format, the ESA710 Electrical Safety Analyzer is an essential tool for healthcare technology management professionals looking for portability without compromising functionality. This highfunctioning device enables users to perform from basic troubleshooting to comprehensive analysis, ensuring electrical safety testing on medical equipment complies with key electrical safety standards, such as ANSI/AAMI ES1 and NFPA 99, whether on-field or within facilities.

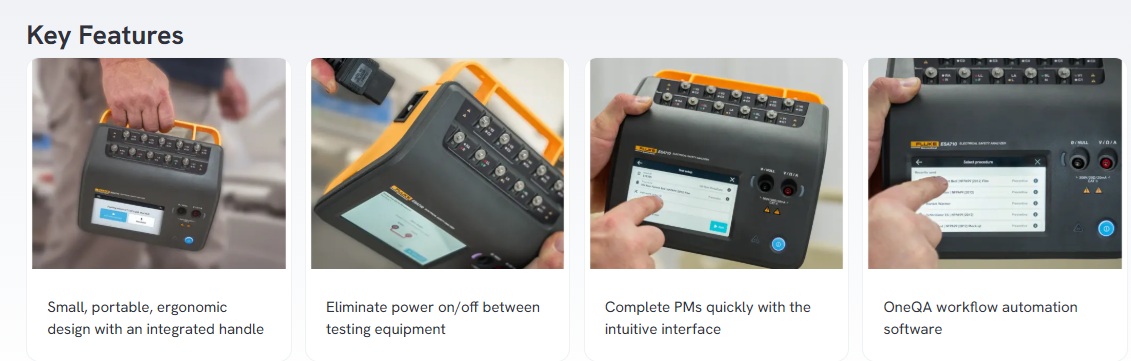

Key features
• 5” Touchscreen with intuitive user interface
• Small, portable, ergonomic design with an integrated handle
• OneQA-enabled workflow automation eliminates need for laptop
• Wireless capability allows you to run test procedures in the field and automatically sync results
• Ten applied parts posts with innovative LED lighting guidance (ECG & Banana)
• Insulation resistance from 50V, 100V, 250V and 500V
• On-board automation with automated test sequences for compliance to key electrical safety standards (ANSI/
AAMI ES1, NFPA 99)
• ECG waveform tests and dual-lead measurements combine the functionality of a simulator and safety analyzer in a single test tool
• Ability to upload pictures, instructions, and text to procedures
• Easy data entry through barcode scanner, external keyboard or on-screen keyboard
• 20 A at 120 V equipment current capability
• Replaceable mains fuses keep your unit in the field and
out of the repair shop
• Rigorously tested for rugged field applications with CE
and CSA in addition to Fluke-quality ruggedness for longterm reliability
• Enjoy precision, compliance, and total peace of mind
through our comprehensive service and coverage program, eliminating unexpected costs with our Protect+ Program
• Global support network delivering prompt service and peace of mind to Fluke Biomedical customers worldwide


Standard accessories

Ordering information
Models/descriptions

5577713 ESA710-US Electrical Safety Analyzer
6028740 ESA710-02-NA220 Electrical Safety Analyzer
6046116 ESA710-03-NEMA615 Electrical Safety Analyzer

Standard accessories
5517611 Getting started guide
5517610 OneQA quick guide
5579600 USB C to USB A cable
3111008 USA accessory kit: test lead set, TP1 test probe set, AC285 alligator clip set
2427138 Probe test banana jack 4MM tip black w/cap 175-290-001 EVZFTP74SW00
2099044 Probe test banana jack 4MM tip red w/cap 175-290-003 EVZFTP74RT00
3326842 Null post adapter
2248650 Carrying case
2238644 Power cord


Recommended options

Optional accessories
6078258 Barcode scanner
6078184 USB Wi-Fi dongle
