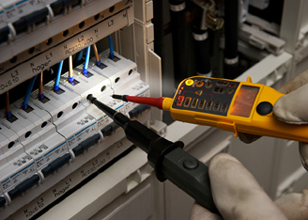

Voltage Continuity Tester Fluke T90/ T110/ T130/ T150

Code: Fluke T90/ T110/ T130/ T150




Datasheet PDF, 0.36 Mb


Description

Fluke’s two-pole voltage and continuity testers are built to work the way you work. They give you the best combination of safety, ease-of-use and fast answers available anywhere.



  • CAT IV 600 V, Cat III 690 V safety rating Fluke’s family of Two-Pole Voltage testers comply with both regulation HSE GS 38 (tip caps) and IEC EN 61243-3: 2010.
  • 4 ways to detect ac/dc voltage A clear, instantly visible LED indicator, a bright digital display of the measurement value, an audible continuity test, and vibration to give tactile feedback (vibration indicator on T110, T130, T150).
  • Backlit graduated scale and backlit indicators
  • Vibration provides tactile feedback (T110, T130, T150).
  • Audio on/off for testing in quiet areas.
  • Low battery indicator
  • Detects voltage even with discharged batteries
  • Improved probe docking for secure storage
  • Phase rotation indicator for 3-phase systems
  • RCD functionality
    Two-button controls allow you to draw more current from the circuit under test and intentionally trip Residual-Current Devices (RCDs) remotely
  • Display Hold (T130, T150)
  • Built in electric torch (T110, T130, T150)
  • Single-phase voltage offers fast identification of live conductors
  • Push-on probe tips, probe tip protector and storage accessory
  • Probe tip protector and storage accessory
    Tip protector serves as an extra hand when opening UK electrical safety outlets.
  • Resistance testing to 1999 ohms (T150)
  • WearGuard™ insulation shows damage to test leads





Specifications

T90

T110

T130

T150

Voltage AC/DC

12V - 690V

12V - 690V

6V - 690V

6V - 690V

Continuity

0 - 400 k?

Frequency

0 / 40 - 400 Hz

Phase rotation

-

100 V - 690 V

Resistance measurement

-

-

-

Up to 1999 ?

Response Time (LED indicator)

< 0.5 s

200 k? input impedance

Current draw 3,5 mA @ 690 V
Current draw 1,15 mA @ 230 V

7k ? input impedance (with load buttons pressed)

-

Current draw 30 mA @ 230 V

Safety rating

CAT II 690V
CAT III 600V

CAT III 690V
CAT IV 600V

IP rating

IP54

IP64

IP64

IP64



Standard accessories

Model Name

Description

Fluke T90

Voltage/Continuity Tester

Fluke T110

Voltage/Continuity Tester With Switchable Load

Fluke T130

Voltage/Continuity Tester With LCD, Switchable Load

Fluke T150

Voltage/Continuity Tester With LCD, Ohms, Switchable Load
