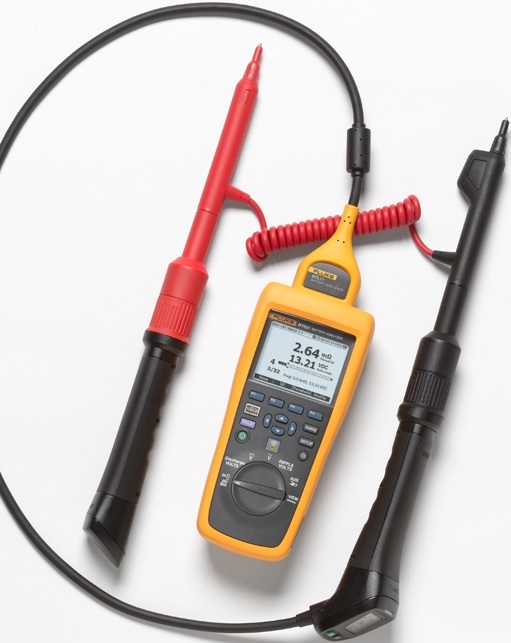

The Fluke 500 Series Battery Analyzer is ideal test tool for maintenance, troubleshooting and performance testing of individual stationary batteries and battery banks used in critical battery back-up applications. The intuitive user interface, compact design and rugged construction ensure optimum performance, test results and reliability. Fluke 500 Series Battery Analyzers cover a broad range of battery test functions ranging from DC voltage and resistance tests to full condition testing using an automated string function testing and the test probe integrated infra-red temperature measurement system. 500 Series Battery Analyzers are designed for measurements on stationary batteries of all types.

�

Key measurements:�Battery resistance, dc and ac voltage, dc and ac current, ripple voltage, frequency and battery temperature.
Sequence measurement mode:�Automatic or manual sequence testing of battery strings with automatic measurement storage including voltage, resistance and temperature (with BTL21 intelligent test probe).
Comprehensive logging:�All measured values are automatically captured during testing and can be reviewed on the instrument before downloading for on the-go analysis.
Optimized user interface:�Quick, guided setup ensures you're capturing the right data every time, and the combined visual and audio feedback cues reduce the risk of measurement confusion.
Threshold comparison:�Configure multiple reference values and thresholds for resistance and voltage. Comparison result feedback after each measurement via visual and verbal cues.
Ergonomic test leads:�Rugged coaxial two pole kelvin test pins with remote SAVE button reduce test time and increase efficiency.
Test probe extenders:�Long reach probes for double stacked cells.
Intelligent test probe set (BT520 and BT521):�Integrated LCD display, infrared temperature measurement (BT521 only), flashlight, verbal audio feedback and captures voltage readings and temperature logging automatically or via integrated save button.
Enhanced data analysis:�Quickly compare trends, analyze results and create reports with included battery management software.
Easy reporting:�Generate PDF report on the PC software with analysis graphics and data table or quick email format report with csv file on the mobile app.
Wireless communication:�For data download and remote display while measuring. Browse and email measurement data via iOS app.
Battery life:�7.4 V 3000 mAh lithium-ion battery for more than eight hours continuous operation.
USB port:�For fast data download to supplied data analysis and report management application software.
Highest safety rating in the industry:�CAT III 600 V, 1000 V dc max. rated for safe measurements all around the battery power supply equipment.

Standard accessories

Model Name	Description
Fluke BT510	Fluke BT510 Battery Analyzer Includes: Battery analyzer 4-wire test pin (set) BTL10 Basic Test Lead (set) TL175 TwistGuard™ Test Leads with adapter BP500 lithium-ion battery BC500 AC charger Mini-USB cable Shoulder strap Belt strap Magnetic hanging strap FlukeView® Battery Management Software Soft carrying case Spare fuses (2)
Fluke BT520	Fluke BT520 Battery Analyzer Includes: Battery analyzer 4-wire test pin (set) BTL10 Basic Test Lead (set) TL175 TwistGuard™ Test Leads with adapter L300 Attachable LED Flashlight (2) BTL20 Intelligent Test Probe Set, with extender (no temperature sensor) BP500 lithium-ion battery BC500 AC charger mini-USB cable Shoulder strap Belt strap Magnetic hanging strap FlukeView® Battery Management Software Soft carrying case Spare fuses (2) Battery tags
Fluke BT521	Fluke BT521 Advanced Battery Analyzer Includes: Battery analyzer 4-wire test pin (set) BTL10 Basic Test Lead (set) TL175 TwistGuard™ Test Leads with adapter L300 Attachable LED Flashlight (2) BTL21 Intelligent Test Probe Set, with extender and temperature sensor i410 AC/DC Current Clamp BP500 lithium-ion battery BC500 AC charger Mini-USB cable Shoulder strap Belt strap Magnetic hanging strap FlukeView® Battery Management Software Soft carrying case Spare fuses (2) Battery tags

Recommended options

�

Test Probes
Fluke BTL20	Sonda de testare pentru analizor de baterii interactiv
Fluke BTL21	Sonda de testare pentru analizor de baterii interactiv cu senzor de temperatura

�

Batteries, Chargers and Adapters
Fluke BC500	Încarcator alimentare cu c.a.
Fluke BP500	Baterie litiu-ion de 3000 mAh
Fluke C500S	Cutie moale de transport (mica)

�

Cases and Holsters
Fluke BTL-A	Adaptor sonda de tensiune/curent
Fluke C500L	Cutie moale de transport (mare)

�

Current Clamps
i410	Cleste de curent CA/CC i410

�

Test Leads
Fluke BTL10	Borne de testare pentru analizor de baterii de baza
