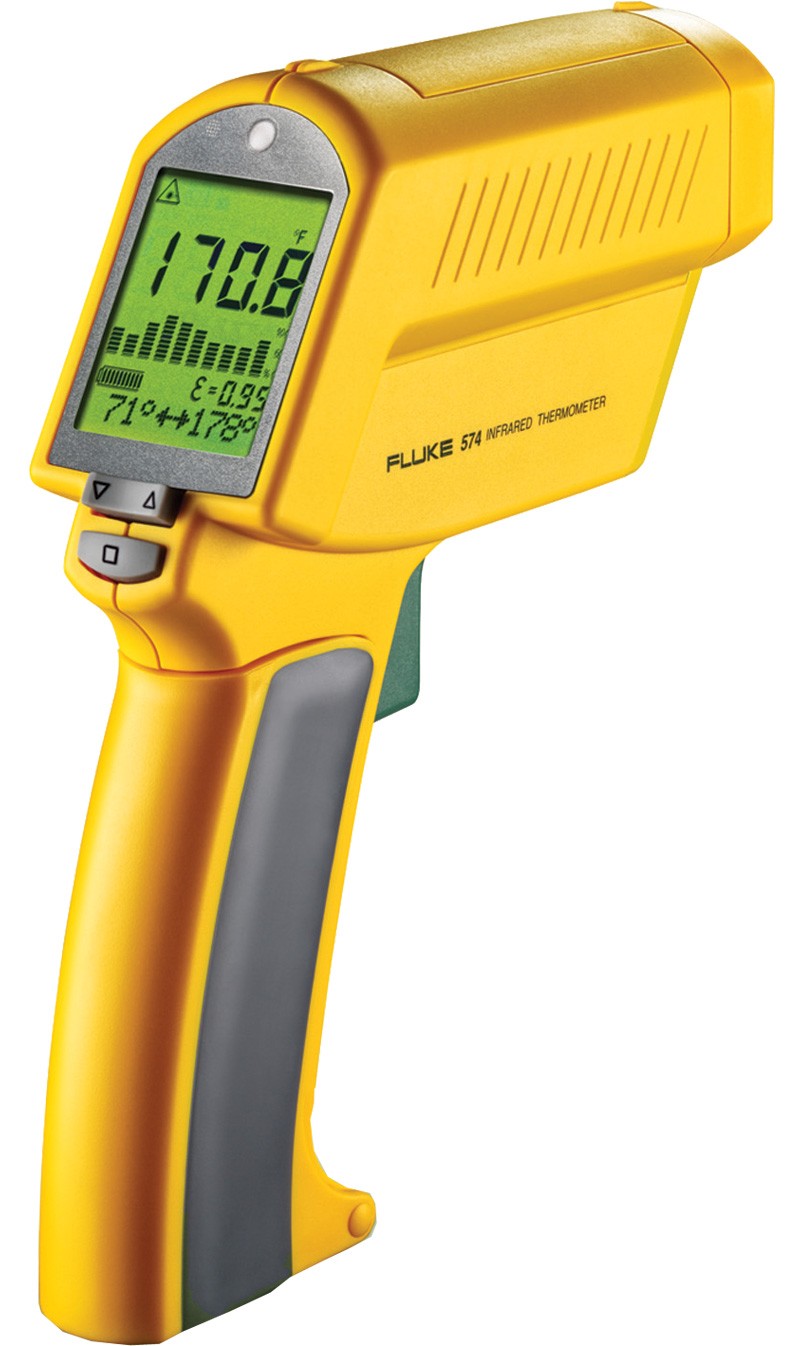

Precision Infrared Thermometer Fluke 574

Code: Fluke 574, Fluke 574CF




Datasheet PDF, 0.26 Mb

Description

The Fluke 570 non-contact thermometers are ideal professional diagnostic tools for maintenance professionals requiring the most accurate temperature readings at all distances. The Fluke 570 series infrared (IR) measures surface temperatures, helping to quickly locate lubrication problems, overloads, short-circuits or misaligned and overheated equipment, reducing work and follow-up time, and improving performance.

From close-up electrical connections, to distant room balancing checks, the Fluke 570 series can take IR temperature measurements with ease. Predictive maintenance professionals requiring analysis and documentation use the 574 model with 100-point data logging and included software for graphing and analysis for follow-up reporting and documentation.



  • Backlit display for poorly lit areas
  • Last ten temperature readings displayed on bar graph for easy reference
  • Enhanced optics (distance to spot ratio up to 60:1) allow measurements of smaller objects from farther away
  • Coaxial three-dot laser sighting system highlights the true diameter of measurement spots at all distances (90% energy)
  • Extra bright appearing 635nm laser (tested to the same safety and power standards as less bright laser sights) to clearly highlight the targeted area
  • Close-focus option available for specialized applications
  • MIN/MAX measurements calculations instantly computed
  • Audible and visible HI temperature alarm for instant recognition
  • Comfortable, overmolded pistol grip makes target sighting easy
  • Adjustable emissivity setting (.01 increments) for more accurate measurement
  • Durable hard plastic storage case included
  • DIF/AVG measurement calculations instantly computed
  • 100 temperature data logging capability for easy route review
  • 30 pre-set common material emissivity values for most accurate temperature readings
  • Audible and visible HI and LO temperature alarm for instant recognition
  • Thermocouple K probe input for contact temperature measurements with same unit
  • Customizable log names, alarms, and emissivity values for more efficient, less error-prone predictive maintenance routes
  • Windows-based (Windows NT/ 2000/XP) software for data storage and analysis
  • Software to log, graph, and analyze temperature data via RS232 connection



Standard accessories

Fluke 574 Precision Infrared Thermometer
Includes:

  • Durable hard case
  • Thermocouple K probe
  • Power supply
  • RS232 data cable
  • Data graphing, storage, and analysis software
  • 2 AA batteries







Fluke 574CF Precision Infrared Thermometer Close Focus
Includes:

  • Standard Fluke 574 accessories
  • Close Focus Option available for specialized applications, such as electrical components, features minimum measurement diameter 6mm (0.24") and Distance to Spot (D:S): 50:1


Recommended options

Temperature

80PK-11

80PK-11 Type-K Flexible Cuff Thermocouple Temperature Probe

80PK-27

80PK-27 Industrial Surface Probe

80PK-8

80PK-8 Pipe Clamp Temperature Probe (Type K)
