The new GasCam^® SG model offers you a significantly lighter and more compact system. As a highly specialised system for the detection of methane, it is the ideal choice for the detection of leaks in biogas and natural gassystems. Methane can be detected reliably even from distances of up to 100 metres, and is displayed against the background as a coloured gas cloud in real time.

Inspect natural gas and biogas plants for thightness and methane emissions more quickly

The question of whether natural gas or biogas plants are safe or not largely depends on whether they are leakproof. Unknown and undiscovered gas escapes in natural gas and biogas plants thus pose a great danger. The methane contained in these gases can not only turn into an ignition hazardous mixture with the ambient air, but is also a greenhouse gas which is 22 times stronger than CO². Therefore, leaks in gascontaining plants must be determined quickly and precisely in order to ensure the plant’s safe operation. Up to now, it has been very troublesome and above all time-consuming and cost-intensive to down gas escapes by using conventional flame ionisation or semiconductor gas detectors. The search for leaks can now be conducted much more quickly. This is enabled by the GasCam^® SG from Esders, a mobile infrareddetector measuring unit, which diagnoses gas clouds at gas containing plants in real time and immediately provides the user with a colour moving images of the escaping methane cloud. GasCam^® SG can be up to100 metres away from the object being measured. The measurement system�s big benefit: leaks are discovered immediately and the point of escape is located.

Features:

Infrared Lens
Detector unit
Lithium-ion rechargeable battery packs
Tripod with swivel/tilt head
High performance Notebook

More products ESDERS

ESDERS VAKUMOBIL

• The Esders Vakumobil has a markedly improved suction power compared to conventional technology.
• The low pressure in the surface generated by one suction probe has an impact over several metres.
• This creates only a movement or distortion of the gas accumulation but not there elimination.

ESDERS SAFE ETHANTEST

• Taking the service box to the measurement site
• Activate device and connect sensor
• Feed sensor into sensor hole and start analysis at the touch of a button
• SAFE absorbs a gas sample and displays its concentration in vol.%
• The gas sample passes through the chromatographic column and the display of methane and ethane (if applicable) takes place

ESDERS SINGLE GAS

• Operational life of two years
• Full factory warranty throughout the life of 24 months
• Measurement of H2S, CO and O2 ensures the safety of the worker
• Reduces training time
• Loud audible alarm, bright visual alarm, vibrating alarm

ESDERS VIBRAGAS EX

• Easy replacement of batteries with innovative battery Management
• Systematic evaluation of the measured data using Esders PC-1 software
• Graphical printout on site on mobile printer
• Simple operation with intuitive menu navigation
• Practical accessories for all applications

ESDERS GOLIATH GAS ANALYZER

• Time-tested Esders operation concept.
• Very quick initial break-in phase after being switching on or changing application.
• Extremely short reaction times when measuring CH4 and CO2 in all concentrations.
• Oxygen and up to 3 toxic gas sensors are available as an option.
• Ethane analysis with automatic measurement result assessment can be integrated.
• Optional pressure measuring up to 2,000 hPa.

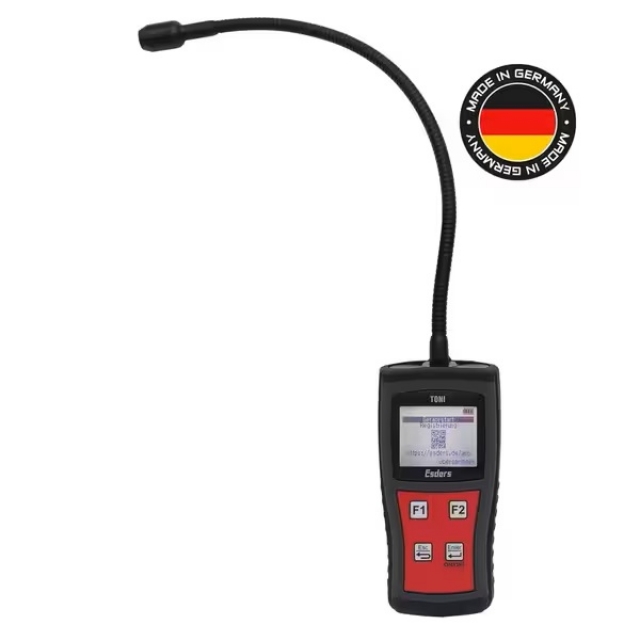

ESDERS TONI GASTEST CH4 GAS LEAK DETECTOR WITH SENSOR ON THE GOOSENECK

• Measurement range: 0 - 10.000 ppm methane
• Very fast response time
• Robust, hand-held with IP64 protection
• vibration alarm and digital display
• Made in Germany

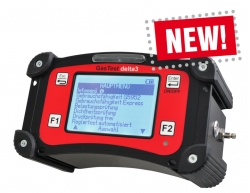

ESDERS GASTEST DELTA3 GAS TESTER ACCORDING DVGW-TRGI 2008

• Usability test in accordance with G5952 or Esders express procedure
• Leak detection via external, digital hand sensor with integrated calibration and vibration alarm
• Automatic and manual test on controllers and safety valves
• Leak test with 150 mbar, strength test with 1 bar
• Pressure measurement up to 25 bar via external sensors

ESDERS VACUUM-PROBES-SYSTEM VSS 15

• Complete with connection cable and metal plug
• Stainless steel design with coarse filter and integrated water barrier
• Complete with connection cable and metal bush

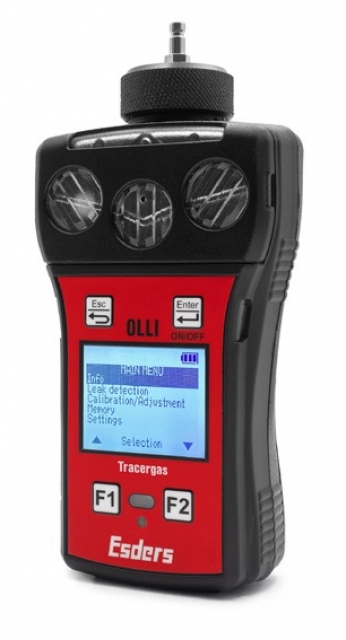

ESDERS OLLI GAS DETECTOR AND WARNING DEVICE FOR GAS LEAKS FOR INDOOR AND OUTDOOR WITH ATEX EXPLOSION PROOF

• Explosion-proof measuring device, Marking ATEX
• Up to three gas sensors can be installed (Ex/Ox/Tox)
• can optionally be equipped with a Li-ion battery pack, pump and pressure measurement

ESDERS GOLIATH BIOGAS ANALYZER

• Use of infrared sensors for CH4 and CO2 guarantee fast run-in period and extremely short response times and exclude cross-sensitivities to other gases.
• An oxygen and a hydrogen sulphide sensor are offered as an option.
• The measurement range for H2S is 0 to 2,000 ppm and cover the requirement for measurements at biogas plants ideal.
