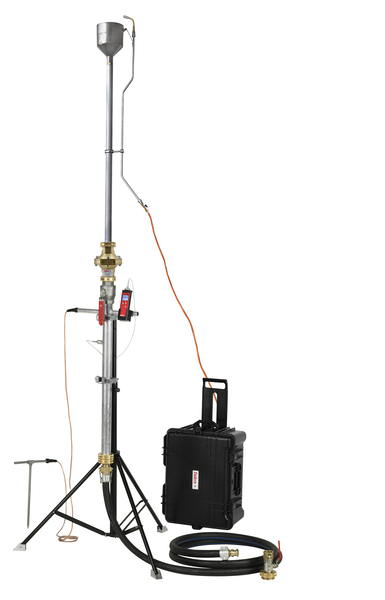

The gas testing standpipe is a proven tool in the gas supply field that is used to test pressure, as well as for the filling and commissioning of gas lines.

The recommendation of the German Technical and Scientific Association for Gas and Water (DVGW) is to fill the lines with a speed between 3 and 7 m/s in the pipe applies for the purging of the line. We now offer a practice-oriented solution for this task. A measuring tube equipped with an inner Pitot tube is used and connected with the GOLIATH gas measurement device for the evaluation.

The GOLIATH Option v is equipped with a differential pressure sensor with which the static and dynamic pressure in the Pitot tube is determined. The user, prompted by the menu, enters the diameter of the main pipe and its length. The speed in the main pipe, the estimated time required for the purging and the elapsed filling time, as well as the gas concentration then appear in the GOLIATH display.

EVERYTHING FROM ONE SOURCE!
Our solution thus meets all requirements in keeping with the DVGW rules.

Features:

Practical system with wide application
Easy adaptation to many thread sizes, drilling saddles and fittings -directly or via electrically conductive tube
Rapid extraction of gas by using the Venturi nozzle
Flame arrestor for burning off the gas safely

More products ESDERS

ESDERS GASTEST DELTA3 GAS TESTER ACCORDING DVGW-TRGI 2008

• Usability test in accordance with G5952 or Esders express procedure
• Leak detection via external, digital hand sensor with integrated calibration and vibration alarm
• Automatic and manual test on controllers and safety valves
• Leak test with 150 mbar, strength test with 1 bar
• Pressure measurement up to 25 bar via external sensors

ESDERS SAFE ETHANTEST

• Taking the service box to the measurement site
• Activate device and connect sensor
• Feed sensor into sensor hole and start analysis at the touch of a button
• SAFE absorbs a gas sample and displays its concentration in vol.%
• The gas sample passes through the chromatographic column and the display of methane and ethane (if applicable) takes place

ESDERS VAKUMOBIL

• The Esders Vakumobil has a markedly improved suction power compared to conventional technology.
• The low pressure in the surface generated by one suction probe has an impact over several metres.
• This creates only a movement or distortion of the gas accumulation but not there elimination.

ESDERS VIBRAGAS

• Rugged hand-held instruments with ergonomic aluminum housing
• Wide range of applications in the gas installation
• Powerful gas detector with vibration alarm and digital display reading for gas leak detection
• High contrast LCD display with backlight for an optimal presentation of all measured values

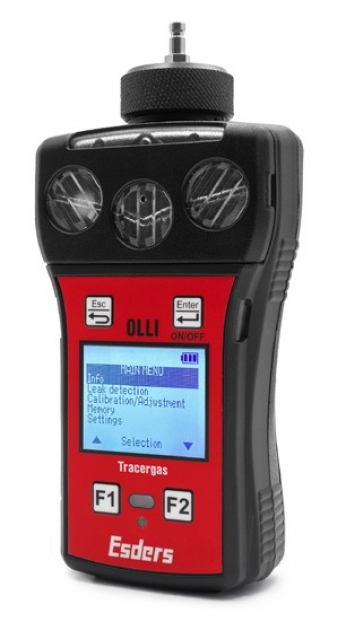

ESDERS OLLI GAS DETECTOR AND WARNING DEVICE FOR GAS LEAKS FOR INDOOR AND OUTDOOR WITH ATEX EXPLOSION PROOF
