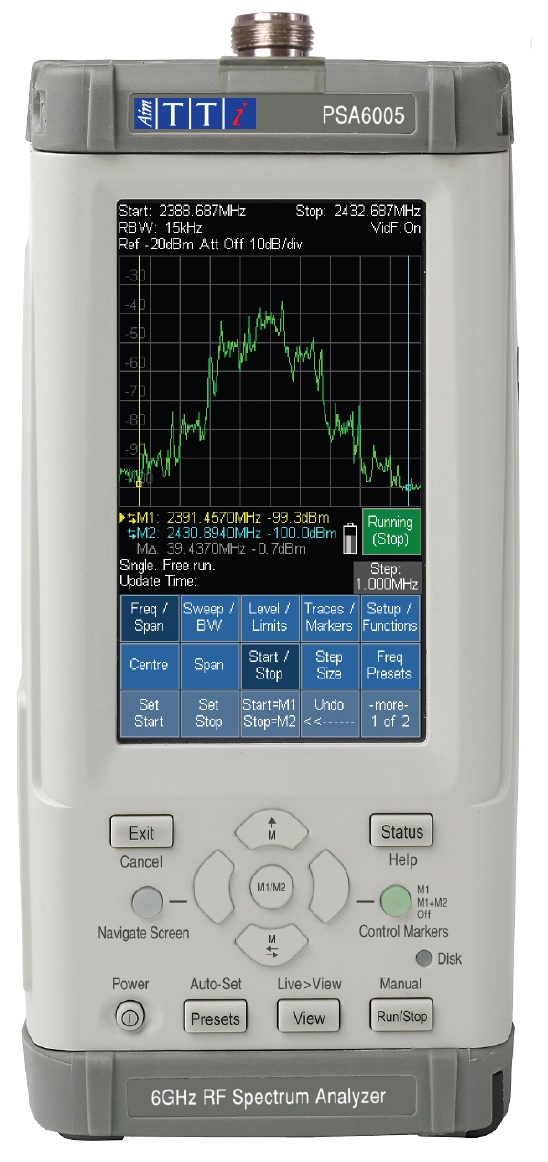

Analizor spectral portabil 10..6000MHZ TTi PSA6005

Cod: TTi PSA6005 PSA6005USC




Brosura produs PDF, 2.45 Mb

Descriere

  • 10MHz to 3600MHz or 6000MHz frequency range
  • Resolution bandwidths from 300Hz to 10MHz (1:3:10)
  • -120dBm typical noise floor at -40dBm ref. level/10kHz RBW
  • Measurement in dBm or dBuV, mV or uW
  • Zero span mode with AM and FM audio demodulation
  • Trace modes of normal, peak hold and trace average
  • Live, View and Reference traces in contrasting colours
  • Twin markers with readout of absolute & difference values
  • Smart marker movement with selectable peak tracking
  • Frequency counter with down to 10Hz resolution
  • Frequency presets and independent state storage
  • Auto-find automatically sets sweep parameters for the highest signal found
  • Unlimited storage for waveforms, set-ups and screens
  • User assignable file names, file stamping from real-time clock
  • USB interfaces for Flash drives and PC connection
  • Comprehensive status and context sensitive help screens
  • More than 3 hours continuous operation from a charge
  • Smaller and lighter than other spectrum analyzers (weight only 0.56 kg)



** Additional features - with option U02:-

  • High Resolution Scan Mode - up to 210,000 points with pan and zoom
  • Limit lines and limit patterns with limits comparator
  • Data logging of peak values, complete traces or screen images from timer, external trigger or limits comparator
  • Automatic Measurements for CP, ACPR and OBW
  • Waveform demodulation for AM and FM signals
  • Sweep triggering from external trigger or limits comparator
  • Compensation tables, fixed offsets and 75R compensation
  • Custom Presets - fast change for repetitive setups
  • Capability to show screen contents on a PC







PSA6005USC

Handheld RF Spectrum Analyzers 6.0GHz Spectrum Analyzer with Option U02, Case and Accessories

PSA6005

Handheld RF Spectrum Analyzers 6.0GHz Spectrum Analyzer

PSA3605USC

Handheld RF Spectrum Analyzers 3.6GHz Spectrum Analyzer with Option U02, Case and Accessories

PSA3605

Handheld RF Spectrum Analyzers 3.6GHz Spectrum Analyzer







Accesorii standard

Supplied Items

Standard Product

PSA3605 or PSA6005 spectrum analyzer.Universal voltage mains adaptor/charger.USB connection lead.Spare stylus.BNC converter for trigger input.Multi-language Short Guide.Full users manual (English only).Support CD containing PDF versions of manuals and support software.



USC Product

All of the ‘standard product’ items are supplied plus the following:

Firmware Upgrade U02 (installed)Telescopic Antenna PSA-ANT2Vehicle Charger PSA-VCTravel Case PSA-SC2
