Meet our versatile front line networks technician's tester for troubleshooting and maintenance of active and passive networks across both copper and fibre, helping to pinpoint and solve networking issues quickly.

As a powerful LAN management tester for installers and IT or facilities maintenance professionals working in any enterprise, residential, campus or industrial Ethernet environment, NaviTEK II saves money and increases efficiency by simplifying and accelerating network troubleshooting using a single multifunction device.

Suitable for copper and fibre
Eliminate the need to purchase and carry multiple different testers by using one device to conduct active and passive testing across both copper and fibre networks

Wiremapping by pin as well as pair
Save time on the job and locate wiremap faults more quickly and accurately by testing via both pin and pair, detecting split pairs and identifying the distance to fault

Additional Ethernet troubleshooting capabilities
Maximise Return on Investment with the added ability to identify Ethernet and Power over Ethernet (PoE) issues, in addition to verifying Ethernet connectivity

Support for IPv6 and PoE
NaviTEK II supports both IPv4 and IPv6 internet addresses, as well as PoE, making it a future-proof investment

Reporting of test results
Simplify customer reporting and create accurate documentation on jobs undertaken using NaviTEK II to generate and store test results in standards compliant XML format. Additionally, view and export results to enable report printing

802.1x compatibility
Log onto networks secured by this protocol, avoiding unnecessary security complications and lengthy project delays

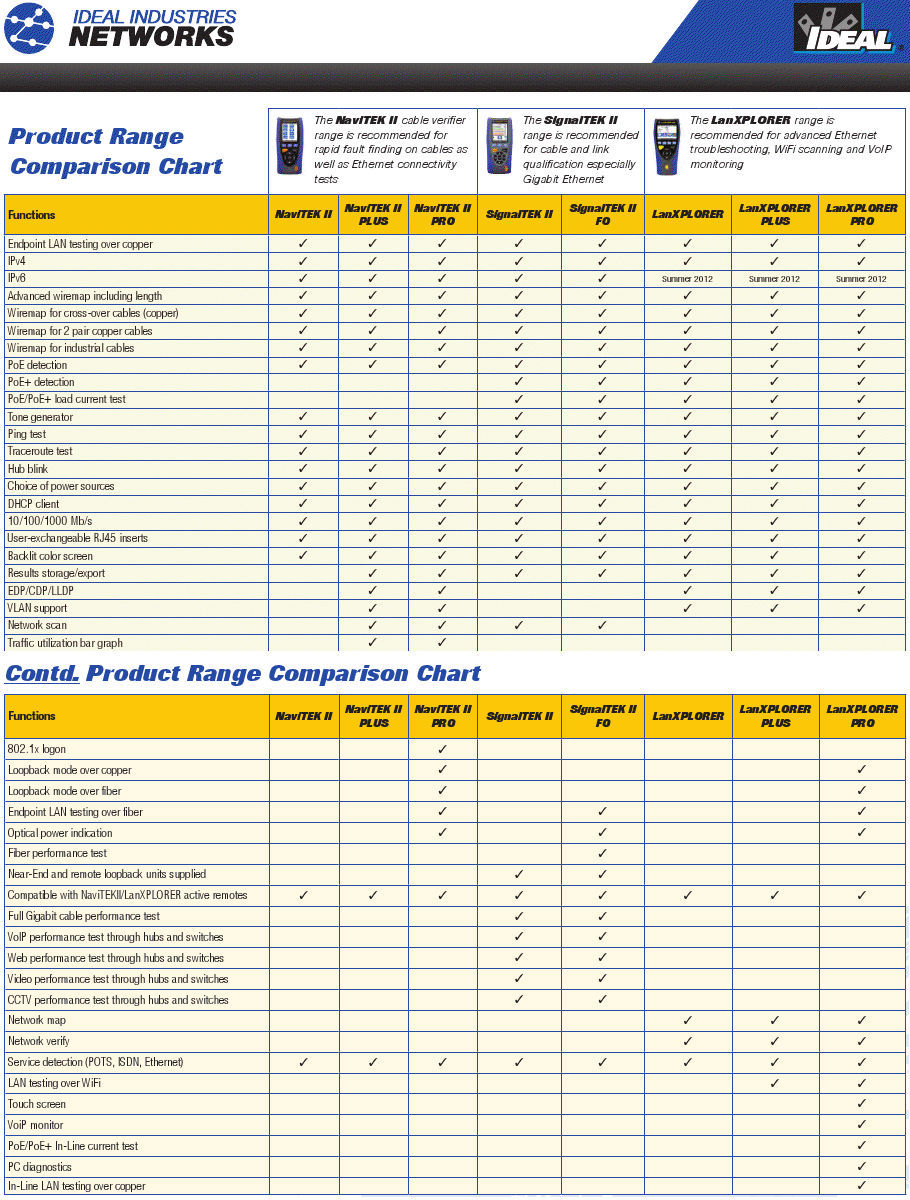

Functions NaviTEK II NaviTEK II PLUS NaviTEK II PRO

Endpoint LAN testing over copper ? ? ?

IPv4 ? ? ?

IPv6 ? ? ?

Advanced wiremap including length ? ? ?

Wiremap for cross-over cables (copper) ? ? ?

Wiremap for 2 pair copper cables ? ? ?

Wiremap for industrial cables ? ? ?

PoE detection ? ? ?

Tone generator ? ? ?

Ping test ? ? ?

Traceroute test ? ? ?

Hub blink ? ? ?

Choice of power sources ? ? ?

DHCP client ? ? ?

10/100/1000 Mb/s ? ? ?

User-exchangeable RJ45 inserts ? ? ?

Backlit colour screen ? ? ?

EDP/CDP/LLDP ? ?

VLAN support ? ?

Network scan ? ?

Traffic utilisation bar graph ? ?

Results storage/export ? ?

802.1x logon ?

Optical power indication ?

Loopback mode over copper ?

Loopback mode over fibre ?

Endpoint LAN testing over fibre ?

Accesorii standard

NaviTEK II is available in three models with specifications to meet all user needs

NaviTEK II Entry model facilitates LAN testing over copper networks and includes functionality for detecting PoE

R153000 NaviTEK II

1 x NaviTEK II test unit,

1 x Remote unit No. 1,

4 x AA dry cell batteries (non-rechargeable),

2 x Patch cables - 30cm, Cat. 5e STP,

1 x Manual on CD,

1 x Quick reference guide,

1 x Carrying case

NaviTEK II PLUS

Introduces additional testing capabilities, including support for VLAN and storage for test results

R151000 NaviTEK II PLUS

1 x NaviTEK II PLUS test unit,

1 x Remote unit No. 1,

2 x Patch cables - 30cm, Cat. 5e STP,

1 x Rechargeable Power Module,

1 x PSU with UK/EU/US adaptors,

1 x Manual on CD,

1 x Quick reference guide,

1 x Carrying case

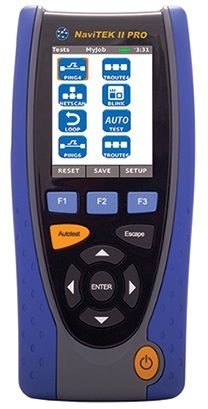

NaviTEK II PRO

Fully featured solution, suitable for copper and fibre networks
R151002 NaviTEK II PRO - Premium kit

1 x NaviTEK II PRO test unit,

1 x Remote unit No. 1,

2 x Patch cables - 30cm, Cat. 5e STP,

1 x Rechargeable Power Module,

1 x PSU with UK/EU/US adaptors,

1 x Manual on CD,

1 x Quick reference guide,

1 x Carrying case

Optiuni recomandate

Optional Accessories

150054 1 x Active remote No. 1

150050 1 x Active remote set No. 2 - 12

151053 1 x NiMH power module

150055 2 x Patch cables - 30cm, Cat. 5e STP

151051 1 x Power supply with EU/UK/US adaptor

151052 Alkaline battery module

MGKSX1

1 x 1000BASE-SX Fibre kit. Includes 850nm SFP (Small Form factor

Pluggable) SX transceiver, LC/LC and LC/SC duplex multimode

cables and SC/SC duplex adaptor

MGKLX2

1 x 1000BASE-LX Fibre kit. Includes 1310nm SFP (Small Form

factor Pluggable) LX transceiver, LC/LC and LC/SC duplex

singlemode cables and SC/SC duplex adaptor

MGKZX3

1 x 1000BASE-ZX Fibre kit. Includes 1550nm SFP (Small Form

factor Pluggable) ZX transceiver, LC/LC and LC/SC duplex

singlemode cables and SC/SC duplex adaptor

62-164 1 x IDEAL amplifier probe

33-963-10 1 x Fibre cleaning pen for SC, ST and FC adaptor

33-963-11 1 x Fibre cleaning pen for LC and MU adaptor

150056 1 x Optical fibre multimode 2m duplex cable with LC-LC connectors

150057 1 x Optical fibre singlemode 2m duplex cable with LC-LC connectors

150059 1 x Active remote set No. 2 to No. 6

151054 1 x Carry case

150058 1 x RJ45 insert extraction tool, 10 x Lifejack RJ45 inserts

Alte produse TREND NETWORKS

SURSA FIBRA OPTICA IDEAL INDUSTRIES 33-929 FIBERMASTER

• 850, 1300/1310, 1550 MM/SM light source meter
• Includes FC adapters
• Power LED - lights green when light source is active
• Docks in the bottom of the power meter for easy storage
• Operates on standard AAA batteries, (3)
• Low battery indication

TESTER RETELE CABLU LAN, WIFI SI FIBRA OPTICA IDEAL INDUSTRIES LANXPLORER PRO PREMIUM

• Optical Fibre: Singlemode and Multimode SFP options
• WIFI: Display of numbers of access points, available SSIDs, channels used and signal strength
• Generation of wiremaps
• Length measurement
• Recognition of PoE and PoE+ voltage
• Support of 10/100/1000 Ethernet
• Automatical DHCP recognition
• Variable Ping function for URL and IP adresses

KIT TESTARE FIBRA OPTICA: POWERMETRU + SURSA LUMINA IDEAL INDUSTRIES 33-931 FIBERMASTER

• Power Meter: 850, 1300/1310, 1490 and 1550 nm measurements
• Light Source: 850 /1300nm (LED) as well as 1310/1550nm (Laser)

POWERMETRU FIBRA OPTICA IDEAL INDUSTRIES 33-927 FIBERMASTER

• 850, 1300/1310, 1490 and 1550 wavelength measurement capability
• Power measurement in dBm and mW,
• loss display in dB
• Auto Power Off
• Includes universal adapter
• Operates on standard AAA batteries, (3)

TESTER RETELE CABLU LAN SI WIFI IDEAL INDUSTRIES LANXPLORER PLUS

• WIFI: Display of numbers of access points, available SSIDs, channels used and signal strength
• Generation of wiremaps
• Length measurement
• Recognition of PoE and PoE+ voltage
• Support of 10/100/1000 Ethernet
• Automatical DHCP recognition
• Variable Ping function for URL and IP adresses

KIT TESTARE FIBRA OPTICA: POWERMETRU + SURSA LUMINA IDEAL INDUSTRIES 33-928 FIBERMASTER

• Power Meter: 850, 1300/1310, 1490 and 1550 wavelength measurement capability
• Light Source: 850 nm light source (33-928 kit)

TESTER CABLU VOCE VIDEO IDEAL INDUSTRIES VDV II PLUS R158002

• Coax, 6Pin (RJ11/12), 8Pin (RJ45) Connectors for Copper Cable Testing
• Wiremap for Miswires, Split Pairs, Shorts and Opens
• Analog Tone Generator
• Voltage Protection
• Shielded Cable Testing
• Single Screen Results
• Larger 2.9" Display
• Backlight
• Hub Blink
• Cable Length
• Distance to Open

TESTER TRANSMISII DATE GIGABIT IDEAL INDUSTRIES SIGNALTEK CT

• Cartografiere avansata a retelei folosind TDR
• Efectuarea testului de performanta Gigabit conform standardului IEEE802.3ab
• Generarea automata de rapoarte in format PDF.
• Incarcarea rapoartelor pe stick USB direct, fara necesitatea utilizarii unui PC/Laptop.

TESTER RETELE CABLU LAN ETHERNET POE+ IDEAL INDUSTRIES LANXPLORER

• Generation of wiremaps
• Length measurement
• Recognition of PoE and PoE+ voltage
• Support of 10/100/1000 Ethernet
• Automatical DHCP recognition
• Variable Ping function for URL and IP adresses
• Trace Route function

SURSA LUMINA ROSIE LOCALIZARE VIZUALA DEFECTE IN FIRBA OPTICA IDEAL INDUSTRIES VFF5

• Finds Breaks, Faulty Splices and Crimps Poor Components or Connections
• Low-Cost, Basic Fiber Test Tool
• High Output, Class 2, 670nm Laser Diode
• Includes Carrying Case, Lens Cap, Batteries, Lanyard, and Instruction Sheet,
• Rugged, Rubber Coated Metal Housing
• 2.5mm Universal Adapter

Tester instalatii si mentenanta retele cablu LAN Ethernet si VLAN Ideal Industries NaviTEK II PLUSPRODUS OBSOLET ( * SCOS DIN UZ )

Tester instalatii si mentenanta retele cablu LAN Ethernet si VLAN Ideal Industries NaviTEK II PLUS
PRODUS OBSOLET ( * SCOS DIN UZ )
