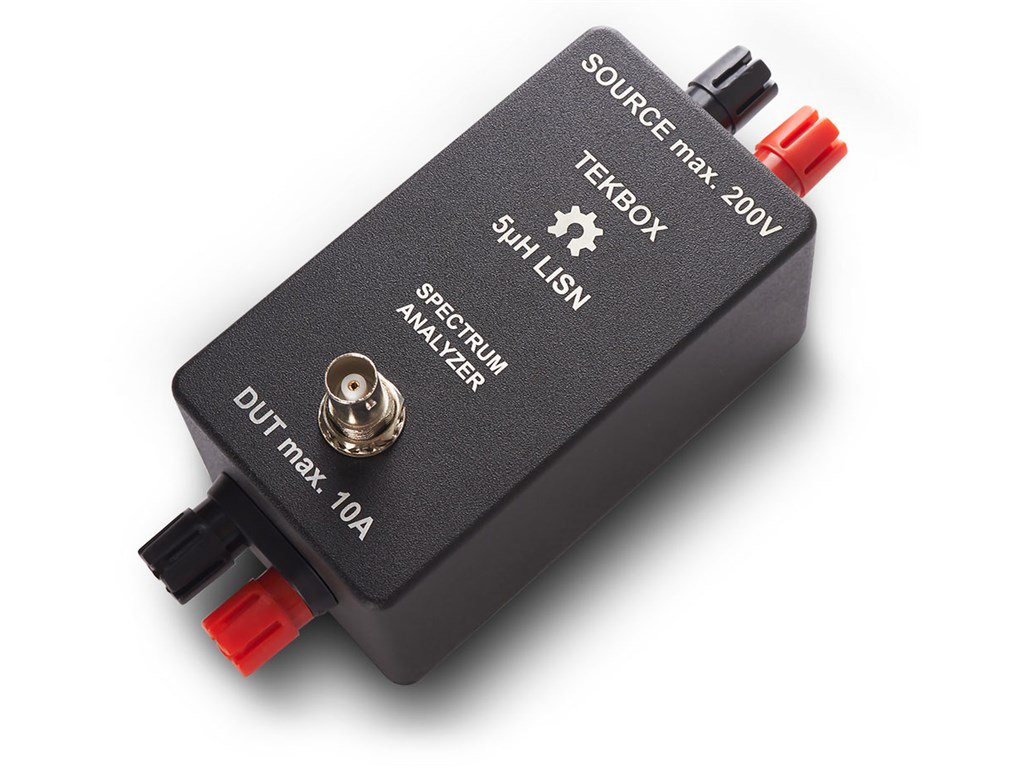

The LISN is inserted into the supply line of the DUT (Device Under Test). Conducted noise which is present at the supply terminals of the DUT can be measured at the BNC connector using a spectrum analyzer or a measurement receiver.

The source (supply) terminal and the DUT terminal are decoupled by a 5½H inductor.

Features:

Frequency range: 100kHz ½ 110MHz (1GHz, see figure 4 in the manual)
DC Resistance: 40 mO
Maximum current: 10A
Nominal operating voltage range: 0 ½ 60V DC *
