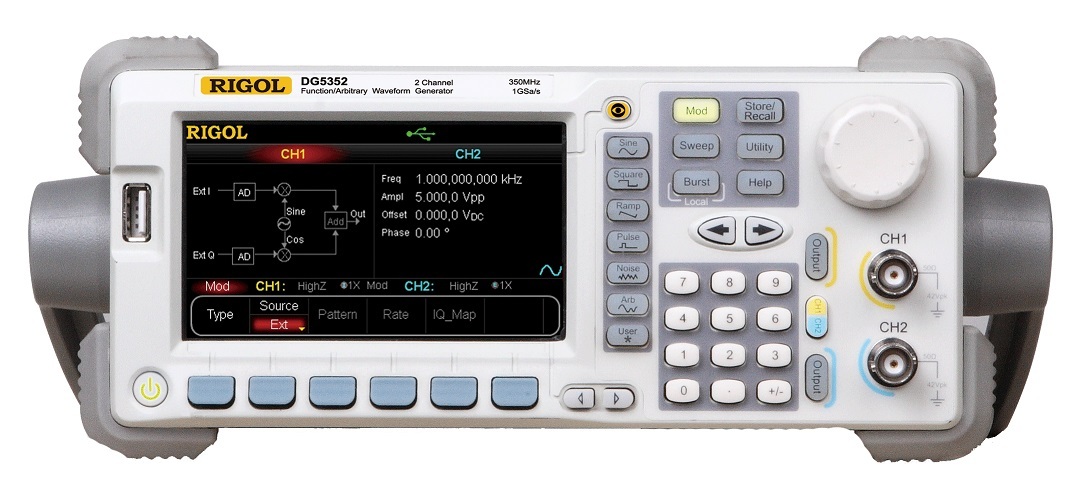

Rigol DG5351 DG5352 Generator semnale arbitrare 350MHz

Cod: Rigol DG5351 DG5352


Brosura produs 1 PDF, 1.21 Mb

Descriere

Modele



DG5352          350 MHz, 2 ch, 14 bit

DG5351          350 MHz, 1 ch, 14 bit

DG5252          250 MHz, 2 ch, 14 bit

DG5251          250 MHz, 1 ch, 14 bit

DG5102          100 MHz, 2 ch, 14 bit

DG5101          100 MHz, 1 ch, 14 bit

DG5072          70 MHz, 2 ch, 14 bit

DG5071          70 Mhz, 1 ch, 14 bit





DG5000 is a multipurpose generator combining different capabilities including Function Generation, Arbitrary Waveform Generation, IQ Baseband Source/IQ IF Source, Frequency Hopping Source (optional) and Pattern Generation (optional). With single and true, independent, dual-channel models that provide adjustable phases between the two channels. The DG5000 adopts Direct Digital Synthesizer (DDS) technology, which providing stable, precise, low distortion signals. The user-friendly interface design and panel layout improves efficiency or utilize an interface for complete programmability.



  • Generators up to 350 MHz
  • 1 GSa/Sec waveform output
  • 14 bit vertical resolution
  • 128 Million Points of Arbitrary Waveform Memory
  • Built in standard modulations including IQ modulation for digital baseband generation including QPSK and QAM formats
  • Standard Interfaces including LXI-C (Ethernet), USB device and host, and GPIB
  • Options including output amplifier (PA-1011) and frequency hopping capability

Model

DG5352

DG5351

DG5252

DG5251

DG5102

DG5101

DG5072

DG5071

Channels

2

1

2

1

2

1

2

1

Frequency

350 MHz

250 MHz

100 MHz

70 MHz

Sample Rate

1 GSa/s

Waveform Length

Up to 128 Million points

Resolution

1 µHz

Amplitude range

5 mVpp - 10 Vpp(50 O),10 mV - 20 Vpp(into open circuit)

Vertical Resolution

14 bits

Standard Interface

USB Host(2),USB Device,GPIB,LXI-C (Ethernet)

Options

Hop Frequency Module,Logic Signal Output Module,Power Amplifier

Weight

10 lbs.
