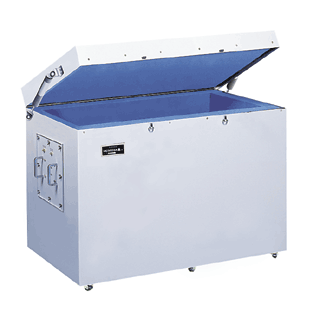

Equipped with the radio wave absorber covering 800MHz/900MHz frequency band
Optimum for wireless system test for technical standard, receiving sensitivity test and simple
EMC test of a wide frequency band

Outside dimensions (approximate)
1500(W)�1100(H)�900(D)mm
?excluding projections

Inside dimensions (approximate)
1200(W)�600(H)�600(D)mm

Connectors
SMA 3pcs
(reference side 1pc, receiving side 2pcs)
25pins D-sub connectors 1pc

Structure
Double structure composed of radio wave
absorbe and aluminum plate

Shielding characteristics
60dB@800MHz
60dB@2.4GHz

Reflection loss
more than 20dB at @600MH
