MegiQ RMS-0740 Sistem masura radiatii electromagnetice

Descriere

The MegiQ Radiation Measurement System (RMS) is a compact test system that performs 3-axis radiation pattern measurement in non-anechoic spaces. With a frequency range of 600MHz to 4GHz or 6GHz it is well suited for characterization and measurement of Antenna Radiation Patterns, Antenna Gain, ERP, TRP, Field Strength. Extensive evaluation has shown that - with proper setup - the accuracy of the RMS is similar to that of anechoic test labs. Characterize wireless devices of today, like IOT devices, routers, phones, domotica products, electronic gadgets, tablets, laptops, RF-modules etc. The RMS has proven to be a tremendous asset during the development and evaluation of wireless devices. The improved product performance as well as the savings on time consuming range tests and test-lab measurements will pay for the RMS in just a few projects.

Features:

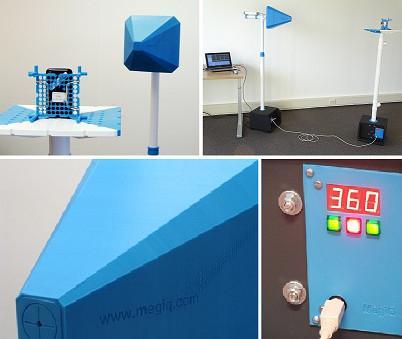

• Turnkey system includes rotation table, measurement antenna and receiver and application software.
• Dual polarization antenna and dual channel receiver, needs only one rotation per axis.
• Measures 3-axis radiation patterns in minutes.
• Measures Field Strength, EiRP, Antenna Gain, Total Radiated Power.

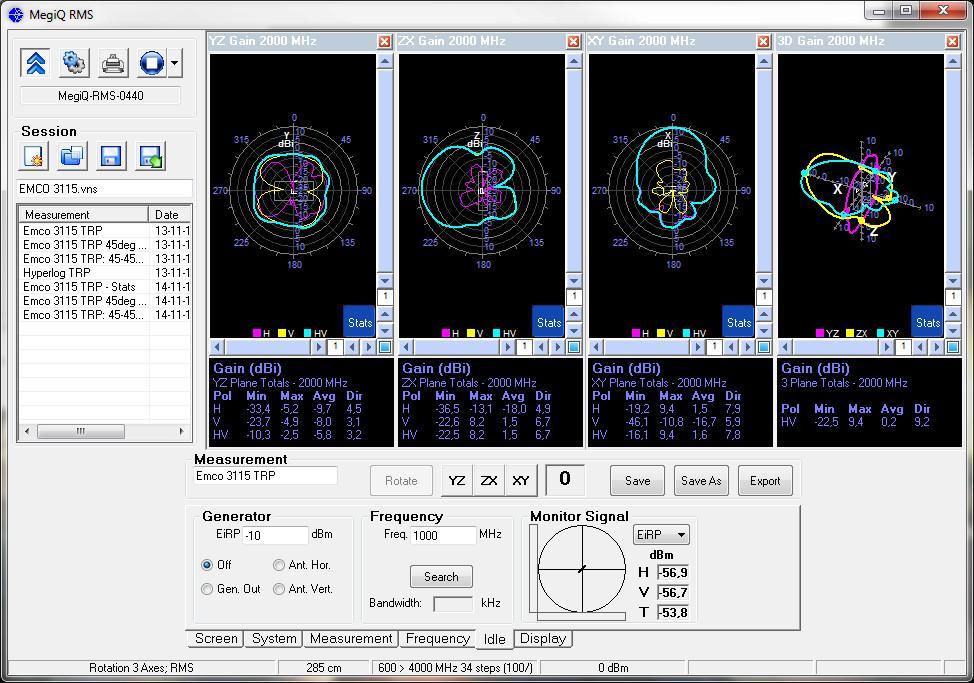

• 3D representation of measurements.
• Frequency range 600MHz - 4GHz / 6GHz.
• Measures multiple frequencies at the same time.
• Can generate a horizontal or vertical test signal.
• Generator-port option allows closed loop measurement of an Antenna under test.
• Real-time power and polarization indicator
• No calibration necessary.
• Lightweight and heavy duty table option.
• Can be used in normal office space with moderate space requirements. No need for an anechoic chamber.
• Compact and portable system.
