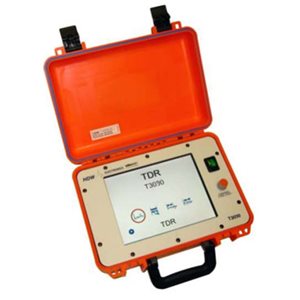

Time Domain Reflectometer Megger - T3090
PRODUS OBSOLET ( * SCOS DIN UZ )

• Reliable testing of IEC61850 relays using a conventional relay test set
• Separate Ethernet ports for the substation LAN and the controlling PC forming a Safe Substation Bus Access Point
• Seamless interaction between SCL GOOSE and GOOSE "sniffing"
• GOOSE merge - SCL GOOSE vs captured GOOSE for network troubleshooting and SCD file validation at FAT
• Stand alone functionality - Download a configuration and run



• Small, rugged, lightweight and powerful
• Operate with or without a computer
• Intuitive manual operation with Smart Touch View Interface
• High current, high power (60 Amps/300 VA rms) per phase
• Network interface provides IEC 61850 test capabilities
• Fully automated testing using AVTS Software



• Determines health of lead-acid cells up to 2000 Ah
• On-line testing with Pass/Warning/Fail calculations
• Measures impedance, interconnection resistance and cell voltage
• Windows CE operating system with 32 MB of memory
• Measures float and ripple currents
• Includes PowerDB LITE Management Software



• Capable of testing electromechanical or thermal-magnetic trip devices with dc current
• Digital timer
• High-current output up to 30,000 amperes



• Automates battery voltage measurement during capacity tests
• ½Daisy-chain½ design allows expandability up to 120 units
• High accuracy and stability for precise data collection
• Integrates with TORKEL Win and PowerDB Test Data Management software



• Automated measurement and analysis of moisture content, tan delta/power factor and oil conductivity
• Individual temperature correction (ITC) of tan delta/power factor and oil conductivity
• 40% faster measurements with the new IDAX 5.0 SW
• Reliable measurements in high-interference environments
• Multi-function test set for transformer measurements



• Designed for rugged field use
• 0 to 100 Amp output current
• Suitable for testing many different types of relays such as power, voltage and current
• Easy to operate



• fully automatic 12 kV insulation power factor / dissipation factor (tan delta) test set
• Voltage: 25 V to 12 kV, 1 V resolution
• Current : 0 to 5 Amps, 0.1 µA maximum resolution
• Capacitance: 0 to 100 µF, 0.01 pF maximum resolution
• Inductance: 6 H to 10 MH, 0.1 mH maximum resolution
• Power factor PF : 0-100% (0-1), 0.001% maximum resolution
• Dissipation factor DF : 0-100 (0-10,000%), 0.001% maximum resolution
• Watt Loss: 0 to 2 kW
• Automatic and manual operation
• Accurate and repeatable measurement results with high noise suppression
• Lightweight, rugged two-piece design



• Tests turns ratio, phase displacement, excitation current, vector group, winding resistance and polarity
• Fully automatic; fast; easy-to-use; handheld; robust; lightweight
• Battery powered with power-saving and shutdown function
• Alphanumeric keyboard
• RS232 for data transfer and printing
• Stores 200 test results and 100 user-defined transformer test settings



• capacitance and dissipation factor test
• High accuracy and wide measurement range
• Automatic measurement process
• Measures capacitive, resistive or inductive test objects
• High accuracy ratio measurements
• Works with any standard capacitor or resistor value without any recalculations
• All standard UST and GST configurations
