KINGSINE KFA310 Tester portabil relee de protectie 203091

Cod: KINGSINE KFA310 203091



Brosura produs PDF, 1.84 Mb


Descriere

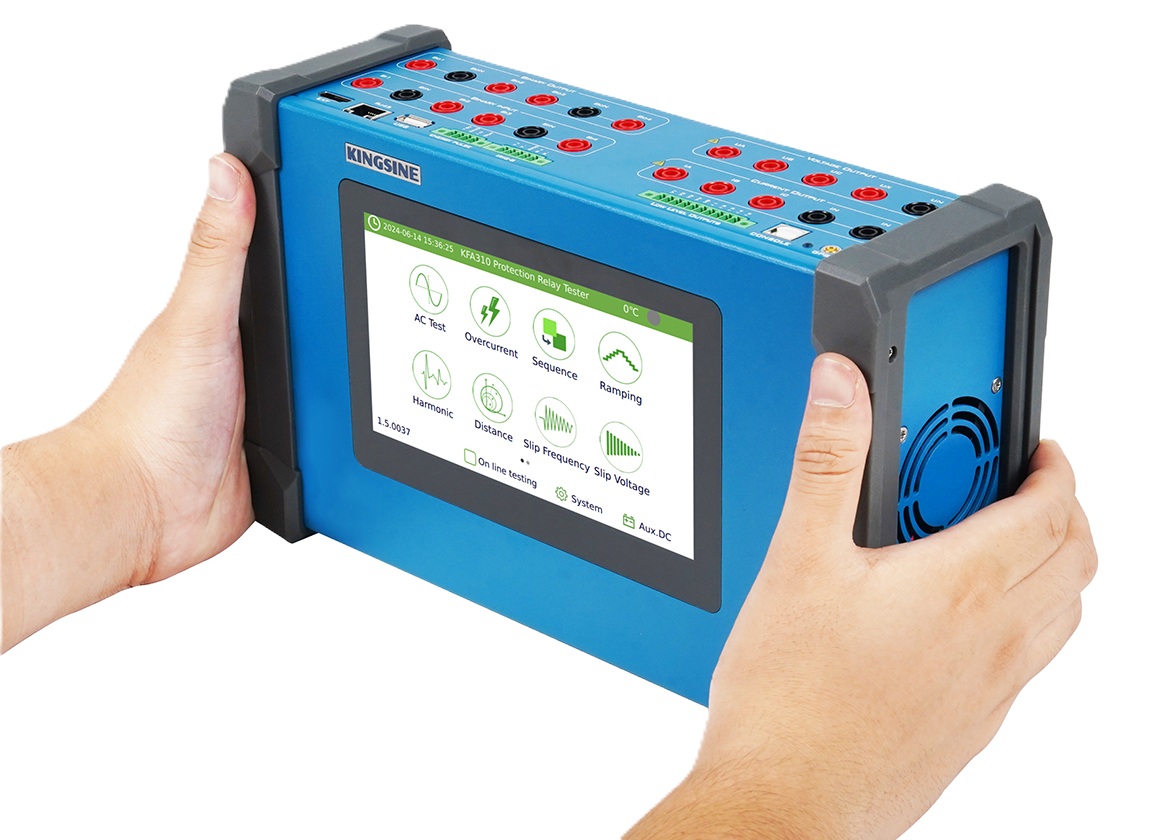

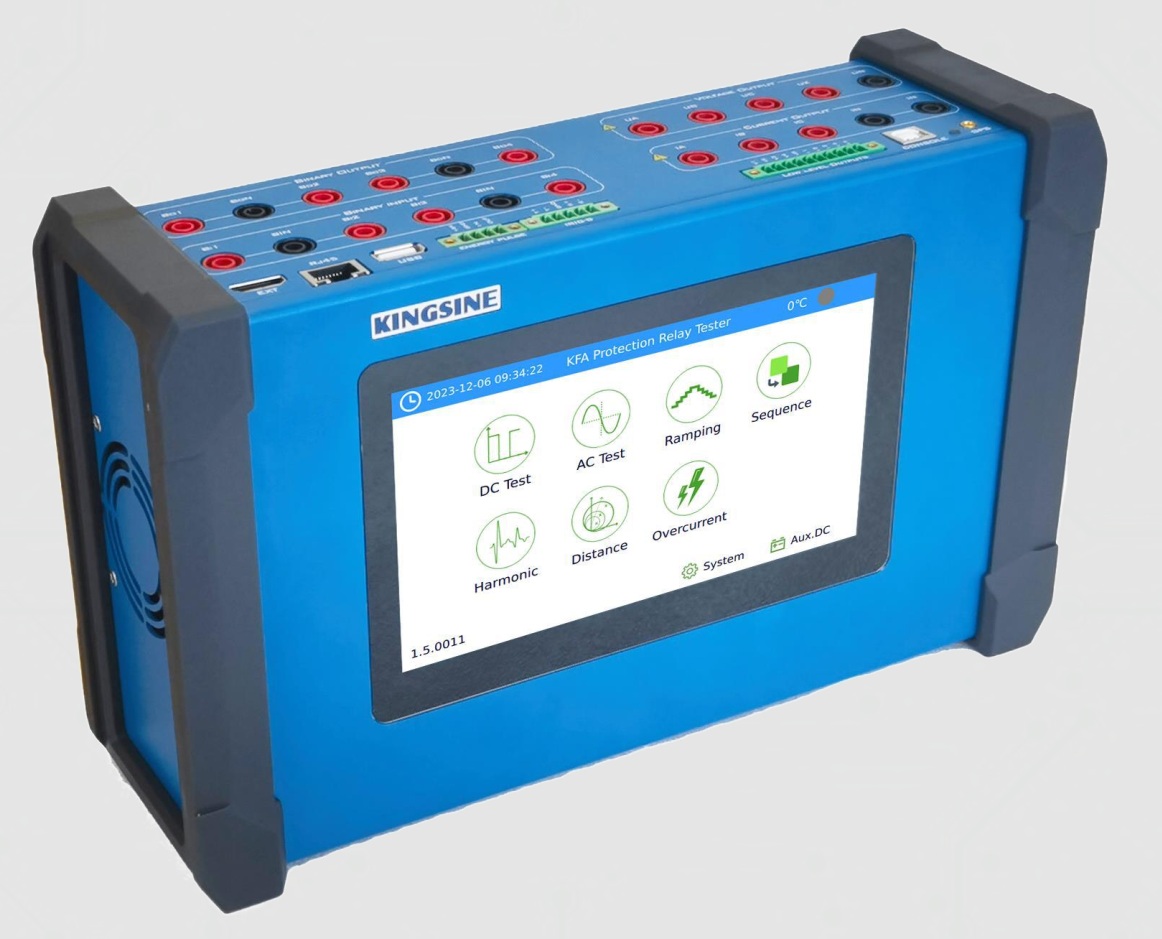

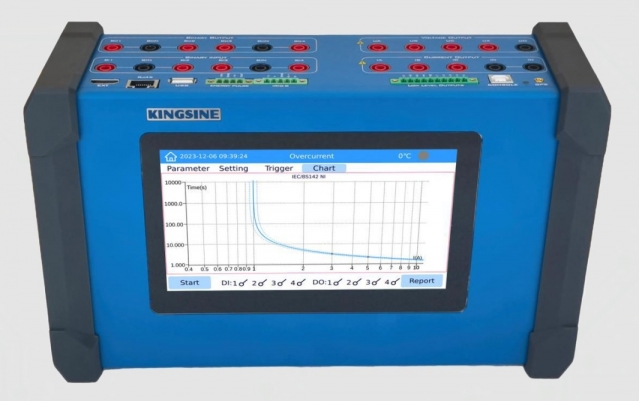

1. Kingsine KFA310 protection relay testing equipment marks the world's smallest protection relay tester with 7.0-inch LED touch screen. Easy to carry, iPad-sized, and weighing only 3.7 kg, it outputs up to 50A with high precision and can continuously output 3x10A conditions.



2. Extremely simple design for its internal structure, ensures high quality and reliability.



3. Innovative "Plug and Play" technology enables this mini handheld secondary injection test set to make after-sales service very easy and efficient, within 20 working days.

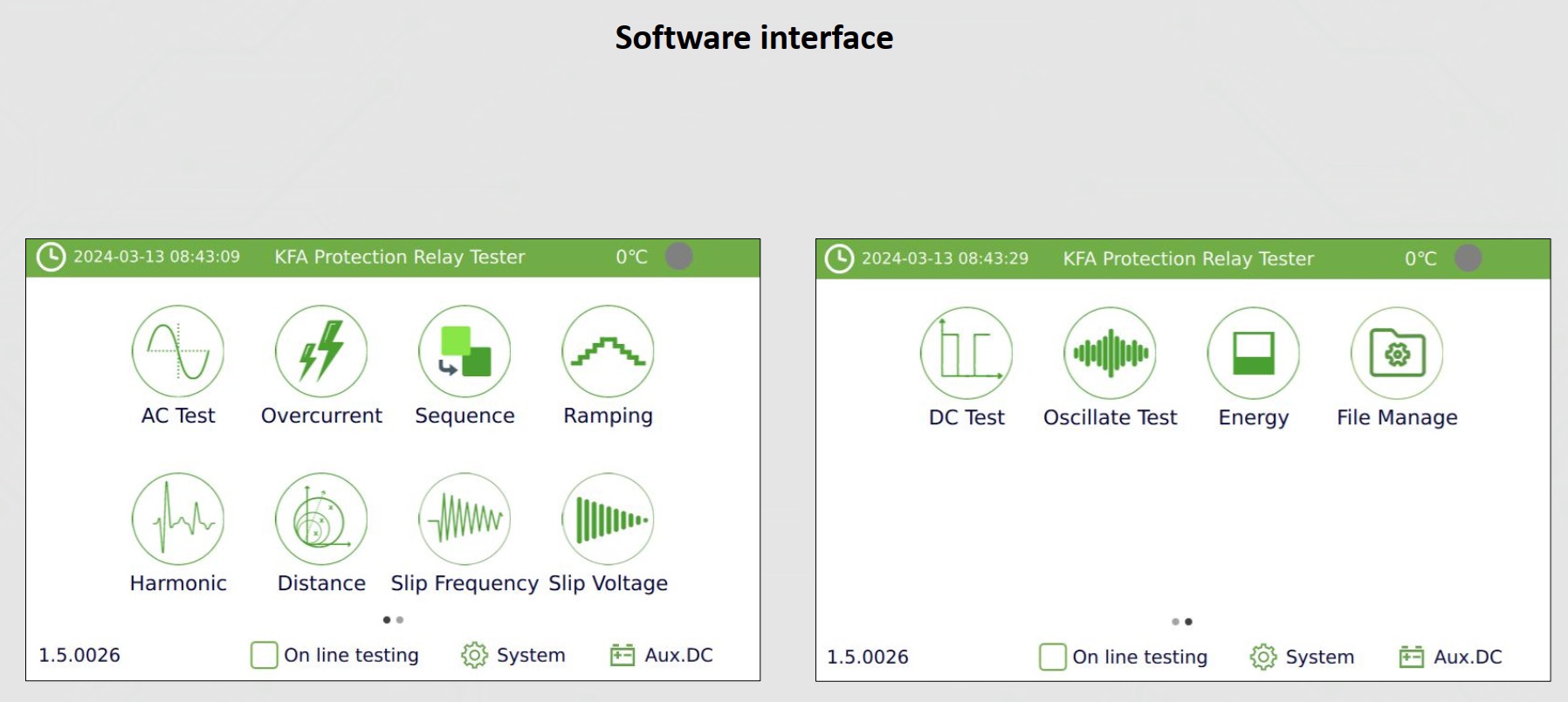

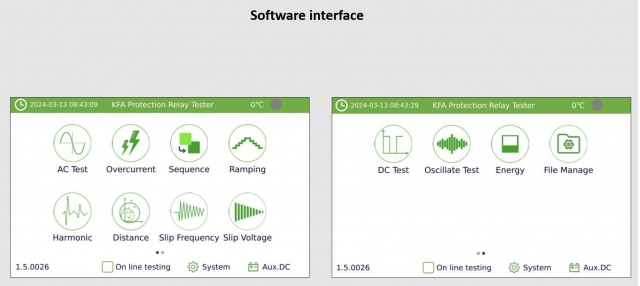

4. Main functions

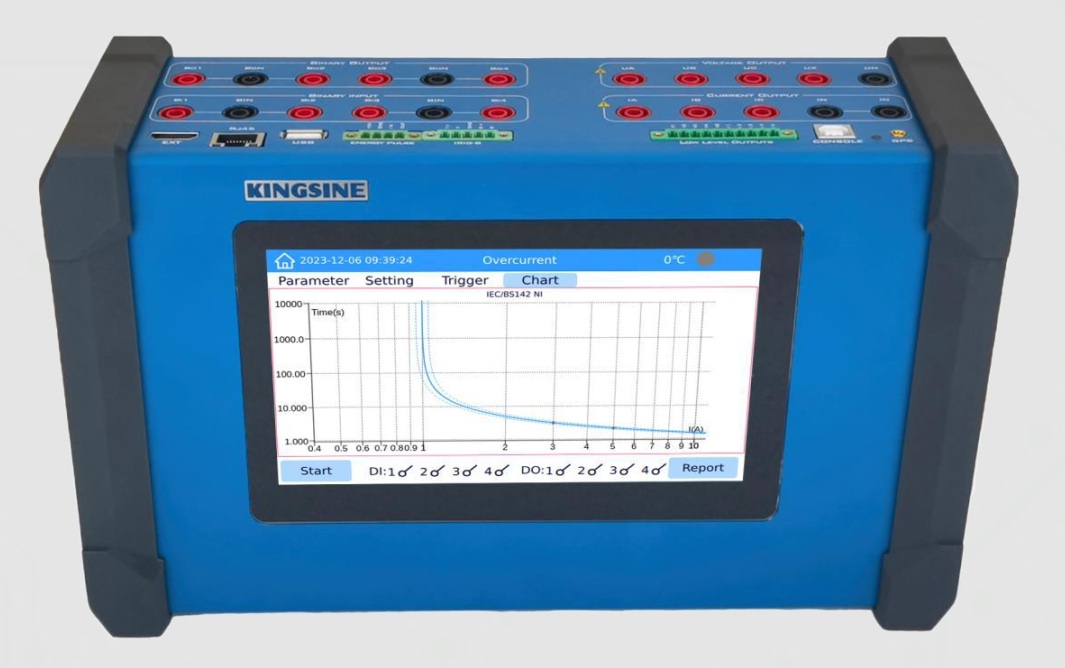

  • AC/DC test, Ramping, State Sequence, Harmonic, Distance, Overcurrent
  • Oscillate Test: This secondary injection test set can be used for customizing superimposed oscillation waveform simulation testing.
  • Frequency test (df/dt, ROCOF)
  • 3-Phase standard Power source
  • Energy meter calibration
  • Double-device synchronous test (up to 6 current channels for differential test)
  • 8 Channels Low-Level outputs (0 - 8Vrms)



5. With its high-precision output, this mini handheld secondary injection test set can be used as a standard source.



The following table summarizes the changing values of different current output using Kingsine KFA310 during protection relay testing. To witness the high precision of the KFA310 protection relay testing equipment, please watch the detailed demonstration video.






Kingsine KFA310Current Output

Minimum

Maximum

<0.015%Rd

+0.01%Rg Typ.

<0.02%Rd+

0.03%Rg Guar.

1A

0.99973 (2 min)

0.99998 (2 min)

0.00035

0.0008

5A

4.99863 (2 min)

4.99991 (2 min)

0.00275

0.007

10A

9.99867 (2 min)

10.0001 (2 min)

0.0035

0.008

19.5A

19.4973 (25 sec)

19.5045 (25 sec)

0.0049

0.01

50A (3 phase parallel)

49.9908 (20 sec)

50.0018 (20 sec)

0.0095

0.016



6. Stay ready for any test with our waterproof All-in-one Bag, designed for engineers to carry KFA series mini testers, cable packs, laptops, and tools""engineered for mobility.







Key Points



Innovative "Plug and Play" After-sales Service Advantages:

Simple structure, beginners can achieve independent installation.

Reduced after-sales costs.

Shortened after-sales time.

Goal: Complete after-sales within 20 working days.



The Kingsine KFA310 handheld mini protection relay tester utilizes innovative technology, module design, and a simple internal structure, ensuring a higher level of product quality and providing assurance for a three-year warranty commitment. Besides, it also contributes to achieving the quality objective of a 15-year product service life. For after-sales maintenance, only module replacement is required, and there is no need for accuracy calibration after module replacement. Once assembly is complete, it can be used directly, truly achieving "Plug and Play".





Alte produse KINGSINE

TRUSA UNIVERSALA PORTABILA TESTER RELEE DE PROTECTIE KINGSINE KF86P

• Ieșiri analogice 6x35A@425VA max și 6x310V@105VA max.
• Greutate 10 kg, ușor de transportat în avion.
• Ieșire semnale de nivel scăzut, testare contor de energie, calibrare traductoare și capacitate de testare IEC61850 opțional
• Port fibră 8x100/1000Mbit pentru simulări IEC61850 SMV și GOOSE
• Capacitate de testare end-to-end sincronizată GPS și IRIG-B încorporate

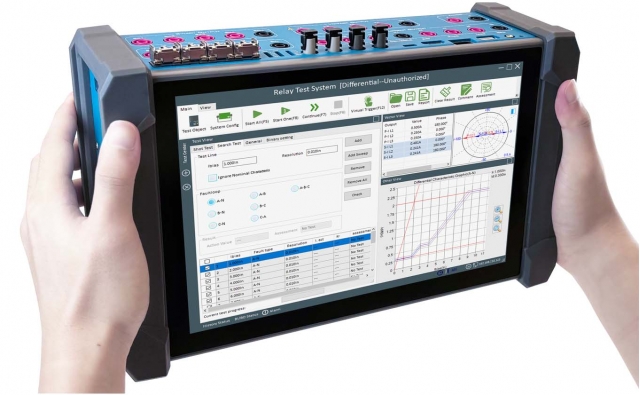

TRUSA PORTABILA TESTAT RELEELE DE PROTECTIE KINGSINE KFA320 CF IEC61850

• oferă ieșiri 4x300V și 6x20A
• Curentul său maxim poate ajunge la 60A, iar puterea de ieșire ajunge la 200VA/fază
• acceptă IEC61850 SV/GOOSE, simulare LPIT, testarea contoarelor de energie, ieșire de nivel scăzut și calibrarea traductoarelor
• Cel mai mic tester de relee din lume, cu ecran tactil LED de 10,1 inci, ușor de transportat în dimensiunea unui iPad, 3,8 kg
• Port fibră 3x100 + 1x1000Mbit pentru simulări IEC61850 SMV și GOOSE

SURSA TRIFAZATA AC/DC & CALIBRATOR CONTOARE ELECTRICE KINGSINE KS823/ KS823B

• 3-Phase AC/DC Standard Source 750V / 25A
• Harmonic Standard Source 2..31
• Indicating Meter Test
• 0.05 Accuracy KS823
• 0.1 Accuracy KS823B


TESTER RELEE DE PROTECTIE 1 CANAL MAX.1200VA 300V 200A KINGSINE K511

• All-in-one design with LCD display
• Adopt DSP control to ensure the system more reliable
• Max. AC output 200A, Max. power output 1200VA
• Save the test report automatically (max. 1024)


TRUSA PORTABILA TESTARE RELEE DE PROTECTIE KINGSINE K68/ K68I

• All-in-one design relay tester with 6.4 inches LCD display
• 4 Phase AC Voltage Source and 3 phase AC current source
• Range, Phase, Frequency can be set independently
• Max AC voltage can reach 300V each phase


SURSA TRIFAZICA DE PUTERE AC PRECIZIE 0.05 750V/ 25A KINGSINE KS803

• 3-Phase AC Standard Source 750V / 25A
• Harmonic Standard Source 2..31
• Accuracy: 0.05


CONTOR ETALON TRIFAZAT PRECIZIE 0.05% KINGSINE KS706

• Single/three-phase active/reactive meter calibration
• Three-phase active/reactive KWh meter calibration
• Able to measure current, voltage, frequency, phase, power, energy
• Harmonic analysis
• CT & PT ratio & secondary load measurement
• Able to recognize 96 kinds of wrong connections of 3P4W & 98 kinds of wrong connections of 3P3W
• Apply in the electric power & inspection department
• Colorful LCD: 6.4 inch, resolution 640X480


KINGSINE KFA310 TESTER PORTABIL RELEE DE PROTECTIE 203091

• High-power, High-precision, Multi-functional
• weighs only 3.7 kg
• offers 4x300V and 3x20A outputs
• maximum current can reach 50A
• the output power reaches 130VA


SURSA TRIFAZICA DE PUTERE AC PRECIZIE 0.05 750V/ 25A KINGSINE KS803

• 3-Phase AC Standard Source 750V / 25A
• Harmonic Standard Source 2..31
• Accuracy: 0.05

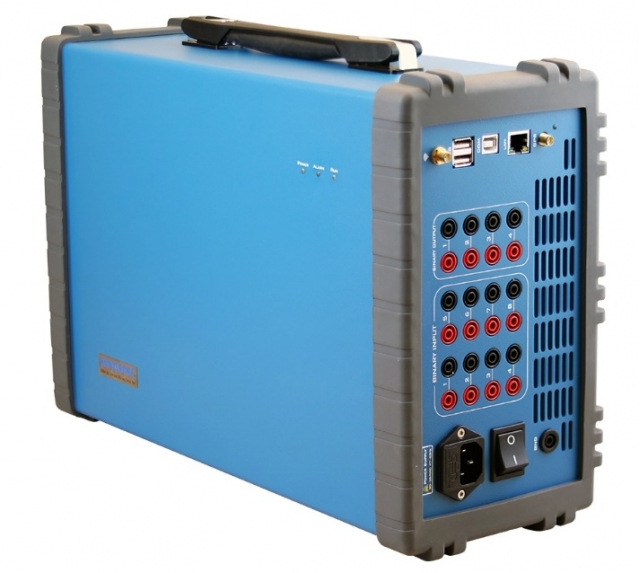

TRUSA TESTAT RELEELE DE PROTECTIE KINGSINE KF85P
