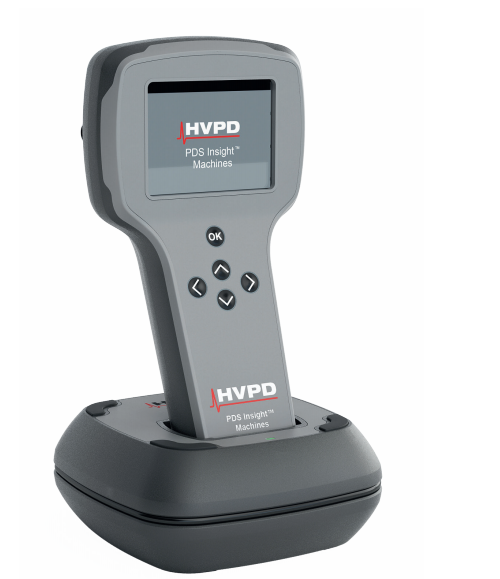

HVPD PDS Insight™ Machines Tester descarcare partiala motoare, trnasformatoare, intrerupatoare

Cod: HVPD PDS Insight Machines



Brosura produs 1 PDF, 5.83 Mb

Descriere

A New Solution for Detecting Partial Discharge in Rotating Machines


The PDS Insight™ Machines is the latest advance in handheld on-line partial discharge (OLPD) technology especially developed for testing rotating machines using pre-installed high voltage coupling capacitors (HVCC). This cutting edge test unit is supplied with a dedicated asset management tablet application – the OLPD Manager™ app.



The PDS Insight™ Machines measures PD levels, PD pulse count and cumulative PD activity across the 50/60 Hz power cycle to enable the severity of any partial discharge activity to be assessed. By combining four types of PD sensor (HVCC, TEV, HFCT and AA), the unit is suitable for the OLPD testing of rotating machines (above 3.3 kV), most types of in-service medium voltage (MV) cables and plant and OLPD surveying of outdoor high voltage (HV) switchyards. The handheld unit stores all measurement data on its internal memory that is then synchronised via Bluetooth® to the OLPD Manager™ app on the supplied 10.1” Android Tablet PC for analysis, benchmarking and trending of results.



Features:

  • Compatible with four OLPD sensors: HVCC, HFCT, and in-built TEV & AA.
  • Detects PD activity in the stator windings of motors and generators (HVCC), electromagnetic radiation from PD in metal-clad plant (TEV), current impulses from PD in cables and accessories (HFCT), and ultrasonic radiation from PD into air from airinsulated switchgear and other plant (AA).
  • Combines PD Level, PD Pulse Count and Cumulative PD Activity measurements across the 50/60Hz cycle.
  • Supplied with a Smart Docking Station for charging, data download and function checking of the unit.
  • Onboard data storage for quick testing and Bluetooth® communication to the Android™ Tablet PC for post-test data analysis, benchmarking and trending.
  • All measurements can be downloaded into a CSV file to enable report writing and analysis.
  • The peak graph recorded with the HVPD PDS Insight™ Machines can be displayed and recalled on the tablet.
  • Supplied with Headphones.
  • Multiple language software.



Benefits:



  • Compatible with pre-installed high voltage coupling capacitors (eg 80 pF, 250 pF, 500 pF and 1 nF).
  • The OLPD Manager™ app on the 10.1” Android™ Tablet PC makes it easy to setup a test record and to carry out repeat testing and monitoring.
  • Ensures the safe and reliable operation of HV networks, providing an early warning against incipient faults.
  • The unit’s barcode scanner retrieves sensor location ID from the Point of Attachment (POA) labels automatically.
  • Optional accessories include the Outdoor Parabolic Receiver (for detecting corona and surface discharges in outdoor HV switchyards) and the Indoor Acoustic Search Probe (to extend the reach of the unit to detect airborne acoustic activity along the seams/ gaps in MV switchgear).
  • Asset operators and managers with multiple sites and multiple HVPD PDS Insight™ Machines units can now back up and share data across all tablets to provide an asset management global view.
  • All data between the PDS Insight™ Machines handheld and the Android tablet is synchronised via Bluetooth®.
