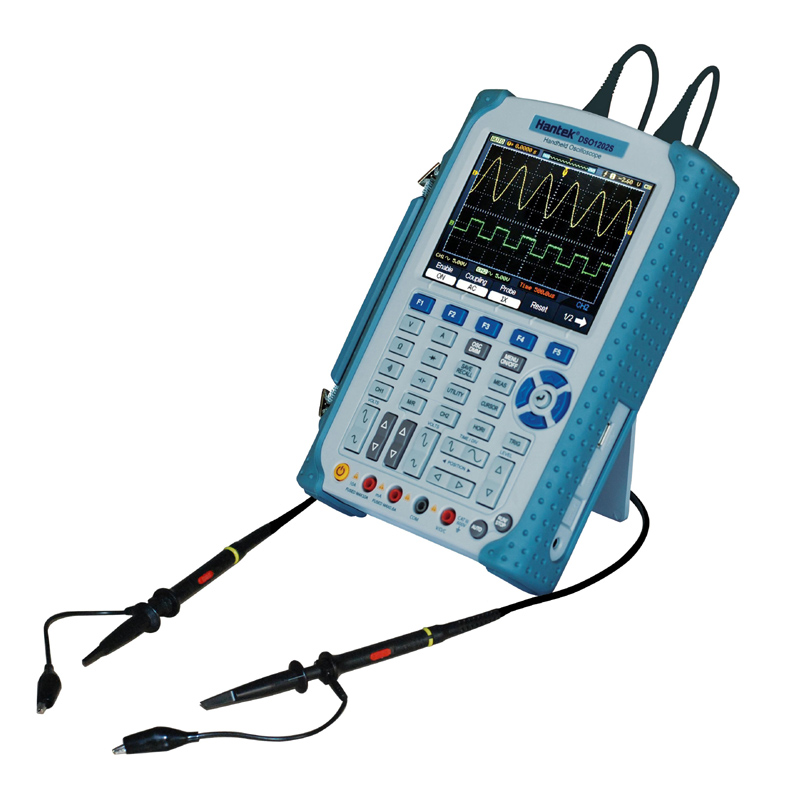

Isolated level: 1000V CATII, 600V CATIII;
60MHz-200MHz Bandwidth Oscilloscope;
1GSa/s sample rate,1M Memory Depth, and 6000 Counts DMM with analog bargraph;
5.6 inch TFT Color LCD Display, high resolution(640*480).

Features:

Isolated level: 1000V CATII, 600V CATIII.
High Bandwidth 60MHz-200MHz Oscilloscope, 1GSa/s sample rate, 6000 Counts DMM with analog barograph and data recorder.
1M Memory Depth.
High Refresh Rate (2500 frames).
Large 5.6 inch TFT Color Display, High Resolution(640*480), Dual-Window Design --More clear, More detailed.
One-touch automatic setup optimizes the position, range, timebase, and triggering to assure a stable display of virtually any waveform.
Easy-to-use pop-up menu with built-in multi-language help system.
32 Automatic Measurements.
Waveform Math: Add, Subtract, Multiply, and Divide.
Store and recall over.
XY Mode.
Built-in FFT function converts a time-domain signal into its frequency components to measure harmonic content and distortion in systems.
Waveform Recorder to capture/replay input waveforms from CH1 and CH2 with a maximum record length of 1000 frames.
Pass-Fail function compares a stored waveform to an unknown input.
Average Mode for smoothing waveforms.
Square Wave Output (2V, 1kHz) for probe adjustment.
USB Host/Device 2.0 full-speed interface, support removeable disk, LAN Option, easy to control by PC or long-distance.
Dimensions (mm):245(L)x163(W)x52(H), be carried easily.
