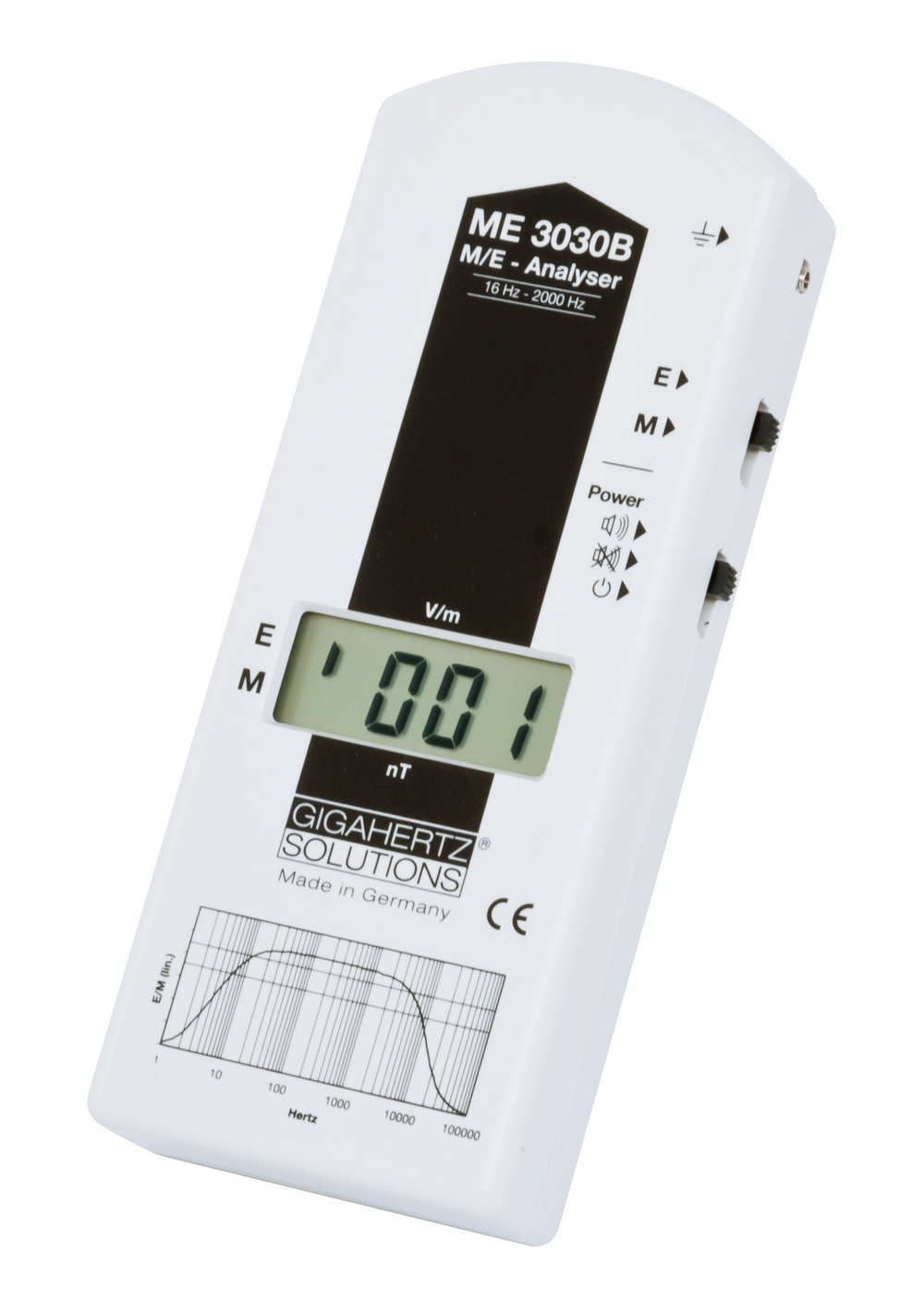

Gigahertz Solutions - LOW FREQUENCY ANALYSER ME3030B

• Audio analyses for the identification of pulsed radiation sources (mobile radio (GSM, UMTS/G3), cordless telephones (DECT), WLAN (Bluetooth), air-traffic control radar) by means of an acoustic signal proportional to the modulation frequency.
• Display of peak value as well as average value (switchable).
• Sensitivity increased by a factor of 10 (from a minimum display resolution of 0.1µW/m² to a maximum of 1999 µW/m²).



• Includes an especially shielded log-per antenna with excellent directional characteristics.
• Integrated steep high pass filter at 2.4 GHz reliably suppresses the often dominant GSM and DECT frequencies.
• Calibrated AC measurement output for the demodulated signal, scalable DC output.



• Display of peak value as well as average value (switchable).
• Sensitivity increased by a factor of 10 (from a minimum display resolution of 0.1µW/m² to a maximum of 1999 µW/m²).
• HINT: Our best-selling meter for the easy evaluation!



• A 10 times higher sensitivity: Minimum display resolution 0.01 µW/m² .
• A measuring range extended upwards by a factor of 10: max. 19.99 mW/m² .
• Clearly simplified measurements with the help of the "peak-hold"- function.



• ONE-dimensional potential-free measurement of the electric field (Y-axis).
• Non-isolated electric field measurement possible with integrated sensor or with the optionally available TCO conform probe TCO3.
• An integrated voice recorder facilitates the measruement analysis.



• Horizontal isotropic ultra broad bandwidth antenna UBB27_G3 from 27 MHz up to beyond 3.3 GHz (limited by the frequency response of the HF59B).
• 800 MHz high pass filter HP800_G3 for the suppression of low frequencies when measuring with the log.-per. antenna of the HF59B.
• High frequency preamplifier HV10_27G3. Increases the measurement range by 10 dB (by a factor of 10) - important when wanting to reduce the increased noise background in the radar or UMTS/3G-mode.



• Maximum video band width for the demonstration of the shortest radar pulses (< 0.5 µs).
• Optimized Peak Hold function (patent no. DE 103 34 886).
• HV20_2400G10 included for maximum sensitivity within the full frequency range: 0.01 mW/m² display resolution for measurements of weakest WLAN signals.
• Includes an especially shielded log-per antenna with excellent directional characteristics.



• The instrument itself, based on the HF35C but with an extended frequency range reaching down to 27 MHz.
• Two antennas: The especially compensated log.-per. antenna for the range above 800 MHz



• Frequency range from 2.4 to 6 GHz.
• A special device suitable for the measurement of radiation caused by wireless applications / computer networks, including the new standards (Bluetooth, WLAN, WiFi), also covering the WiMAX-frequencies auctioned off in 2006.
• It comes with an especially aligned log.-per. antenna with excellent directivity (Patent pending: AZ 10 2006 051 180.8 ).

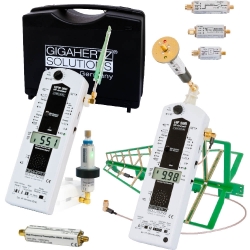

• For technical details please check the information supplied on the pages of the individual meters.
• The attenuator DG20_G10 contained in the kit is suitable for both meters.
• For a safe transport of the meters and antennas, the kit is supplied in a plastic case (K2).
