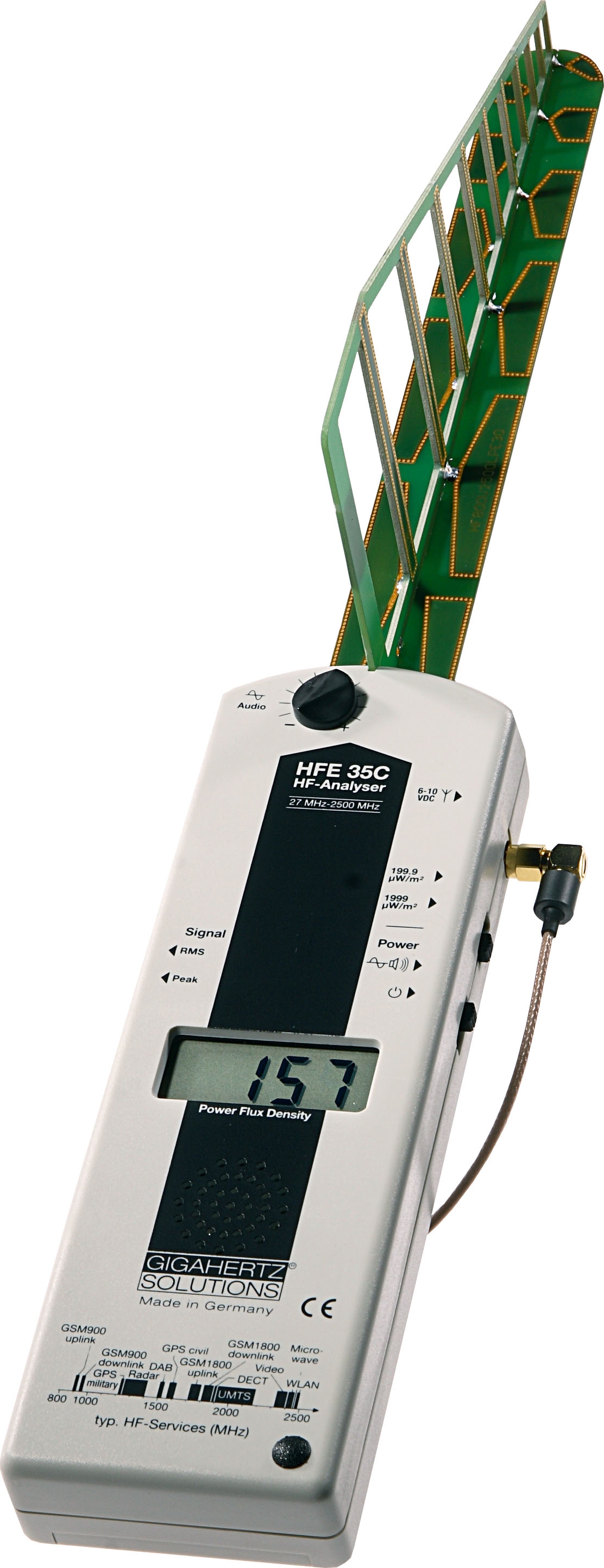

Gigahertz Solutions - HF-ANALYZER HFE35C-BASIC

Cod: Gigahertz Solutions - HF-ANALYZER HFE35C-BASIC




Brosura produs PDF, 0.36 Mb

Descriere

It supports all "common advantages". Offers uncomplicated evaluation and outstanding overview over the exposure, a determination of suitable remedial actions, as well as a control of their effectiveness.

Frequency range: 800 MHz to 2.7 GHz



Features:

  • Audio analyses for the identification of pulsed radiation sources (mobile radio (GSM, UMTS/G3), cordless telephones (DECT), WLAN (Bluetooth), air-traffic control radar) by means of an acoustic signal proportional to the modulation frequency.
  • Display of peak value as well as average value (switchable).
  • Sensitivity increased by a factor of 10 (from a minimum display resolution of 0.1µW/m² to a maximum of 1999 µW/m²).
  • HINT: Our best-selling meter for the easy evaluation!
