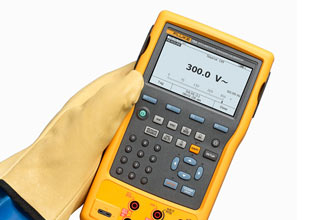

Calibrator multifunctional de proces cu HART Fluke 754

Cod: Fluke 754



Brosura produs 1 PDF, 0.91 Mb


Descriere

  • Measure volts, mA, RTDs, thermocouples, frequency, and ohms to test sensors, transmitters and other instruments
  • Source/simulate volts, mA, thermocouples, RTDs, frequency, ohms, and pressure to calibrate transmitters
  • Power transmitters during test using loop supply with simultaneous mA measurement
  • Measure/source pressure using any of 29 Fluke 700Pxx Pressure Modules
  • Create and run automated as-found/as-left procedures to satisfy quality programs or regulations. Record and document results
  • Holds up to a full week of downloaded procedures and calibration results.
  • Use many features like autostep, custom units, user entered values during test, one-point and two-point switch testing, square root DP flow testing, programmable measurement delay etc.
  • Easy to use
  • Three year warranty
  • Bright white dual display. Read both sourced and measured parameters simultaneously.
  • Multi lingual interface
  • Rechargeable Li-Ion battery for 10 hour uninterrupted use. Includes gas gauge.
  • Handling of fast pulsed RTD transmitters and PLCs, with pulses as short as 1 ms.
  • Delivered with DPC/Track Sample software.
  • Compatible with many Asset Management software packages.









HART Capabilities

The 754 is designed to take on nearly all the day-to-day tasks you now perform with a separate communicator. In fact, it offers the communication capabilities of the 375 HART communicator.



  • Requires no external box or second tool for everyday HART calibration and maintenance.
  • Offers fast HART communication.
  • Supports popular models of HART transmitters, with more devise-specific command support than any other HART field calibrator.
  • Works with multiple masters, burst mode, and multi-drop configurations.
  • Is easy to update as additional instruments are added and new HART versions are released.
  • Interrogate to determine device type, manufacturer, model, tag.
  • Reconfigure the sensor mapping of dual sensor temperature transmitters.
  • Read HART PV function and smart transmitter digital output while measuring analog mA output.
  • Read and write HART configuration functions to make field adjustments to PV range points, damping, and other top-level configuration settings.
  • Re-label smart transmitters by reading and writing to the HART tag field.


Accesorii standard

  • BC7240 battery charger
  • Li-on BP7240 battery pack
  • DPCTrack 2™ Sample Software
  • Instruction manual
  • NIST-traceable calibration report and data
  • Three sets of TP220 test probes with three sets of “extended tooth alligator clips
  • Two sets AC280 hook clips

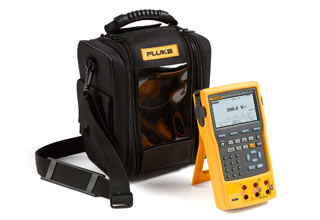

  • C799 Soft Field Case
  • USB communication cable, Fluke 754HHC HART communications cable


Optiuni recomandate



Cases and holsters

C700

C700 Hard Case (700 Series)

C781

C781 Meter Case



Differential pressure modules

700P00

700P00 Differential Pressure Module (2.5 mbar)

700P01

700P01 Differential Pressure Module

700P02

700P02 Differential Pressure Module (70 mbar)

700P03

700P03 Differential Pressure Module (340 mbar)

700P04

700P04 Differential Pressure Module (1000 mbar)



Gauge pressure modules

700P05

700P05 Gauge Pressure Module

700P06

700P06 Gauge Pressure Module

700P07

700P07 Gauge Pressure Module (34 bar)

700P08

700P08 Gauge Pressure Module (70 bar)

700P09

700P09 Gauge Pressure Module

700P27

700P27 Gauge Pressure Module

700P29

700P29 Gauge Pressure Module

700P30

700P30 Gauge Pressure Module (340 bar)

700P31

700P31 Gauge Pressure Module (700 bar)



Industrial Test Leads, Probes and Clips

AC220

AC220 SureGrip™ Alligator Clip Set

AC280

AC280 SureGrip™ Hook Clips

AC285

AC285 SureGrip™ Alligator Clip Set

TL940

TL940 Mini-Hook Test Lead Set

TL950

TL950 Mini-Pincer Test Lead Set

TP74

TP74 Lantern Tip Test Probes

TP920

TP920 Test Probe Adapter Kit



Differential pressure module wet

700P22

700P22 Differential Pressure Module Wet (70 mbar)

700P23

700P23 Differential Pressure Module Wet (340 mbar)

700P24

700P24 Differential Pressure Module Wet



Absolute pressure module

700PA3

700PA3 Absolute Pressure Module (340 mbar)

700PA4

700PA4 Absolute Pressure Module

700PA5

700PA5 Absolute Pressure Module (2 bar)

700PA6

700PA6 Absolute Pressure Module (7 bar)



Temperature

700TC1

700TC1 Thermocouple Plug Kits (10 types)

80CJ-M

80CJ-M Male Mini Connectors (Type J)

80CK-M

80CK-M Male Mini Connectors (Type K)

80PJ-EXT

80PJ-EXT Extension Wire Kit (Type J)

80PK-1

80PK-1 Bead Probe (Type K)

80PK-22

80PK-22 Immersion Probe

80PK-24

80PK-24 Air Probe

80PK-25

80PK-25 Piercing Probe

80PK-26

80PK-26 General Purpose Probe

80PK-27

80PK-27 Industrial Surface Probe

80PK-8

80PK-8 Pipe Clamp Temperature Probe (Type K)

80PK-9

80PK-9 General Purpose Probe (Type K)

80PK-EXT

80PK-EXT Extension Wire Kit (Type K)

80PT-25
