The Fluke 1623-2 GEO Earth Ground Tester offers data storage and download capabilities via USB port. World class accessories will simplify and speed up testing time.

Fluke 1623-2 GEO Earth Ground Tester Summary

3- and 4-pole Fall-of-Potential, earth resistance loop testing
4-pole Soil Resistivity testing
Selective earth ground rod testing using 1 clamp
Stakeless earth ground rod testing using 2 clamps
IP56 rated for outdoor use
Rugged carrying case
USB data storage and transfer

Stakeless Testing

The Fluke 1623-2 earth ground tester is able to measure earth ground loop resistances using only clamps. With this test method, two clamps are placed around the earth ground rod and each are connected to the tester. No earth ground stakes are used at all. A known, fixed voltage is induced by one clamp and the current is measured using the second clamp. Then the tester automatically determines the resistance of the earth ground rod. This test method only works if a bonded earth ground system exists for the building or structure under test, but most are. If there is only one path to ground, like at many residential applications, the Stakeless method will not provide an acceptable value and the Fall-of-Potential test method must be used.

With Stakeless testing, the earth ground rod does not need to be disconnected - leaving the bonded earth ground system intact during test. Gone are the days of spending time placing and connecting stakes for each earth ground rod on your system - a major time saver. You can also perform earth ground tests in places you’ve not considered before: inside buildings, power pylons, or anywhere you don’t have access to soil.

The Most Complete Tester

The Fluke 1623-2 is a unique earth ground tester that can perform all four types of earth ground measurement.

3- and 4-Pole Fall-of-Potential (using stakes)
4-Pole Soil Resistivity Testing (using stakes)
Selective Testing (using 1 clamp and stakes)
Stakeless Testing (using 2 clamps only)

Accesorii standard

1623-2 Includes:

GEO Earth Ground Tester
User's Manual
Batteries
Quick Reference Guide
2 Test Leads
USB Cable

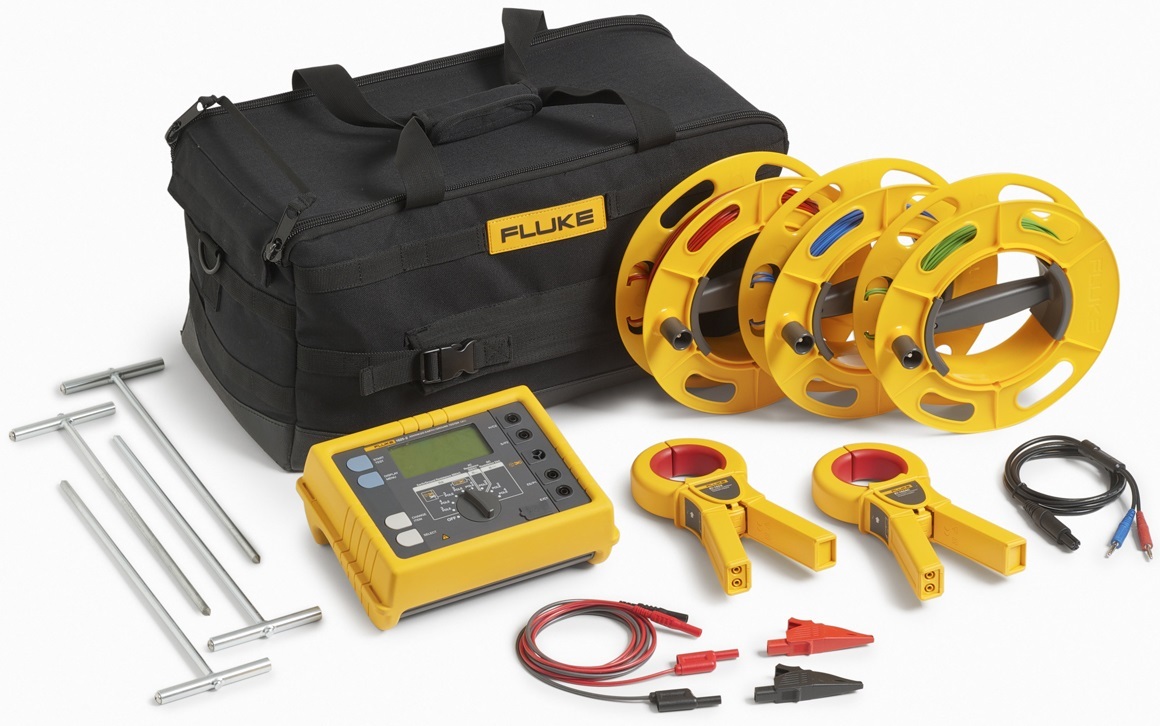

1623-2 kit Includes:

GEO Earth Ground Tester
User’s Manual
Batteries
Quick Reference Guide
USB Cable
2 Clamps
C1620 Professional Carrying Case
4 Earth Ground Stakes
3 Cable Reels

Optiuni recomandate

Accessory Kits
ES-162P3-2	Stake Set for 3-Pole Measurement
ES-162P4-2	Stake Set for 4-Pole Measurement

Cables and Hardware
Cable Reel 25M BL	Ground/Earth Cable Reel 25 m (81.25 ft)
Cable Reel 25M GR	Ground/Earth Cable Reel 25 m (81.25 ft)
Cable Reel 50M RD	Ground/Earth Cable Reel 50 m (162.5 ft)

Current clamps
EI-162AC	Clip-on Current Transformer (Inducing)
EI-162X	Clip-on Current Transformer (Sensing) with Shielded Cable Set
EI-1623	Selective/Stakeless Clamp Set
EI-162BN	320 mm (12.6 in) Split Core Transformer
