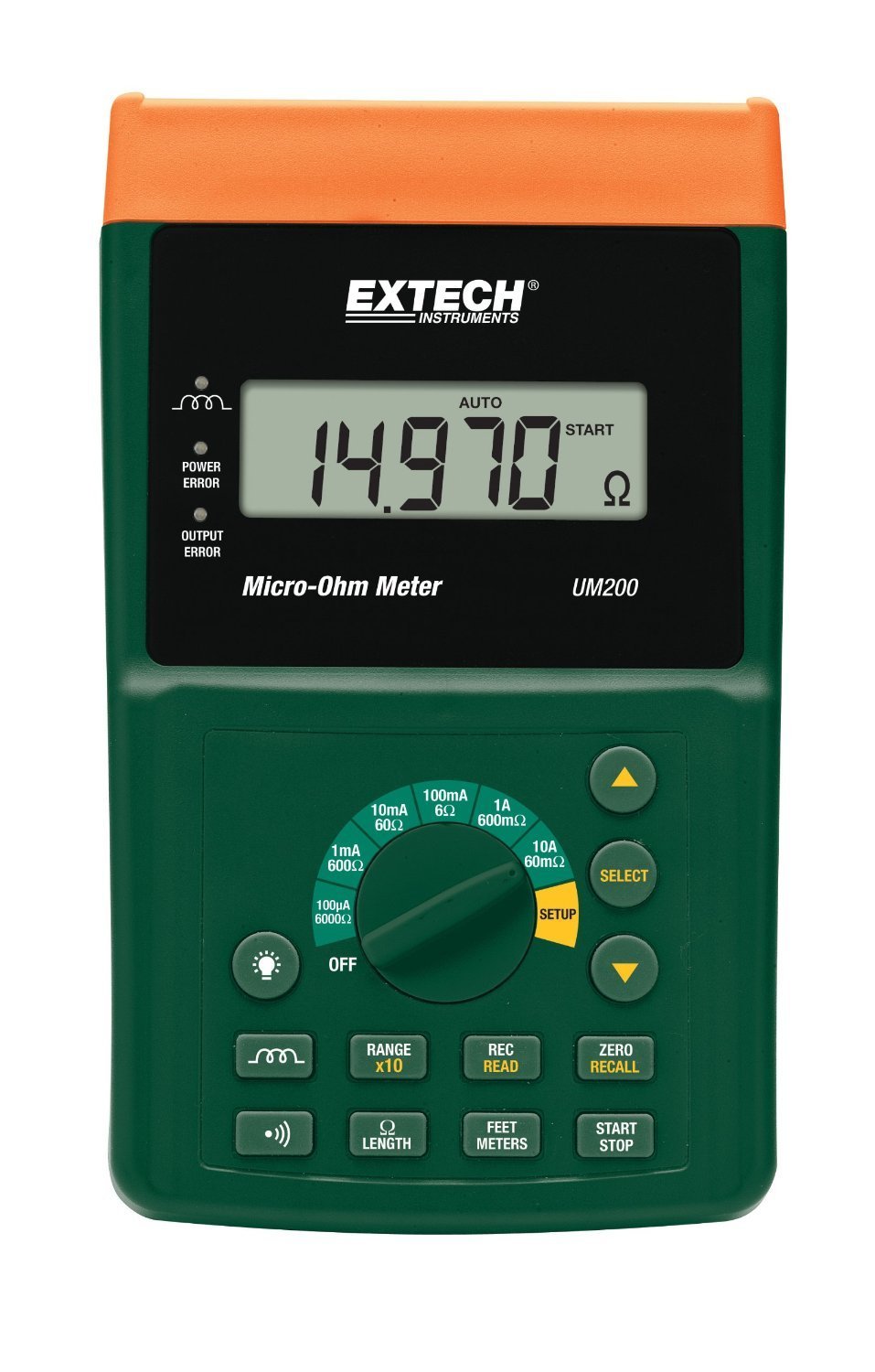

Extech UM200 Micro-ohmmetru 10A inalta rezolutie

Cod: Extech UM200




Brosura produs PDF, 0.12 Mb

Descriere

Precision meter provides resolution down to 1µO

The UM200 is a precision Micro-Ohm meter which features a resolution down to 1µO. The UM200 has 6 ranges with 3 sub-ranges in each current range. Measurement of resistive and inductive materials. 5-Digit backlit LCD, PC interface. Auto or Manual ranging, 10A maximum test current. Store/Recall up to 3000 measurements. Cable length measurement (feet or meters). Complete with 4-wire cables with Kelvin clip connectors, rechargeable Li-Polymer battery, AC adapter/charger, software and USB cable, and soft carrying case.



Features:

  • 6 ranges with 3 sub-ranges in each current range
  • Measurement of resistive and inductive materials
  • 5-Digit backlit LCD, PC interface
  • Auto or Manual ranging, 10A maximum test current
  • Store/Recall up to 3000 measurements
  • Cable length measurement (feet or meters)
  • Complete with 4-wire cables with Kelvin clip connectors, rechargeable Li-Polymer battery, AC adapter/charger, software and USB cable, and soft carrying case
