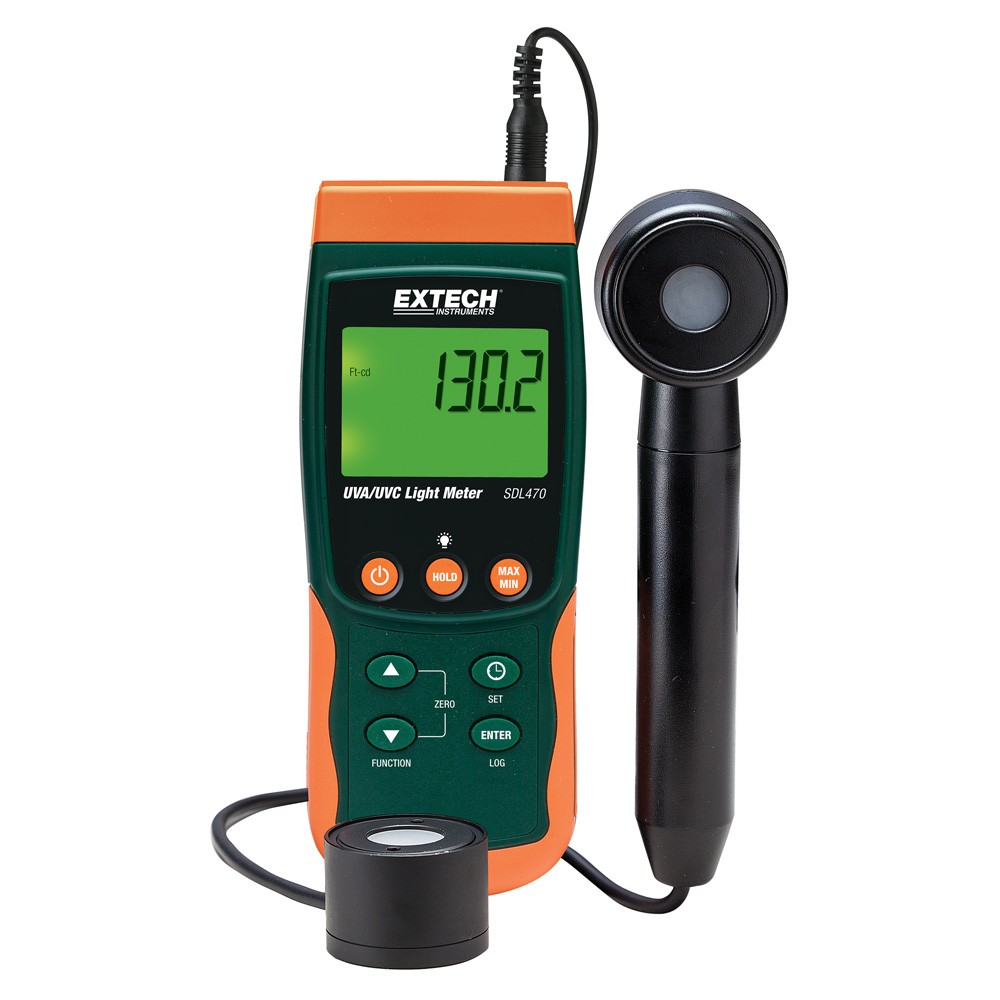

Extech SDL470 Tester lumina UVA/UVC Luxmetru cu Datalogging

Cod: Extech SDL470




Brosura produs PDF, 0.27 Mb


Descriere

Short-/Long-wave UV Irradiance Light Meter with Datalogging

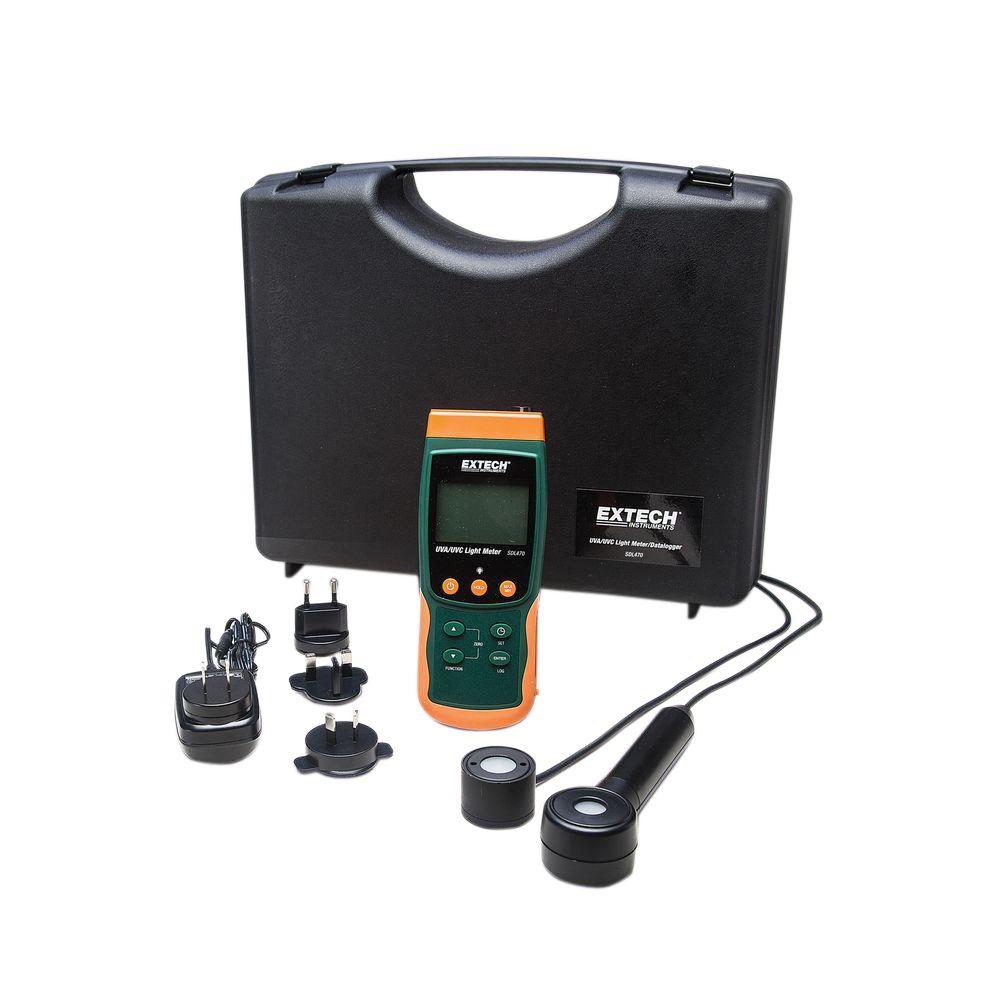

The SDL470 is a UVA/UVC Light Meter and Data logger. The SDL470 can measure both long wave and short wave UV irradiance under UVA and UVC light sources respectively. This meter features a cosine correction filter, data logging to Excel format, offset adjustment for relative measurements, type K/J thermocouple input for temperature measurements (probe sold separately), record/recall modes, min and max readings, data hold plus auto power off with disable function. This product comes with a built-in tilt stand, SD memory card, UVA light sensor with protective cover, UVC light sensor, hard case, universal AC adaptor, and 6 x AA batteries.


Features:

ˇ         UVA probe captures long-wave 365nm UV irradiance measurements under a UVA (black light) source

ˇ         UVC probe captures short-wave 254nm UV irradiance measurements under a UVC light source

ˇ         Cosine correction filter and metal housing

ˇ         Datalogging feature records readings with date and time stamp on an SD card (included) in Excel® format

ˇ         Offset adjustment used for zero function or to make relative measurements

ˇ         Adjustable data sampling rate from 1 to 3600 seconds

ˇ         Stores 99 readings manually

ˇ         Type K/J Thermocouple input for temperature measurements (probes sold separately)

ˇ         Large backlit LCD display

ˇ         Record/Recall MIN, MAX readings, Data Hold plus Auto power off with disable function

ˇ         Complete with built-in tilt stand, SD memory card, UVA light sensor with protective cover, UVC light sensor, hard case, Universal AC adaptor, and 6 x AA batteries
