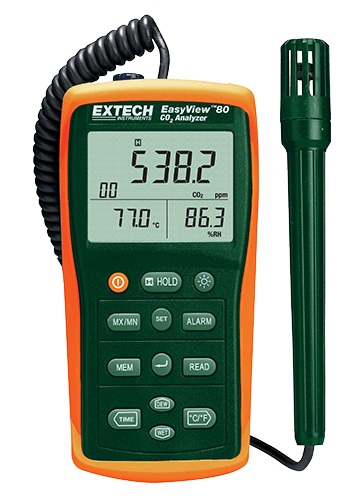

Extech EA80 EasyView™ Tester calitate aer Interior cu Datalogging

Cod: Extech EA80




Brosura produs PDF, 0.18 Mb

Descriere

Measures CO2

The EA80 checks for Carbon Dioxide concentrations using a maintenance-free dual wave NDIR (non-dispersive infrared) CO2 sensor with a range of 0 to 6,000 PPM. It can automatically data log up to 20,000 data sets or you can manually enter up to 99 sets for later recall. Additional features include: auto power off, data hold, max/min with time stamp and alarm. Comes complete with six AAA batteries, Windows 95/98/NT/2000/ME/XP compatible software and an RS-232 interface cable.



  • Checks for Carbon Dioxide (CO2) concentrations
  • Maintenance free dual wavelength NDIR (non-dispersive infrared) CO2
  • CO2 measurement range: 0 to 6,000ppm
  • Temperature measurement range: -4 to 140°F (-20 to 60°C)
  • Humidity measurement range: 10 to 95%RH
  • Continuous (20,000 sets) or Manual (99 sets) datalogging
  • Complete with (6) AAA batteries, RS-232 cable, and Windows® compatible software

Specifications

Range

Resolution

Carbon Dioxide (CO2)

0 to 6,000ppm

1ppm

Temperature

-4 to 140°F (-20 to 60°C)

0.1°F/°C

Humidity

10 to 95%

0.1%

Dimensions/ Weight

5.3 x 2.8 x 1.2" (135 x 72 x 31mm)/ 8.2oz (235g)
