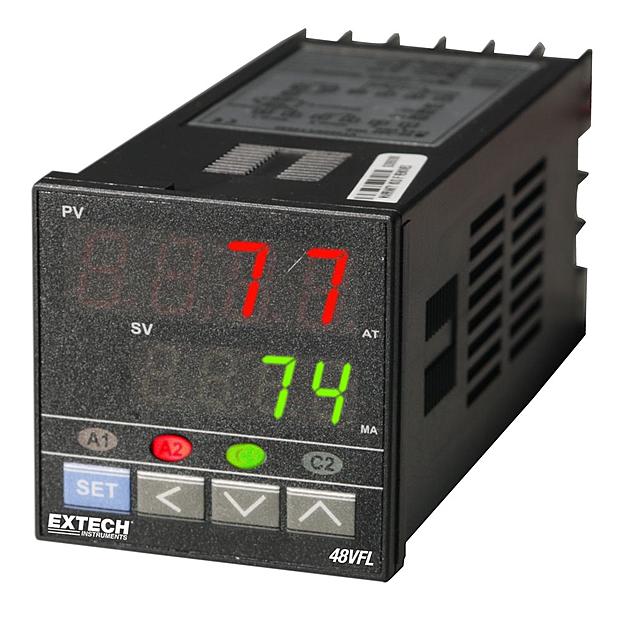

Extech 48VFL11 Controler temperatura cu iesire releu

Cod: Extech 48VFL11




Brosura produs PDF, 0.13 Mb

Descriere

Fuzzy Logic PID, Auto Tuning, and Soft Start features

48VFL11 Temperature PID controller offers Fuzzy Logic enhanced PID and a Soft-Start feature that protects heaters from cold-starts. PID plus Fuzzy Logic tackles even the most demanding applications, eliminating over-shoot, unwanted process fluctuations, and drift. The Soft Start feature is ideally suited for processes, such as those employed in the Thermo-Plastics industry, where careful, exact, and slow heating of product is required. Accepts thermocouple and RTD inputs. Single stage Ramp and Soak program with Ramp-to-Set point Limit that can be combined with the Soft Start feature for critical process demands. Complete with mounting bracket hardware and screw terminals for easy wiring. Also available with 4-20mA output (48VFL13).



Features:

  • One relay output
  • Dual 4-digit LED displays of process and setpoint values
  • User friendly menus and tactile keypad for easy programming
  • One-touch autotuning for quick setup & precise control
  • Fuzzy Logic PID offers intuitive control simulating human control logic
  • Two "Latching" alarm relays standard with 8 Alarm modes
  • Accepts thermocouple and RTD inputs
  • This product is also available with 4-20mA output - 48VFL13
