Dinamometru masurare forta inalta 100kg EXTECH 475055

Cod: EXTECH 475055




Brosura produs PDF, 0.13 Mb

Descriere

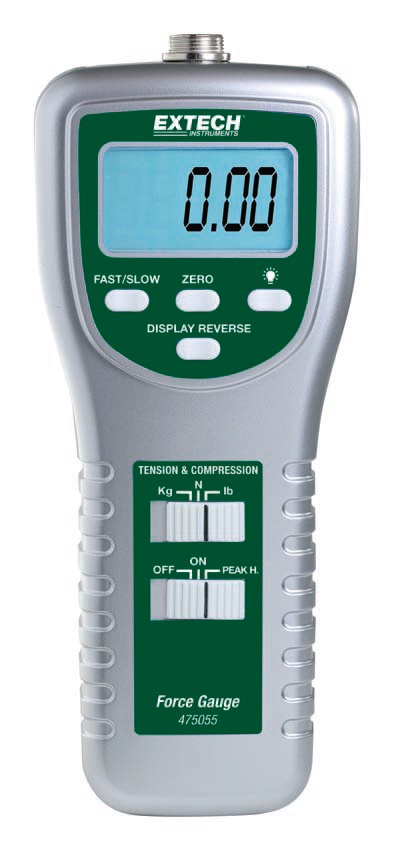

Extech 475055: High Capacity Force Gauge



Wide range force gauge (tension/compression) with 0.5% basic accuracy



475055 is a High Capacity Force Gauge. Measuring ranges from 0.05 to 100-kilograms, 0.05 to 220-pounds, 0.2 to 980 Newton. Basic accuracy of 0.5-percent. Tension or Compression, Peak hold and Zero functions. Positive/Reverse display for easy readability. Large LCD with back light feature. Complete with tension and compression adaptors, 6 AA batteries and case.





  • Ranges: 0.05 to 100kg; 0.05 to 220lbs; 0.2 to 980 Newton
  • Basic accuracy 0.5%
  • Tension or Compression, Peak hold and Zero functions
  • Positive/Reverse display for easy easy readability
  • Large LCD with backlight feature
  • Complete with tension and compression adaptors, six AA 1.5V batteries, and case





Specifications

Range

Measurement Range

220 lbs, 100kg, 980 Newtons

Basic Accuracy (23°C)

±(0.5%rdg)

Resolution

0.05lbs, 0.05kg, 0.2 Newtons

Overload capacity

150kg

Update Rate

Fast mode 0.2 seconds; Slow mode 0.6 seconds

Full scale deflection

<1mm

Transducer type

Load cell

Dimensions/ Weight

Meter: 8.5 x 3.5 x 1.8" (215 x 90 x 45 mm)/ 1 lb (450g)
