Sistem monitorizare retea HFC banda larga multicanal Deviser DS1610

Cod: Deviser DS1610




Brosura produs PDF, 2.06 Mb


Descriere

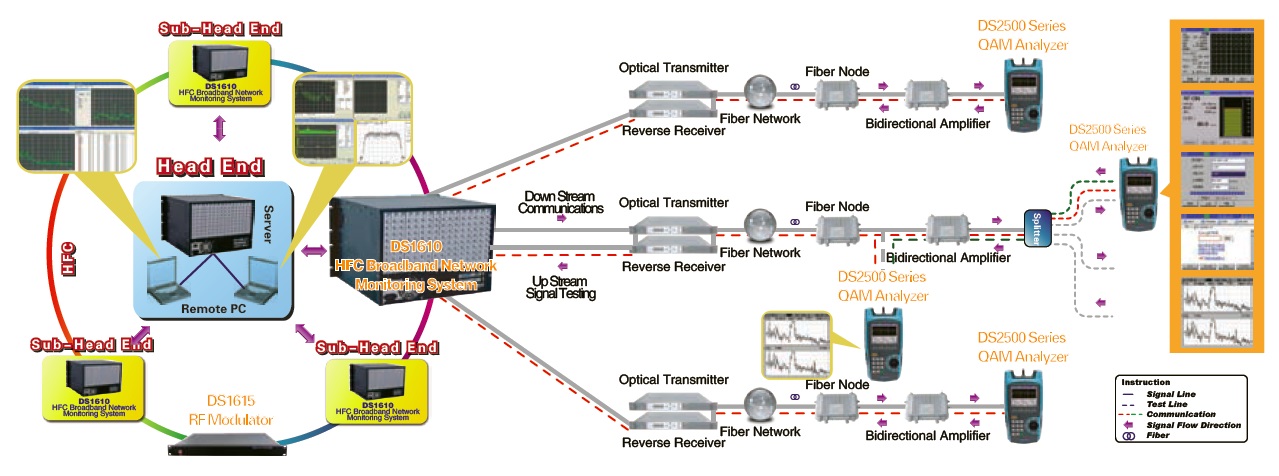

DS1610 monitoring system offers real-time signal monitoring and analyzing on multiple return and forward paths of HFC network simultaneously. The captured results could also be saved and managed for further operations. The operator is able to monitor the entire network on live through a PC located at the head end office or any remote locations.

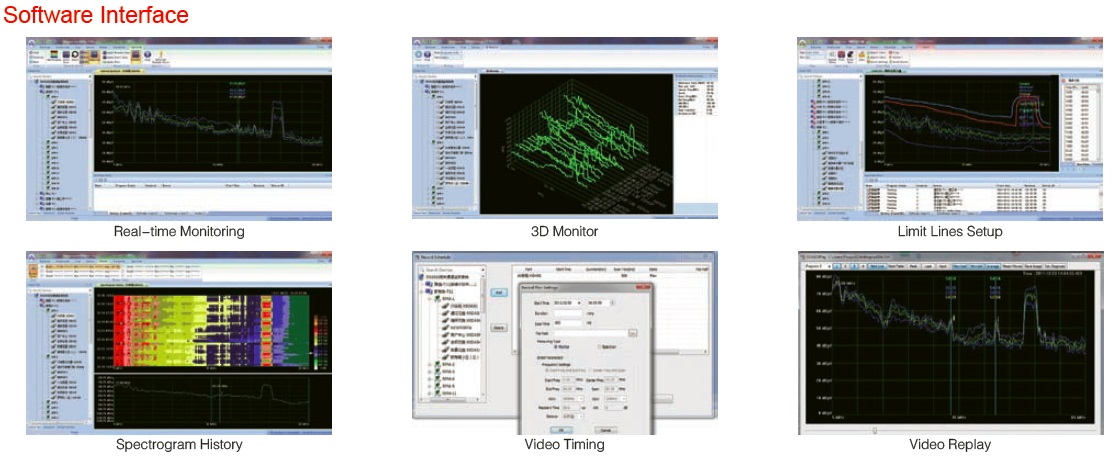

DS1610 system is capable of capturing any transient noise and ingress noise which is less than 1ms.Other key features of DS1610 such as alarm setting, data storage, data analysis, data comparison in 3D and video record would simplify the installation, maintenance and troubleshooting of HFC network.



Key Features

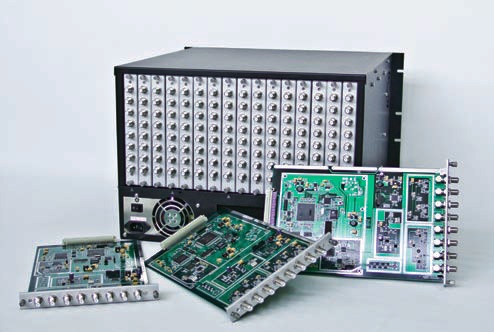

Module designed, with maximum 16 cards and 128 ports in 1 housing
Sweep time = 1 ms
50 dB dynamic range
1 year history data record
24 hours real time sweep and monitor
Remote control
User management could set users with different authority levels



Accesorii standard

System Configuration
Standard Configuration

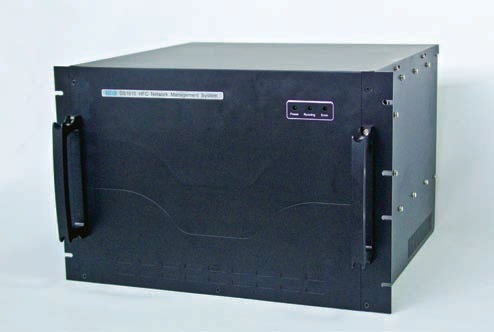

DS1610 Housing with built-in Local Management Software
DS1610 Server Software
DS1610 Client Management Software

Optional Module

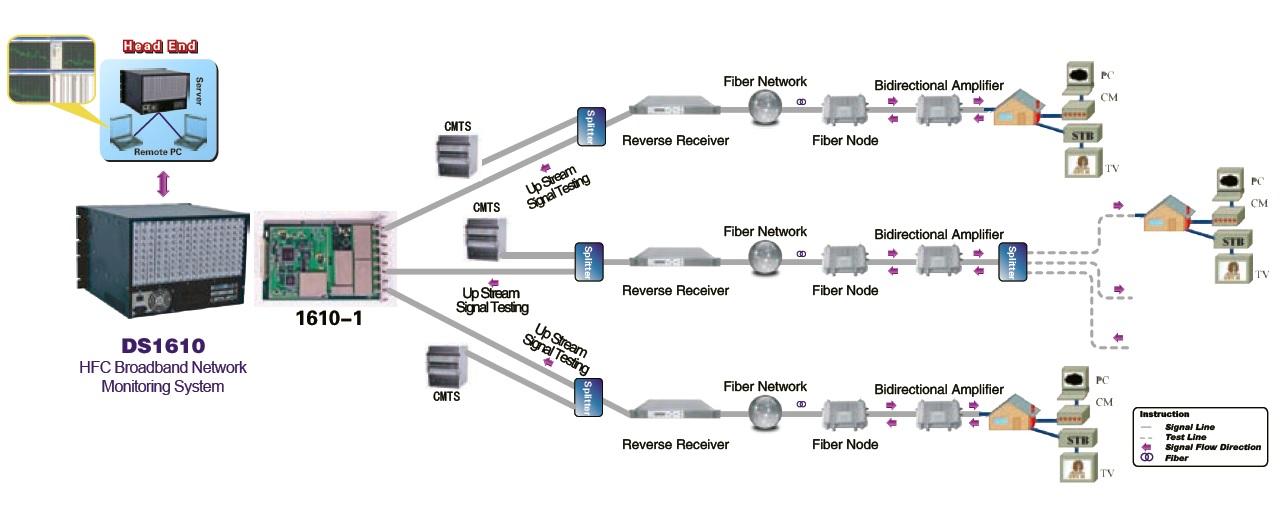

DS1610-1D Return Path Monitor Card
DS1615 RF FSK Modulator

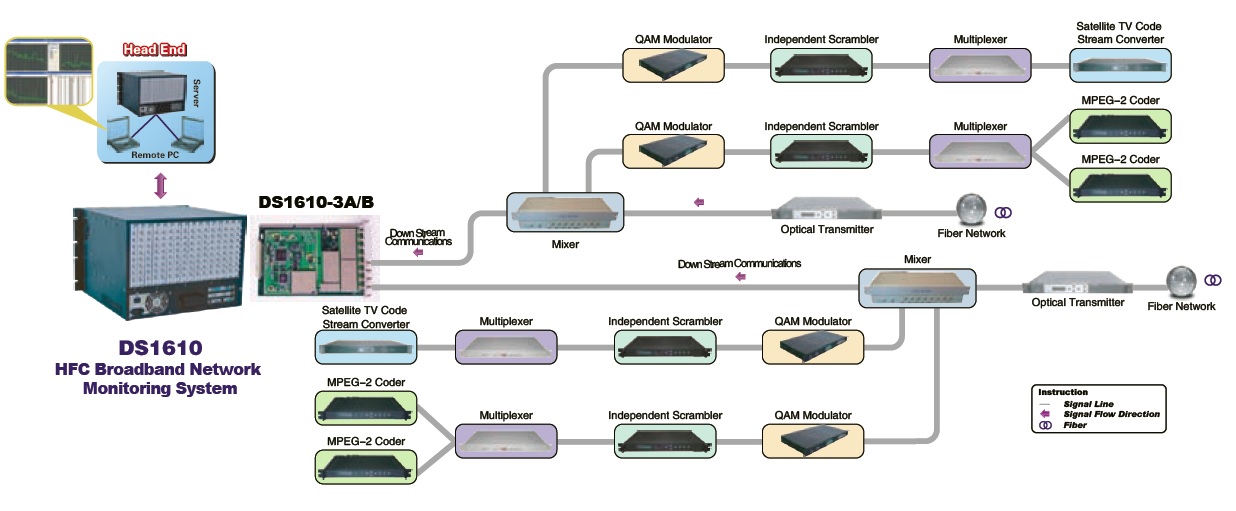

DS1610-3 Forward Path Monitor Card
