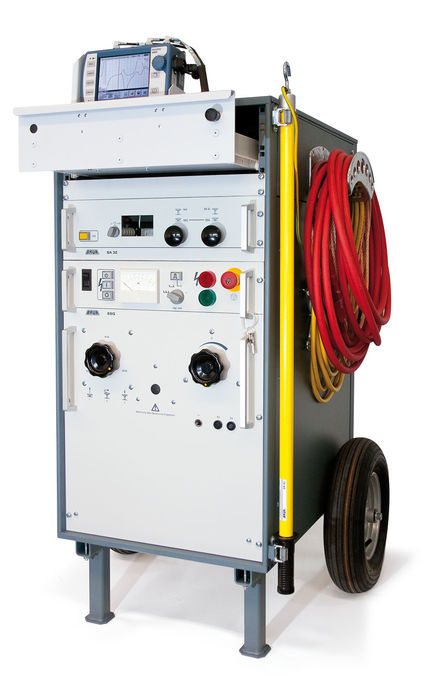

BAUR Syscompact 2000 portable

• 3 voltage shapes in one device: VLF truesinus®, VLF square wave and DC voltage
• For medium-voltage cables of up to 50 kV operating voltage
• Cable testing, fault conditioning, cable sheath testing



• Fast and reliable
• Precise, dependable cable fault location
• High performance high voltage unit
• Integrated proven cable fault pre-location methods



• Testing of medium- and high-voltage cables
• DC voltage testing of up to 70 kV output voltage with positive or negative polarity
• AC voltage testing - up to 55 kV for switchgear, busbars and insulating elements
• Easy-to-maintain 2-piece design



• Initial rapid condition evaluation of switchgear and cable accessories during mains operation
• Ideal for quick checks of MV and HV switchgear



• Cable identification on all types of de-energised cables
• Reliable verification of the cable identification by means
• of the highly precise three-factor-analysis ATP
• Safe cable identification on live low-voltage cables
• Connection technology according to CAT IV/600 V



• Testing as DC or Dc testing device
• Polarity of the DC voltage can easily be reversed
• Robust and durable



• Automatic export of measurement logs as PDF and text file
• Reports in various languages with costomised logo



• Cable and cable sheath testing up to 10 kVC
• Resistance measurement
• Cable and cable sheath fault pre-location with precision measuring bridge
• Adjustable cable sections that can be defined with length, conductor cross-section and material respectively and can be considered in the distance calculation



• Fully integrated proven cable fault pre-location methods
• Surge mode for acoustic pin-pointing
• Easily transportable
• Ideal for locations that are difficult to access



• Automatic or manual impedance adjustment
• Charging unit and rechargeable battery integrated; battery or mains operation
• Continuous or cyclical output
• Two output frequencies selectable
