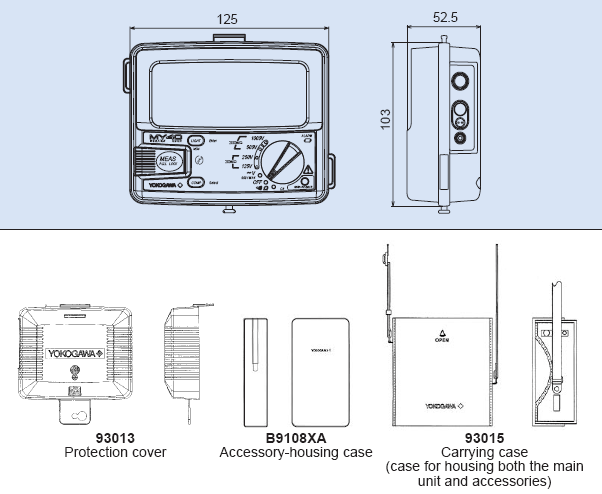

YOKOGAWA Digital Insulation Tester MY40

Code: YOKOGAWA MY40




Datasheet PDF, 0.86 Mb


Description

The MY40 insulation tester is used to measure the Insulation resistance that represents the state of insulation of electric equipment or circuits; It is one of the important measurement parameters in terms of safety and security. The MY40 comes with 4 voltage/resistance ratings on an easy-to-view large display, and incorporates a double-action safety mechanism to keep the user from harm.



Features:

  • 3 1/2-digit LCD;
  • For each rating, you can save as many as 20 measurements at desired memory address numbers.
  • Four AA (R6P) batteries the tester retains the measured resistance for approximately 5 seconds after the MEAS switch is turned off.
