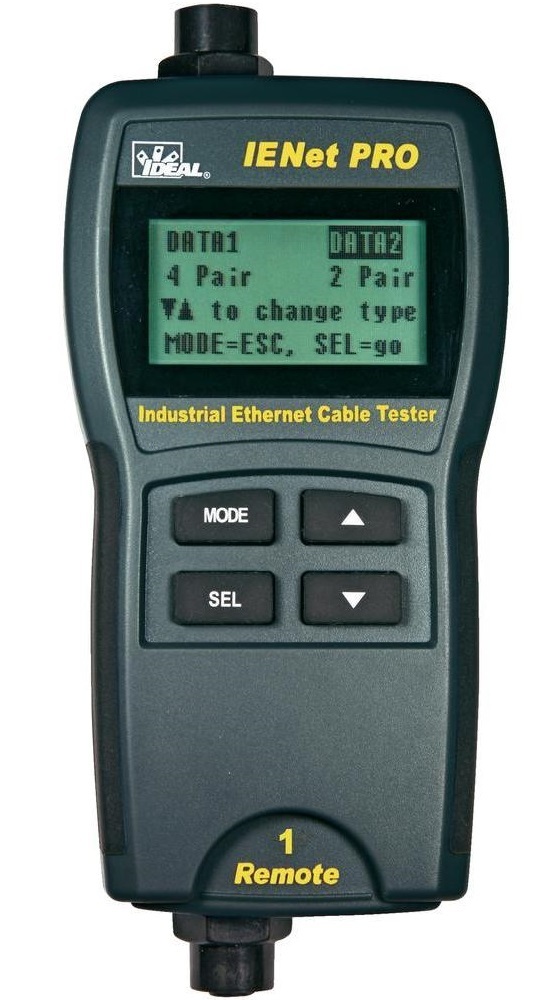

The tester features a unique easy-to-use cable test for 2 pair and 4 pair Industrial Ethernet cabling. With shielded 2 pair, M12 and RJ-45 ports, the IENet™ PRO is compatible with most Industrial Ethernet cabling. Test results are displayed in the PROFINET® Industrial Ethernet required format.

Instantly Verifies Wiring Integrity

With the IENet™ PRO Tester you can now quickly and easily verify wiring integrity and assure proper terminations for a diverse range of industrial cabling.

Simple selection between Voice, 2 and 4 pair Data, and Coax testing functions (Voice and Video/Security tests via optional adaptors)
Tests for opens, shorts, miswires, reversals, split pair (user selectable) and length
Indicates correct wiremap to T568A/B standards for shielded and unshielded cabling
Easy-to-read LCD display with "PASS" or "Miswire" indicator for each test
Identifies presence of voltage on cables
Tone generator supports four different tones making fault isolation easier
Integrated remote unit to make storage and carrying easier
Can support additional optional remotes making it efficient for one person testing
Blinks network link LED for visual cable tracing
Numerical indication for UTP "No Shield" and STP - "Shield" to comply with industrial ethernet PROFINET® requirements

Standard accessories

IENet™ PRO w/single remote 33-772
IENet™ Pro w/eight remotes 33-773
Eight Coax Terminator Kit 33-775
IENet™ Pro Eight Remote Kit (ID 1-8) 33-776
RJ-45 to RJ-11 jack adaptor (2/card) LA-4233
RJ-45 to F-Connector adaptor (2/card) LA-4234
F to BNC Adaptor Kit LA-4173

More products TREND NETWORKS

IDEAL INDUSTRIES 33-929 FIBERMASTER OPTICAL SOURCE

• 850, 1300/1310, 1550 MM/SM light source meter
• Includes FC adapters
• Power LED - lights green when light source is active
• Docks in the bottom of the power meter for easy storage
• Operates on standard AAA batteries, (3)
• Low battery indication

IDEAL INDUSTRIES 33-927 FIBERMASTER OPTICAL POWERMETER

• 850, 1300/1310, 1490 and 1550 wavelength measurement capability
• Power measurement in dBm and mW,
• loss display in dB
• Auto Power Off
• Includes universal adapter
• Operates on standard AAA batteries, (3)

NETWORK TRANSMISSION TESTER - SIGNALTEK NT

• Gigabit performance testing on passive cabling and active networks
• Generates test reports to IEEE 802.3ab standard
• Simulates VoIP/CCTV/Web/IP video network traffic
• Tests connection speed, port ID, ping, traceroute, IPv4/IPv6
• Advanced PoE/PoE+ testing

IDEAL INDUSTRIES VDV-II PRO R158003 CABLE, VOICE, VIDEO TESTER WIREMAPPER

• Coax, 6Pin (RJ11/12), 8Pin (RJ45) Connectors for Copper Cable Testing
• Wiremap for Miswires, Split Pairs, Shorts and Opens
• Analog Tone Generator
• Hub Blink
• Cable Length
• Distance to Open / Short (TDR)
• PoE Detection with Voltage Information
• Media Service Detection
• Ethernet Detection with Network Rate and Duplex Information

IDEAL INDUSTRIES 33-960 OTDR FOR SM AND MM OPTICAL FIBER

• Quad OTDR with 850/1300/1310/1550nm
• Dynamic range [dB] : 24 / 25 / 32 / 30 dB
• Short Attenuatioand Event Dead Zones
• Fast Data Acquisition
• USB port
• Certifying OTDR Option-for tier-2 certification

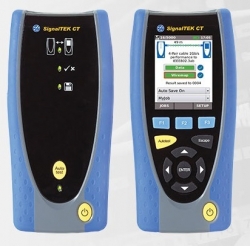

IDEAL INDUSTRIES SIGNALTEK CT R156004 GIGABIT DATA CABLE TRANSMISSION NETWORK TESTER
