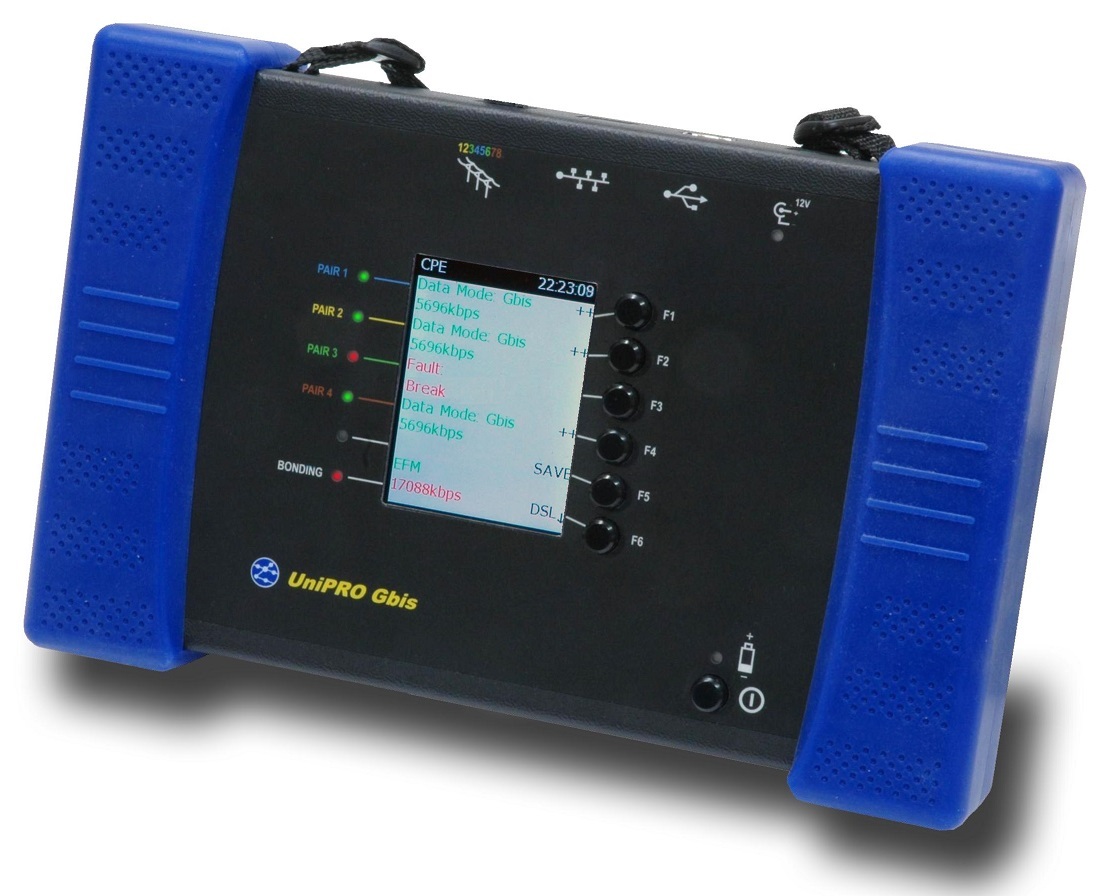

UniPRO Gbis is a revolutionary tool for testing all types of G.SHDSL service. It combines a state-of-the-art DSL engine with a range of useful copper layer fault checks into a compact, hand-held, battery-powered tester.

Designed with the field engineer in mind, UniPRO Gbis provides the ultimate in ease of use, pinpinting common network faults and checking service performance directly from switchon with minimal setup. It supports the latest G.SHDSL standard, G.SHDSL.bis, as well as legacy versions of the technology, which are widely deployed for the provision of multi-pair DSL access to business applications. Up to 4 copper pairs can be tested simultaneously and can be bonded together using ATM (Asynchronous Transfer Mode) or EFM (Ethernet in First Mile) encapsulation to provide up to 22.784Mbps of symmetrical bandwidth.

UniPRO Gbis can be programmed with acceptance targets for the main G.SHDSL performance parameters, providing a simple Red/Green, Pass/Fail test. Results can be stored in the tester and simply uploaded to a USB memory stick for analysis and reporting in a PC environment.

With its optional CO (STU-C) emulation, UniPRO Gbis is equally useful in the Distribution Frame, at the street cabinet or in the customer’s premises.

Standard accessories

RPB00000 UniPRO Gbis (CPE only)

RPBCP000 UniPRO Gbis CO Plus (CPE + CO)

Mains PSU / charger with UK and Euro mains leads RJ-45 DSL cable

Plugs / clips DSL cable User guide on CD

Quick Reference Card (English / French) Carry bag

Recommended options

More products TREND NETWORKS

IDEAL INDUSTRIES VDV-II R158000 CABLE VOICE VIDEO TESTER WIREMAPPER

• VDV II performs standard tests for copper cabling
• Coax, 6Pin (RJ11/12), 8Pin (RJ45) Connectors for Copper Cable Testing
• Wiremap for Miswires, Split Pairs, Shorts and Opens
• Analog Tone Generator
• Voltage Protection
• Shielded Cable Testing
• Single Screen Results

IDEAL INDUSTRIES 33-931 FIBERMASTER OPTICAL FIBER TESTER KIT : POWERMETER + LIGHT SOURCE

• Power Meter: 850, 1300/1310, 1490 and 1550 nm measurements
• Light Source: 850 /1300nm (LED) as well as 1310/1550nm (Laser)

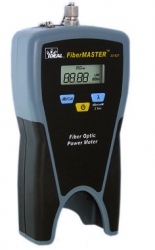

IDEAL INDUSTRIES 33-927 FIBERMASTER OPTICAL POWERMETER
