MPEG-2 Transport Stream Recorder, Processor, Player Promax TG-130

• FREQUENCY BANDS: UHF from 470 MHz ~ 862 MHz
• 1 W RF power amplifier for COFDM signals
• both for single carrier or multicarrier system
• provides an amplified output of 30 dBm (137 dBµV)
• preserves the original signal quality and maintains a low noise levels



• remote control and measuring of Digital Terrestrial Television (DTT)
• compact module, designed for an easy integration
• operating on its own, controlling the quality of service parameters for up to 6 multiplex
• Warning and Alarm that can activate switches



• FREQUENCY MARGIN: From 50 MHz (C-2) to 860 MHz (C-69)
• INPUTS: 8 inputs Female BNC, 75 ? impedance
• RF OUTPUT: 1 female BNC output, 75 ? impedance
• output designed to mix output RF signals of COFDM modulators and transmodulators with DTT channels



• install, configure, adjust, modify and analyse any kind of actual MATV and SMATV installation
• high definition (HD) terrestrial television receiver and satellite television receiver is provided
• high definition and video compression (MPEG-2 and MPEG-4)
• DVB-S2, transmodulation, TDT Premium, IPTV, Fiber Optics, FTTx
• DTT signals propagation, Gap-Fillers, transport stream (TS) creation
• familiarity with PID, PMT NID
• configuration and testing of modulation parameters



• RF INPUT Frequency margin: From 470 to 862 MHz, From 50 to 1000 MHz(other options)
• FO OUTPUT Wavelength: 1550 ±20 nm (other wavelength as option)
• Fibre: 9/125, SMF28 or equivalent
• Connector: SC/APC
• optical links over distances up to 20 km



• RP-100: 2 generated carrier pilots
• RP-100Q: 2 generated carrier pilots
• 5 MHz to 100 MHz Frequency Range
• 90 to 110 dBµV (30-50 dBmV) adjustable in steps of 1 dB output level
• select independent frequencies for each pilot
• internal rechargeable battery



• incorporated fault simulator module permits to practice units diagnosis and repairing methods
• designed from a stereo radio tuner equipped with the RDS system
• most advanced reception circuits



• suitable equipment for the learning of the flat screen television sets operation
• equipped with TFT-LCD and Plasma technology
• allows the student to become familiar with Digital Terrestrial Television (DVB-T)
• includes a failures generation module



• integrated DVB-T tuner that allows the TS capture in real time

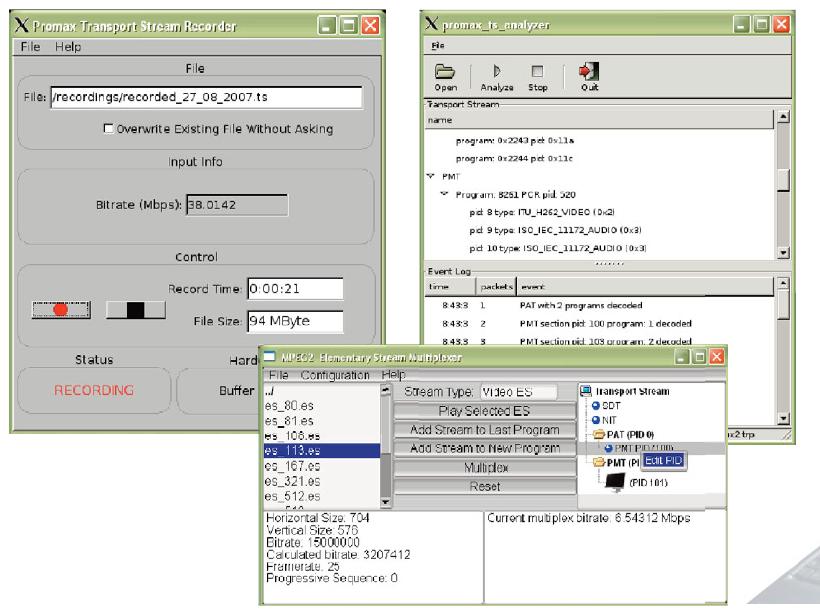

• record a transport stream continuously for several minutes and then play it back
• work in the field where maybe it is not possible to find electricity available
• ASI Transport Stream Input: Maximum data rate 40 Mb/s
• RF Input: DVB-T from 35 to 100 dBµV
• ASI & SPI parallel Transport Stream Output: Maximum data rate 32 Mb/s
• Storing Capacity: Memory card 4 GB, 20 minutes approx (20 Mbits/s)



• - Kevlar scissors
• - Fibre disposal unit
• - Isopropyl alcohol cleaning wipes (x50)
• - Connector cleaner
• - SC/APC pre-polished connectors
• - Mechanical splicer
• - Mini Visual Laser Source
• - LED headlamp
• - Transport and storage suitcase
