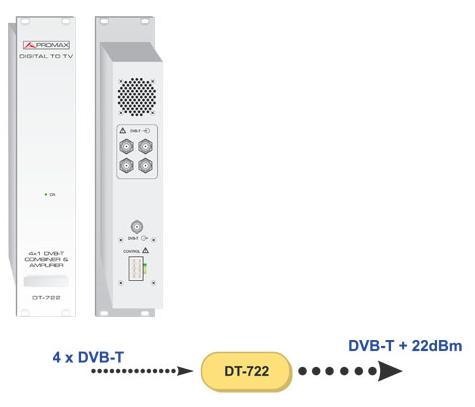

The DT-722 is a combiner with 4 inputs and an output designed to mix output RF signals of COFDM modulators and transmodulators with DTT channels available in the area.

The system provides an amplified output of 130 dBµV (+22 dBm) frequently required in SMATV systems.

This is a solution of higher quality than those that often use Z connections, given that preserves better the original quality and maintains lower noise levels.

FREQUENCY MARGIN	From 50 MHz (C-2) to 860 MHz (C-69)
INPUTS	4 inputs Female BNC, 75 ? impedance
RF OUTPUT Maximum output level	1 female BNC output, 75 ? impedance 1 channel at 130 dBµV 2 channels at 127 dBµV 4 channels at 124 dBµV 8 channels at 121 dBµV 16 channels at 118 dBµV
CONFIGURATION AND POWER SUPPLY	Through the DT-800 control and power supply unit. Control can be done remotely from a PC.

Recommended options

DT-800B	Control unit and power supply.
DT-802	Control unit and redundant power supply modules.
DT-900	Rack and wall mounted structure.
DT-900B	Rack mounted structure.
DT-901	Empty module plates..
DT-902B	Power CAM modules for smart cards..
CC-043	Supply and control cable with 3 connexions for DT-800B (included)
CC-044	Supply and control cable with 4 connexions for DT-800B (included)
CC-143	Supply and control cable with 3 connexions for DT-802 (included)
CC-144	Supply and control cable with 4 connexions for DT-802 (included)
OP-XXX-V	Output in the range 170-650 MHz for modules with DVB-T..
OP-800-P	Option required to use DT-800B with 3 x DT-730 modules
OP-212-D	Dual independent output for DT-212B
OP-504-S	TS-ASI output option for DT-504B

	RECEIVERS WITH ASI-TS OUTPUT
DT-302	Dual DVB-S/S2 receiver with CAM, ASI-TS output.
DT-312	Dual DVB-T receiver, ASI-TS output.
DT-324-M	IP receiver to ASI-TS output (MPTS).
DT-324-S	IP receiver to ASI-TS output (SPTS).

	IP STREAMERS
DT-421-M	IP Streamer. ASI-TS inputs, IP output (MPTS)
DT-421-S	IP Streamer. ASI-TS inputs, IP output (SPTS)

	COMBINERS - AMPLIFIERS
DT-700	4x1 quadruple DVB-T combiner .
DT-710	8 input DVB-T combiner with a 117 dBuV (+10 dBm) one single output.
DT-722	4 input DVB-T combiner with a 129 dBuV / 250 mW (+22 dBm) one single output.
DT-730	DVB-T amplifier with a 137 dBuV / 1 W (+30 dBm).
DT-610	Optical transmitter module
DT-620	Optical receiver module
