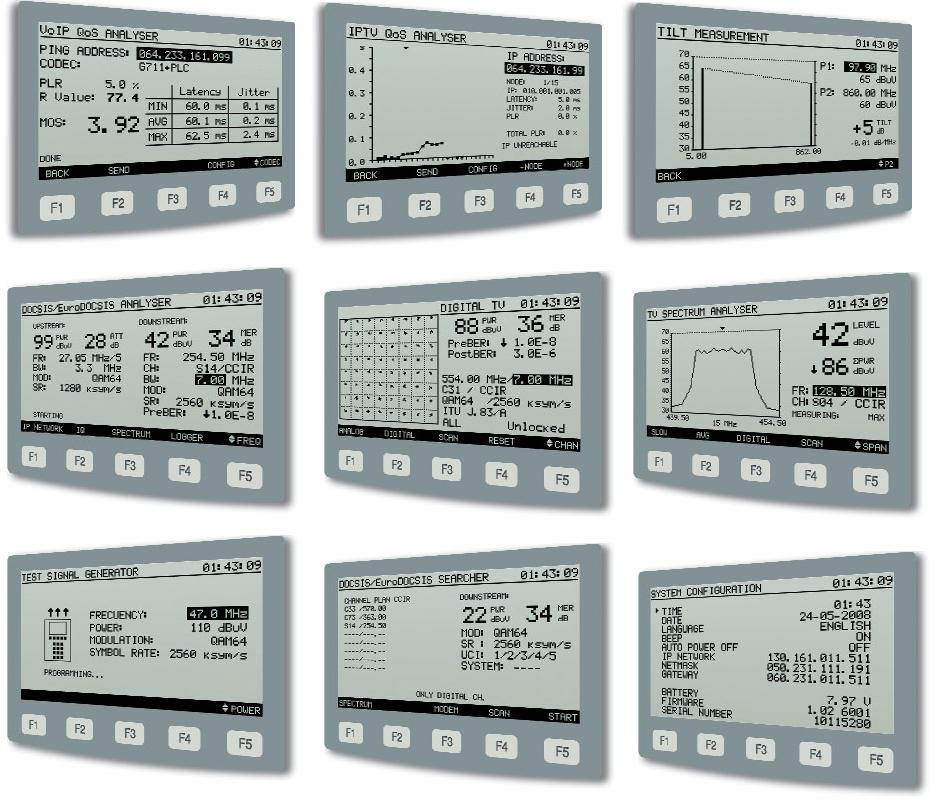

PROMAX-27 is an analyser for the installation and maintenance of video and high speed data interactive services over TV networks based on the EuroDOCSIS and DOCSIS 2.0 standard. It allows the qualification of VoIP and IPTV services and it includes serveral test modes such as the TILT function that allows equalisation of the line.

It includes the LOGGER function, which allows to take and save to the internal memory a number of measurements, so they can be analysed, transferred to a PC or printed.

Downstream

Channel power measurement
Quality test: MER, BER, Pre BER and Post BER
Constellation diagram
Full band power
Frequency, channel and active channel plan
Modulation type and symbol rate

Upstream

Power measurement
Attenuation at CMTS
Frequency and bandwidth
Modulation and symbol rate
Communications test

Communications Test

(in Registered mode)

IPTV analyser (television over IP)
VoIP analyser (voice over IP)
IP report
Ping test
Ratio of lost packets
