Analogue TV Video Signal Pattern Generator PAL/ NTSC/ SECAM Promax GV-898+/ GV-798+

Code: Promax GV-898+/ GV-798+




Datasheet PDF, 0.26 Mb

Description

These TV signal generators have the widest selection of functions for an instrument of this type, including the possibility to generate YPb Pr signals. Multistandard and multisystem, 37 different patterns, 16:9 and 3:4 formats, VITS & WSS, teletext, VPS and PDC. Possibility to display messages (clock, text). All common interface connectors such as S-VHS or SCART are available; the RS-232 interface is specially useful being bidirectional to control the instrument and for data exchange. Output level of up to 80 dBmV with a progressive attenuation in steps of 1 dB. Specially indicated for those applications where a high quality signal is required, such as adjustment and verification lines, production studios, industrial applications, investigation centres, etc.





  • GV-898+ : Vestigial Side Band Modulation - VSB
  • GV-798+ : Double Side Band Modulation - DSB
  • YPbPr outputs
  • External audio / video inputs
  • 4:3, 16:9 & 14:9 formats (WWS signals)
  • NICAM / Zweiton sound
  • VPS & PDC control signals
  • RS-232 remote operation
  • Multi-standard and multi-system analogue TV signals
  • Test signals (VITS)







MULTISTANDARD

PAL / PAL60 / SECAM / NTSC

CONFIGURATIONS

32 memories

MODULATION

Vestigial Side Band (GV-898+)
Double Side Band (GV-798+)



Recommended options

OP-898-01  Logotype programming for GV-898+.

OP-898-M   Mobile pattern for GV-898+ (replaces logotype and teletext).

OP-798-01  Logotype programming for GV-798+.



More products PROMAX

TRANSMODULATOR DVB-S -> DVB-T PROMAX DT-202

• DVB-S FI INPUT: 2 independent DVB-S FI inputs
• RF OUTPUT: 2 combined DVB-T multiplexes
• PID Filtering with Filtering Table up to 32 PID
• Measurement: Bitrate of the output multiplex
• includes an internal combiner that delivers a single DVB-T output with high C/N



COFDM MODULATOR DVB-ASI/ SPI -> DVB-T PROMAX MO-160/161

• MPEG-2 TS INPUT: 2x DVB-ASI, 1x DVB-SPI
• IF OUTPUT: Fixed at 36 MHz
• RF OUTPUT: 475-875 MHz (45-875 MHz for MO-161 model)
• CONSTELLATIONS: QPSK, 16QAM, 64QAM

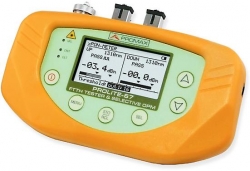

SELECTIVE OPTICAL FIBER POWER METER FTTX-XPON PROMAX PROLITE-67
