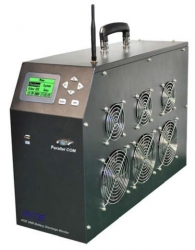

Battery Charger/ Discharger Tester Pite 3930

• Light weight, most models are portable within 20kg
• Suitable for all standby batteries and power batteries: 2V, 6V and 12V
• Multi-function in one unit: it uses 3-phase charging, constant current discharging, cell test
• optional online monitor and battery activation
• State-of-the-art technique of soft-off for battery charging
• Graphical display, showing test result with curves
• Direct USB drive for convenient data transfer to PC
• Over voltage protection and under voltage warning function



• Smart, portable and easy touch-screen (TFT) operation
• Single-phase and three-phase measurement, two in one
• Combination of electricity meter tester and power quality analyzer
• Online monitor for real-time data testing and comparison
• Safe and quick measurement for electricity anti-theft
• Test result playback on screen and transferable to PC for report printing, can record up to 1000 records
• User-friendly interface and vivid screen display, simplify on-site testing power meters
• Test active energy, reactive energy, harmonic active, harmonic reactive and power factor



• LCD: 3.5" 320 x 240 TFT touch screen
• Measurement Range: Vrms 10..700V
• Arms: 5A, 10A, 100A, 1000A, 1500A and 3000A(with relative current clamps)
• Could test 3-phase volt, null line volt, 3-phase current, null line current
• Digital oscilloscope, checking waveform for voltage and current signal
• Power testing: 3-phase apparent power, active power, reactive power, power factor, and 3-phase electric power



• Single Phase Meter Tester
• 20Arms, 60Arms, 100Arms Current Testing Ranges
• 10~500Vrms Voltage Range
• Frequency
• Phase
• Active, Reactive power
• Active, Reactive energy
• Power factor
• 320*240 3.5’ TFT LCD touch-screen
• USB port



• Small weight, portable unit with carrying case
• It sets 4 conditions for auto shut-down of discharge
• Parallel connection of two units for mass discharge
• Real-time display of voltage for each cell with DAC
• Accurate data results and vivid waveforms
• Auto sorting for lag-out batteries during discharging
• AC & DC power supply modes for different needs
• Direct USB drive for convenient data transfer to PC



• designed for continuous, long term and on-line monitoring of fault gases dissolved in oil
• provides readings of gas level, gas trending and alarming
• Hydrogen H2
• Carbon Monoxide CO
• Acetylene C2H2
• Ethylene C2H4



• Small size, portable and user-oriented
• Applicable to single cell of 2V, 6V and 12V
• 3 functions in one: charging, discharging and activation
• These functions could be used separately or comprehensively
• Testing waveform playback function
• Direct USB drive for data transferring to PC
• Powerful PITE DataView software



• Touch-screen (TFT) and keyboard synchronous operation
• Combination of electricity meter tester and power quality analyzer
• Test all metering units and power meters of both high and low volt under 10KV
• Com port: USB port
• Safe and quick measurement for electricity anti-theft meter error



• LCD: 5.7" 320 x 240 TFT touch screen
• Measurement Range: Vrms 10..700V
• Arms: 5A, 10A, 100A, 1000A, 1500A and 3000A (with relative current clamps)
• Up to 50 times harmonic testing with frequency spectrum graph
• Power testing: 3-phase apparent power, active power, reactive power, power factor
• Testing for wave motion, short-time flicker and long-time flicker
• Could have long-time record for basic (stable) power quality parameter



• ground fault locator of DC leakage current
• pinpoints faulty grounding where electrical lines have breakage and current lost to the ground
• different sizes of current detector for different environments application
• Adjustable output frequency on signal receiver effectively avoids interference from DC system itself
• detecting grounding resistance and distributing capacitance
• Signal-generator with adjustable output voltage (24V, 48V, 110V and 220V)
• output frequency (0.5~1000Hz)
