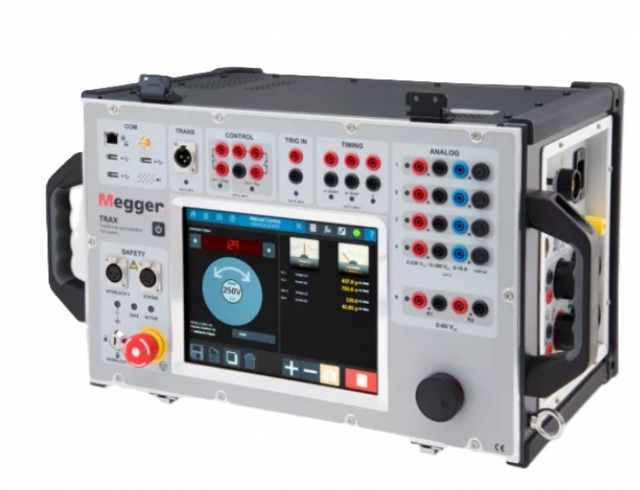

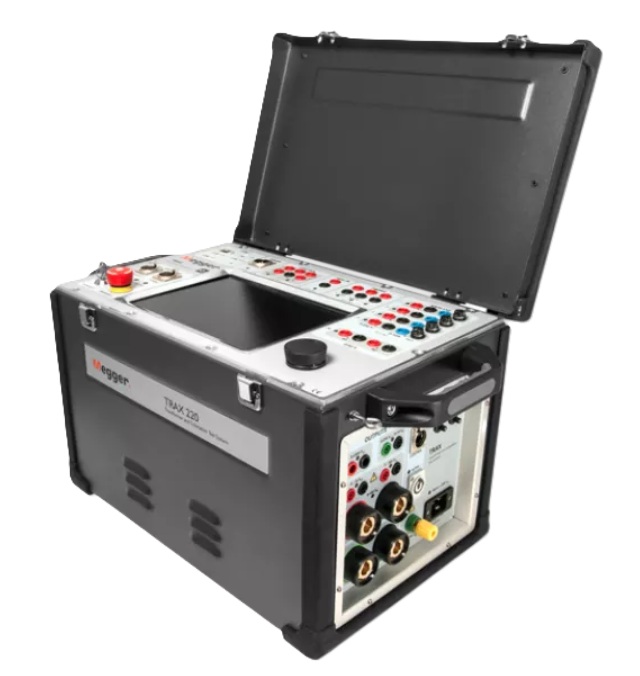

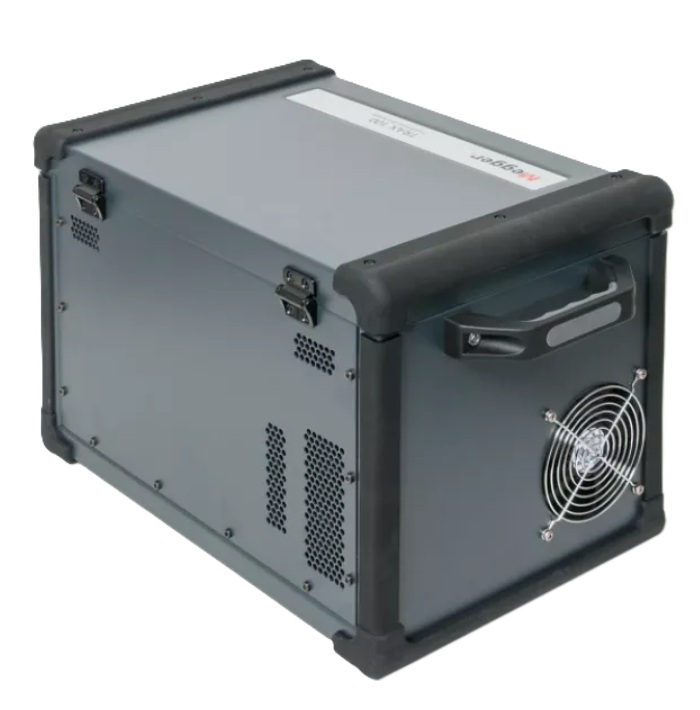

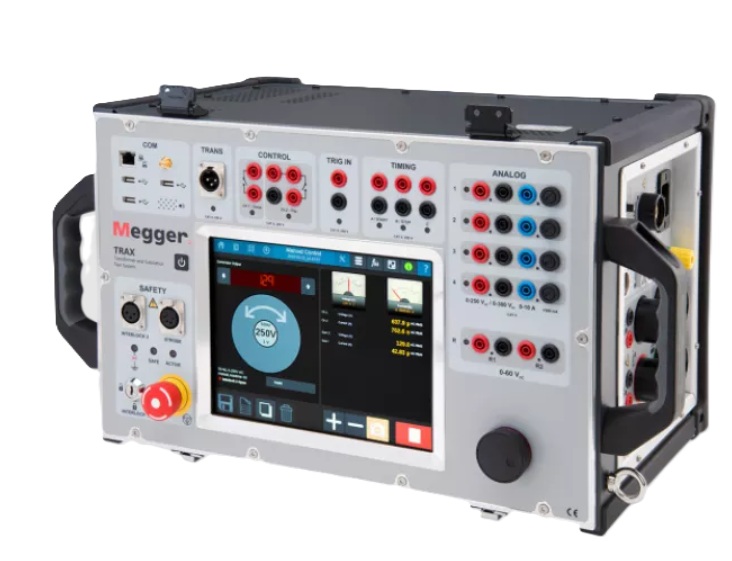

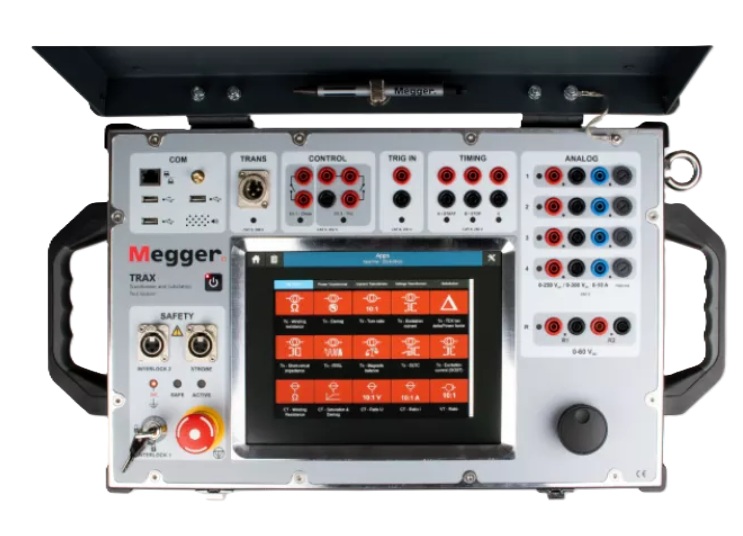

MEGGER TRAX Multifunction Transformer Test set for Capacitance and Dissipation Power factor

Code: TRAX TRAX280 TRAX279 TRAX220 TRAX219



Datasheet PDF, 1.15 Mb
Datasheet PDF, 10.6 Mb
Datasheet PDF, 0.41 Mb
Datasheet PDF, 0.71 Mb
Datasheet PDF, 0.5 Mb
Datasheet PDF, 0.63 Mb


Description

TRAX Multifunction transformer and substation test system
Portable and compact system packed with features that maximise asset condition awareness
The TRAX is a decisively balanced multifunctional instrument that provides desirable outputs/sources while avoiding excessive weight and preserves easy usability while providing ample versatility

Replaces the need for multiple test sets
Powerful, portable and compact system
Reduces user training and testing time
Extend the life of power transformers
1 Hz insulation condition testing
Manage and analyse test data

About the product
TRAX is not just a multifunctional test instrument, but many intelligent instruments in one. The software includes several apps, making it fast and easy to perform a large range of different tests. The hardware,  range of cables and accessories offers unmatched flexibility, making the TRAX an efficient and time-saving system.

TRAX is packed with functionalities to make the test engineer’s task easier and quicker. For example, the 100 A true DC test current with a 50 V compliance voltage for winding resistance measurements or the 250 V AC voltage for turns ratio measurements. Also, the adaptive technique for the fastest and most efficient demagnetisation of a transformer core and the patented technique for acquiring authentic, dynamic resistance measurements on on-load tap changers to determine the real magnitude of transition resistances and transition times. TRAX also features 12 kV power factor/tan delta testing, patented temperature correction, voltage dependence detection, and narrowband dielectric frequency response (NB DFR) testing, making it a robust transformer test system.

TRAX includes Megger's market leading circuit breaker testing technology and is the only multifunctional test set on the market that offers the following tests:

Timing test (O, C, OC, CO and OCO)
Coil supply voltage (Station voltage)
Pre-insertion resistance (PIR)
Open coil current
Breaker analysis graphs (timing, voltage, current)
TRAX offers full manual control of inputs and outputs - a unique tool for immediate troubleshooting. Routine procedures can be reproduced or modified using the manual control features to vary voltage, current, and/or frequency. TRAX is a portable metrology laboratory ideal for advanced users, research institutions, and root cause analysis specialists.

Manual control gives you access to control and operate:

10 generators (AC and DC; voltage and current)
6 measurement channels (AC and DC; voltage and current)
Electrical formulae calculator
Real-time oscilloscope

Technical specifications
Input voltage 100 - 240 V, 50/60 Hz (±10%)
Max output current (DC) 100 A (2 min), 70 A (continuous)
Test type Complete transformer test systems
Test type Capacitance and dissipation/power factor

Video MEGGER TRAX








More products MEGGER
