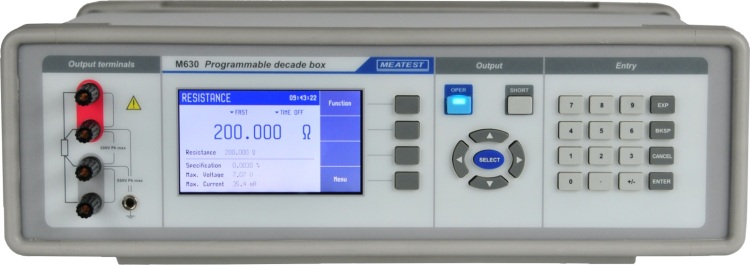

Precision Programmable Resistance Decade Box Meatest M630

Code: Meatest M630



Datasheet PDF, 0.2 Mb


Description

  • Resistance range 1.000 00 O - 1.200 000 MO
  • Accuracy 0.003%
  • Maximal voltage 200Vpk
  • Resolution from 10 µO

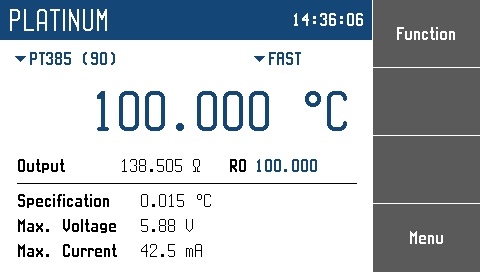

  • Range of Pt sensor temperature simulation -200°C - +850°C
  • Connection 2, 3, 4-wire

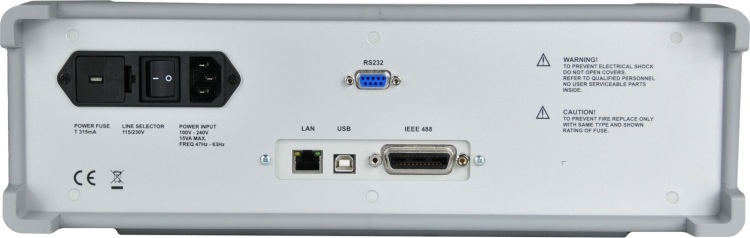

  • Remote control RS232, optionally USB, IEEE488, Ethernet


Models

M630 - 16 O - 400 kO (RTD simulator)

M630A - 1 O - 1.2 MO



Description

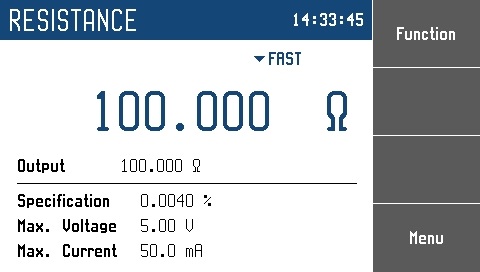

Model M630 is high accuracy resistance decade box with range from 1 O to 1.2 MO. Basic accuracy is 0.003 %, best resolution on the lowest range is 10 µO. Decade is formed from high stable foil resistors switched with combination of relays. Built-in software contains function of RTD temperature sensor simulation (temperature setting in degree of Celsius or Fahrenheit). Instrument can be controlled via RS232, USB, LAN or GPIB interface. Decade use internal power supply with very low noise level.



Typical use

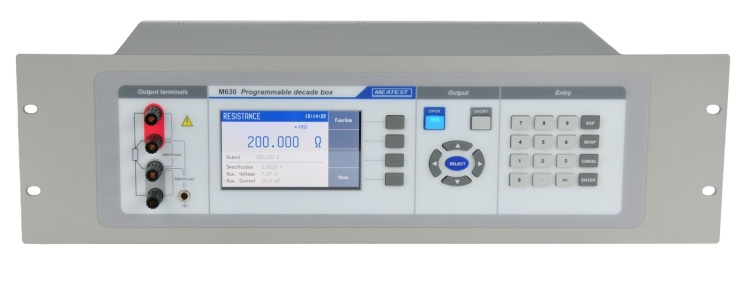

Resistance decade is determined for calibration laboratories for ohmmeter and multimeter testing and for industry as device for quality testing as well. Decade can be ordered as 19" module for easy assembling into a 19" rack. Module height is 3HE.



Standard accessories

  • Programmable Decade Box M630
  • Cable RS 232
  • Application software
  • User’s manual


Recommended options

Bus M630-V1xxx - RS232

M630-V2xxx - RS232, USB, LAN, GPIB

Housing M630-Vxx0x - table version

M630-Vxx1x - module 19", 3HE
