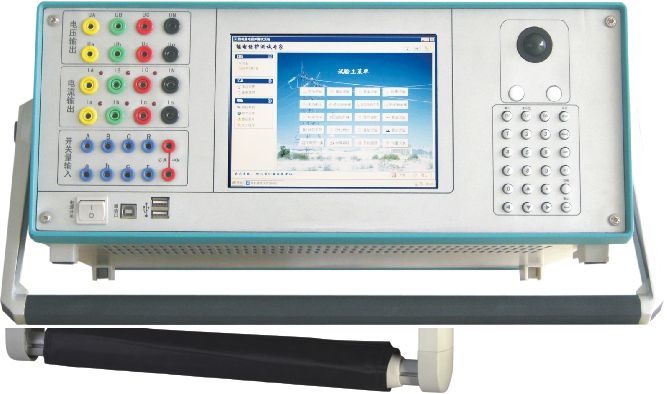

TE5812 Microprocessor-based Protective Relay Tester can output high-precision six-phase AC/DC voltage, current source, applicable to any microprocessor relay protection testing; uses Windows XP user interface, large color display directly, touch mouse, makes test easier.In accordance with IEC standards IEC 60255-11 2008(Ed.2.0) Measuring relays and protection equipment-Part 11.

(1)Six-phase current, six-phase voltage simultaneous output.
(2) Control board, with DSP + FPGA structure, 16-bit DAC output, can produce 2000 high-density sine wave on the fundamental points of every cycle. As a domestic tester, it represents the highest level, greatly improved waveform quality and increase the accuracy.
(3) Standalone operation, built-in high-performance industrial computer, dominant frequency 300 ~ 600MHZ, 128M memory, 12G hard disk drive, running Windows XP operating system, panel with advanced stainless steel keyboard and touch mouse, 8.4 inches TFT true color LCD.
(4) This device can test a variety of relay protection and automatic safety devices, and can simulate complex transient, permanent, transitional fault for the full group equipment tests, also can save real time test data, display vector graph, drawing all kinds of curves and online print reports.

Power supply	AC220V±10%; 50Hz 10A
Executive Standard	IEC 60255-11_2008(Ed.2.0) Measuring relays and protection equipment-Part 11
AC Current Source	Amplitude range: 6�(0-30A)Accuracy: 0.2%
	Maximum six-phase current parallel output: 180A
	Permit value for long-term work of phase current: 10A
	Power: 300VA/phase
	Maximum power for six-phase parallel:900VA
	Maximum allowed working hours for Six-phase parallel output:10s
	Frequency range: 0--1000Hz;Accuracy: 0.001Hz
	Harmonic times: 2-20 orders ; Phase: 0--360° ;Accuracy: 0.1°
DC Voltage Source	Phase voltage output amplitude: 0--±150V ;Accuracy: 0.2%
DC Voltage Source	Line voltage output amplitude: 0--±300V
Time Measurement Range	Range: 1ms~9999s
Time Measurement Range	Measurement accuracy: 1ms
DC Current Source	Amplitude: 30A/phase
	Power: 300VA/phase
	Accuracy: 0.2%
AC Voltage Source	Amplitude range: 6 �(0--125V) ; Accuracy: 0.2%
	Line voltage range: 0--250V
	Phase voltage /line voltage output power: 75VA/100VA
	Frequency range: 0--1000Hz ;Accuracy: 0.001Hz
	Harmonic times:2-20 times
