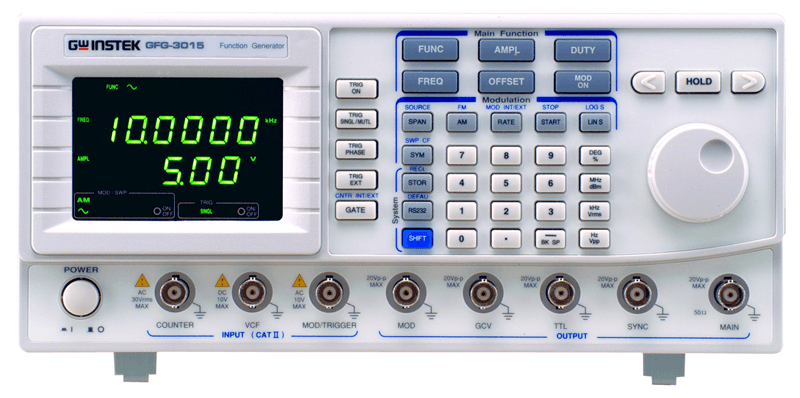

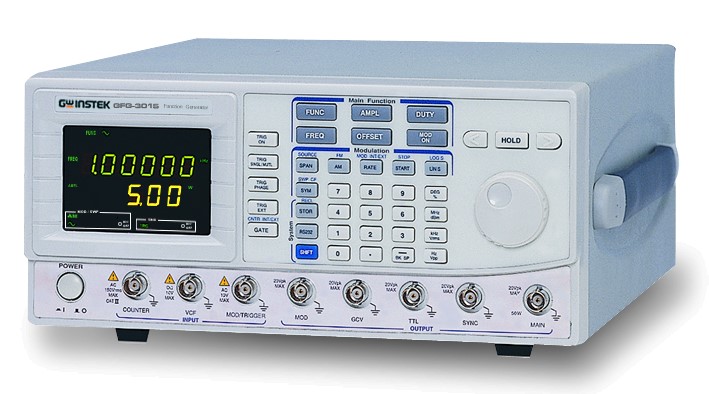

GOODWILL INSTEK GFG-3015

Code: GOODWILL INSTEK GFG-3015




Datasheet PDF, 0.6 Mb


Description

The GFG-3015 is a versatile and high precision programmable function generator, providing stable and accurate signals at 15MHz frequency range. Powered by the Frequency Feedback technology, the GFG-3015 delivers the frequency accuracy as low as 0.02% and maximum resolution at 10mHz. 10 sets of front panel setup memory make it easier to output the specific signal as pre-defined. Other functions include AM/FM, Cate, Burst, Trigger, 5 sets of standard waveforms, 150MHz counter, VCF control, and dedicated channels for different outputs. The GFG-3015 provide exceptional values to users in the educational field as well as repire service, production testing, and development lab.



Features:

  • Frequency Range 0.01Hz ~ 15MHz
  • Maximum Frequency Resolution 10mHz
  • Dual Displays Indicate Frequency and Amplitude
  • Built-in 6 Digits Counter up to 150MHz/High Resolution
  • Output Waveform : Sine,Square,Triangle,Ramp,Pulse,Sweep,Gate or Burst
  • INT/EXT AM/FM Modulation
  • GCV Output for Synchronization
  • Output Overload Protection
