Analog Oscilloscope 2 x 50 MHz GW Instek GOS-6051

Code: Godwill Instek GOS-6051




Datasheet PDF, 0.2 Mb

Description

  • 50 MHz bandwidth
  • 2 analog channels
  • 1mV/div ~ 20V/div
  • Cursor Measurement, 6 Digit Frequency Counter, 10 sets Memory for Front Panel Setting Save & Recall
  • CRT Readout
  • ALT, MAG Function (x 5, x 10, x 20)
  • Vertical Mode Triggering
  • TV Synchronization
  • Buzzer Alarm & LED Indicators


Standard accessories

  • User manual x 1
  • Power cord x 1
  • GTP-060A-4: 60MHz (10:1/1:1) Switchable Passive Probe (one per channel)


Recommended options

  • GTL-110  Test lead, BNC-BNC heads
  • GTC-001  Instrument cart, 450(W) x 430(D)mm (120V input socket)
  • GTC-002  Instrument cart, 330(W) x 430(D)mm (120V input socket)


More products GW INSTEK

SPECTRUM ANALYZER 9KHZ..3GHZ GW INSTEK GSP-930

• Frequency Range: 9kHz ~ 3GHz
• High Frequency Stability: 25ppb (0.025ppm)
• RBW: 10Hz ~ 10kHz in 1-3 steps, 10kHz ~ 1MHz in 10% adjustable steps
• Phase Noise: -88dBc/Hz @1GHz, 10kHz Offset
• Built-in Measurement Functions: Channel Power, N-dB bandwidth, OCBW, ACPR, SEM, TOI, CNR, CTB, CSO
• Built-in Spectrogram and Topographic Display Modes

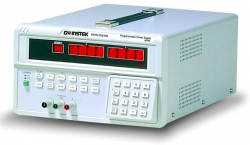

GOODWILL INSTEK PPH-1503D & PPH-1506D

• Pulse Current Measurement
• Long Integration Current Measurement
• Sequence Function (Sequential power output)
• Built-in Battery Simulation Function

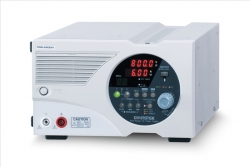

GOODWILL INSTEK PSB-2000 SERIES
