HT SOLAR I-Ve Multifunction I-V Curve Tracer for Photovoltaic Systems

Code: HT SOLAR I-Ve IVe SOLARIVe HV000IVE



Datasheet PDF, 1.76 Mb
Datasheet PDF, 0.22 Mb


Description

SOLAR I-Ve
1500V Multifunction I-V Curve Tracer compatible with HTANALYSISâ„¢

  • 1500V Multifunction I-V Curve Tracer for maintenance and efficiency tests on single-phase installations.
  • Measurement of efficiency of a single-phase photovoltaic system
  • Measurement of I-V Curve of a module or of a string up to 1500V/10A - 1000V/15A
  • Measurement of open-circuit voltage of a module or of a string (VOC) 1500V
  • Measurement of short-circuit current of a module or of a string (ISC) 15A
SOLAR I-Ve allows both testing a single-phase photovoltaic system and verifying I-V curve. Thanks to remote unit SOLAR02, it is possible to test the system complying with the requirement of simultaneity as provided for by the reference standard. SOLAR02 is a datalogger which, synchronized with SOLAR I-Ve, acquires the data relevant to irradiation and temperature while tests carried out by SOLAR I-Ve are carried out.
For measuring I-V curve, SOLAR I-Ve manages an internal database of the modules, which can be updated at any time by the user by comparing the measured data with the rated values, thus allowing the immediate evaluation whether the string or the module fulfills the efficiency parameters declared by the manufacturer. Current and voltage measurement at modules/strings output is measured with the 4-terminal method, which allows extending possible measuring cables without considering any compensation of their resistance, thus obtaining always precise measurements. At the end of the test, the display of I-V curve on the screen is a clear indication about the compliance with the specifications declared by the panel manufacturer.

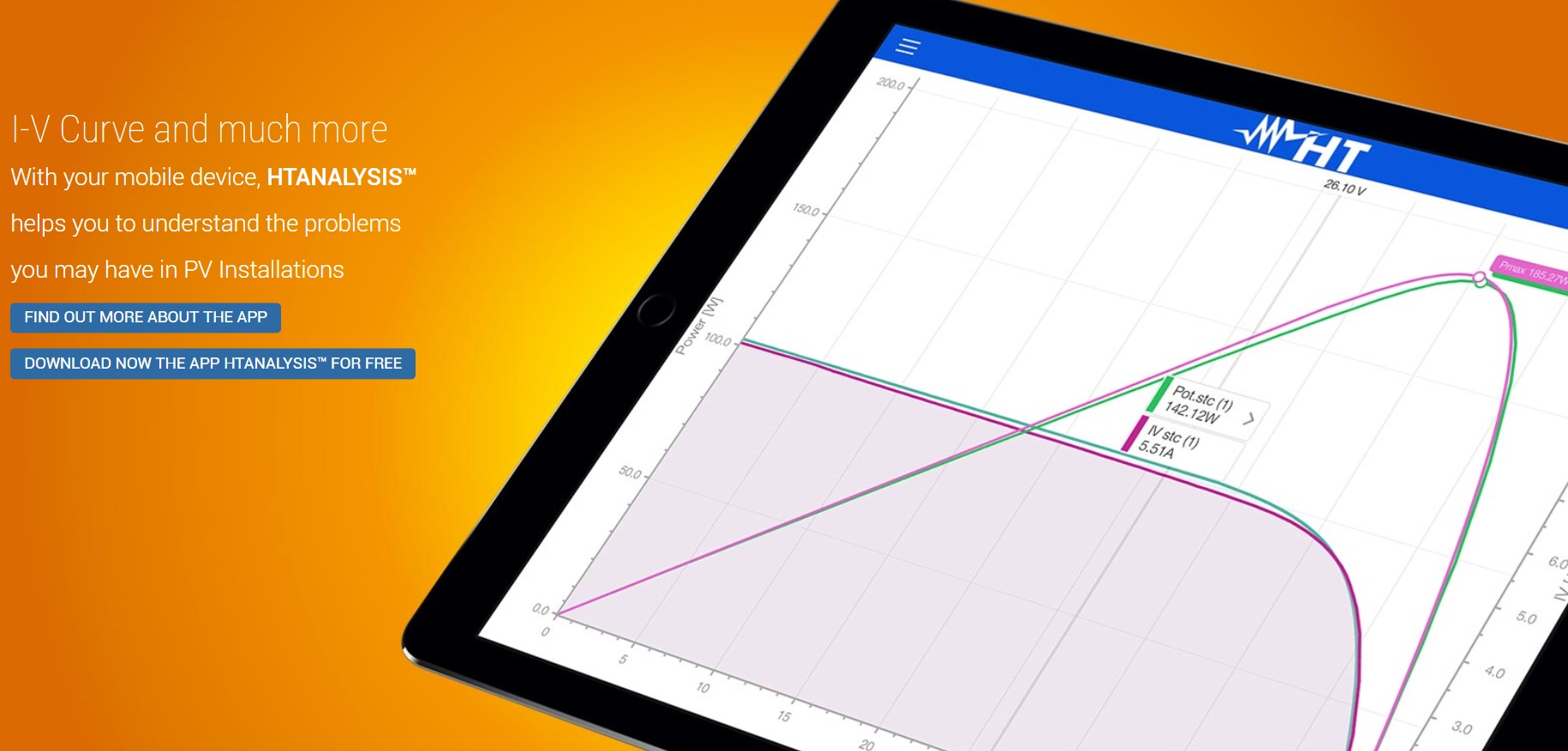

I-V Curve and much more
With your mobile device, HTANALYSISâ„¢ helps you to understand the problems you may have in PV Installations

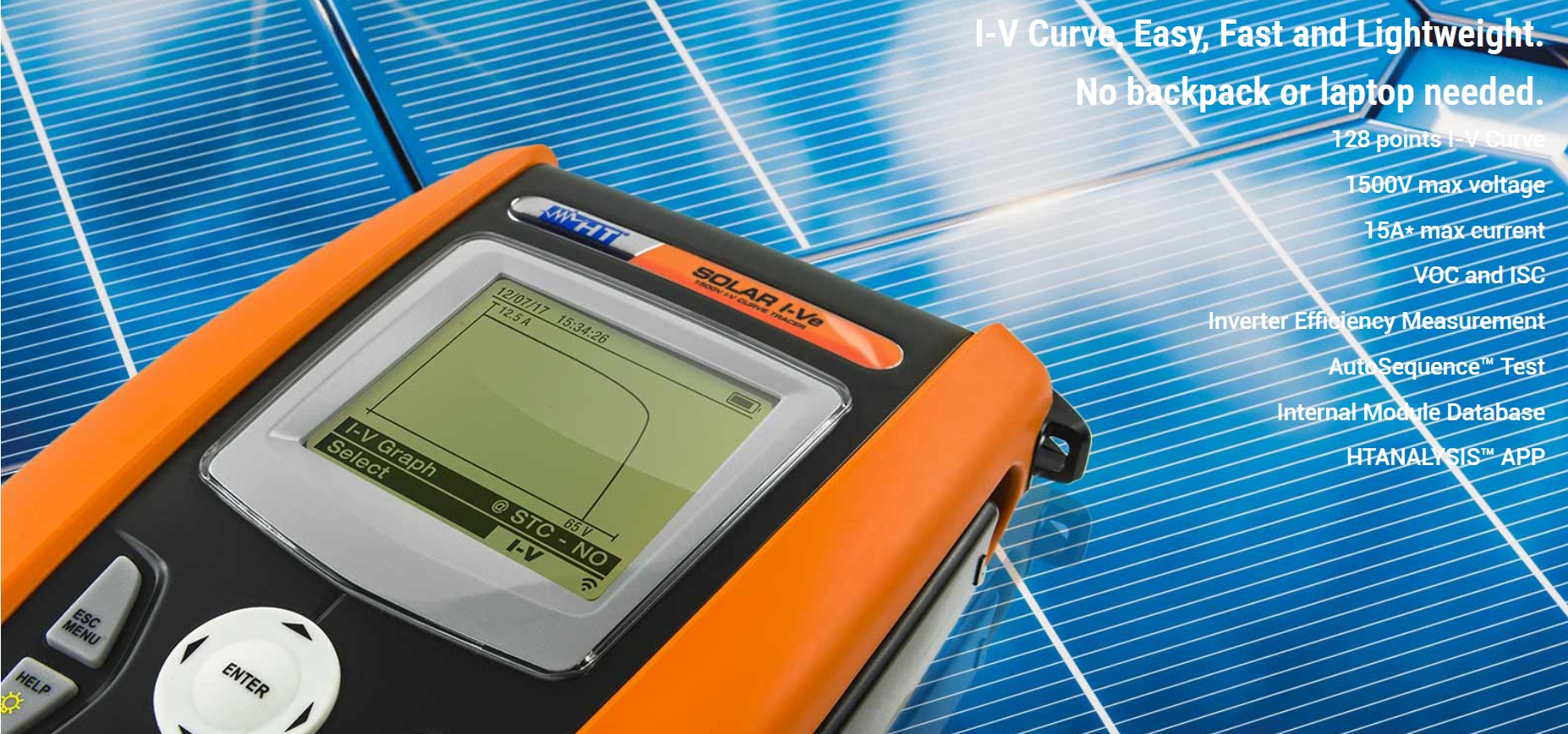

I-V Curve, Easy, Fast and Lightweight.
No backpack or laptop needed.
128 points I-V Curve

1500V max voltage

15A* max current

VOC and ISC

Inverter Efficiency Measurement

AutoSequenceâ„¢ Test

Internal Module Database

HTANALYSISâ„¢ APP

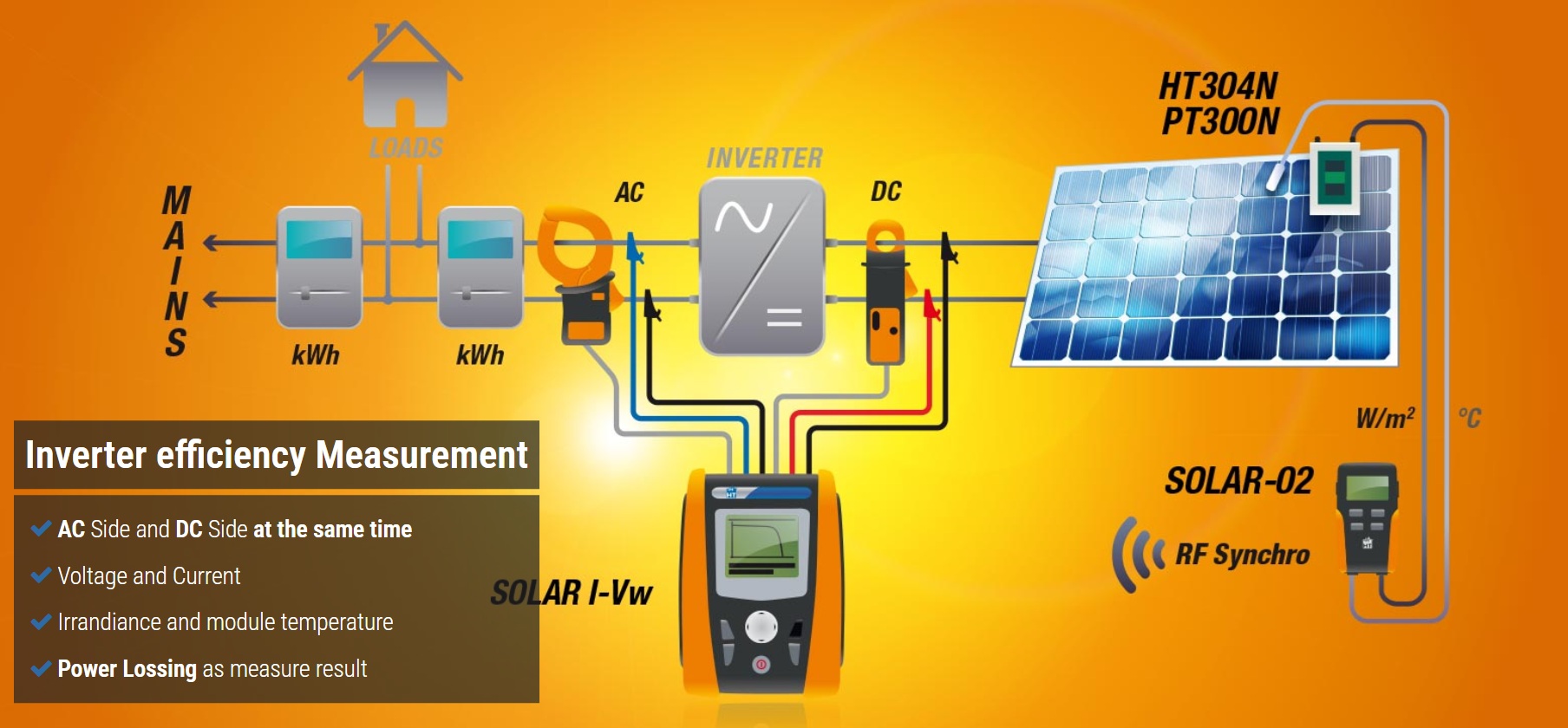

Inverter efficiency Measurement
AC Side and DC Side at the same time
Voltage and Current
Irrandiance and module temperature
Power Lossing as measure result

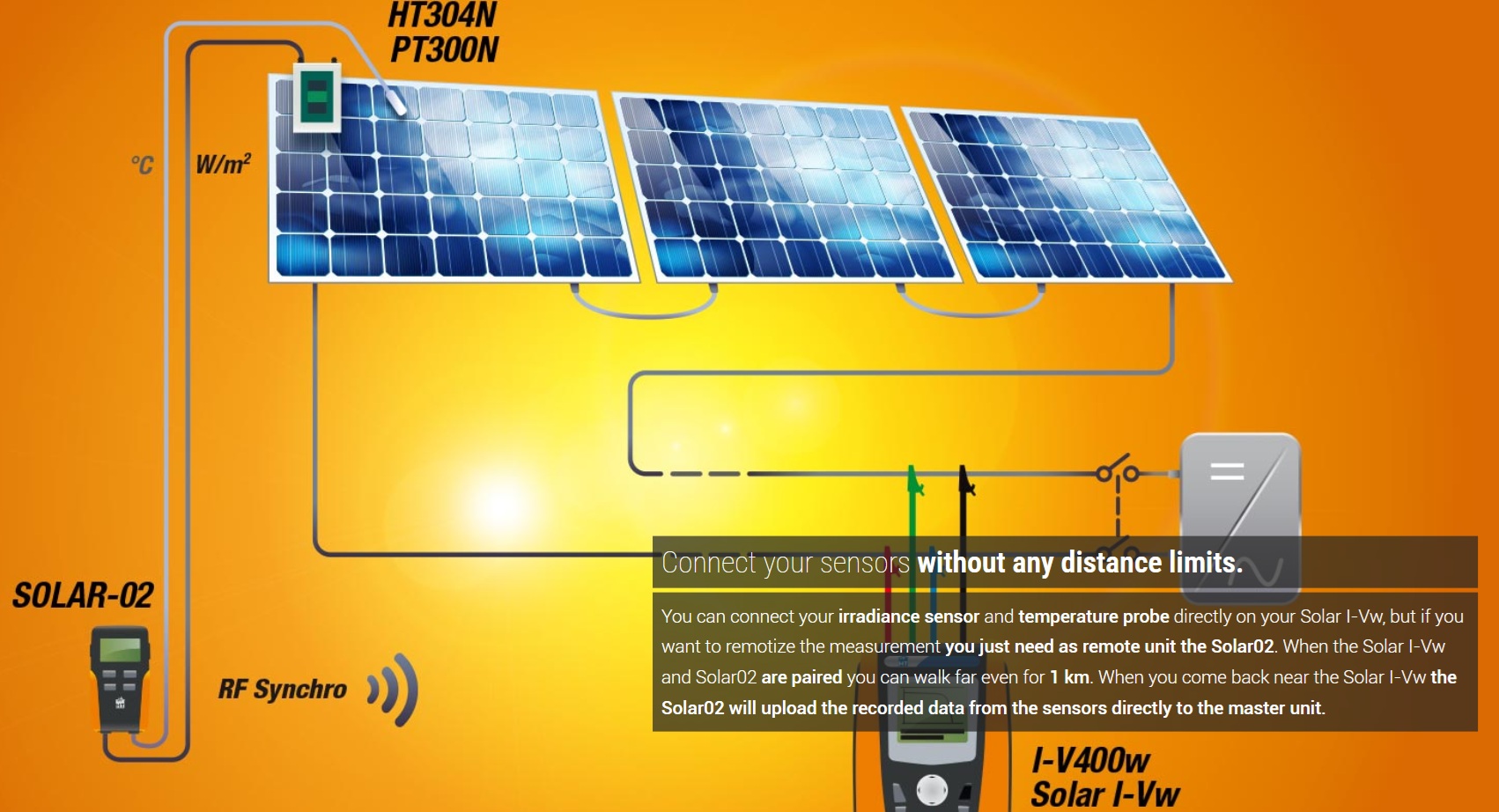

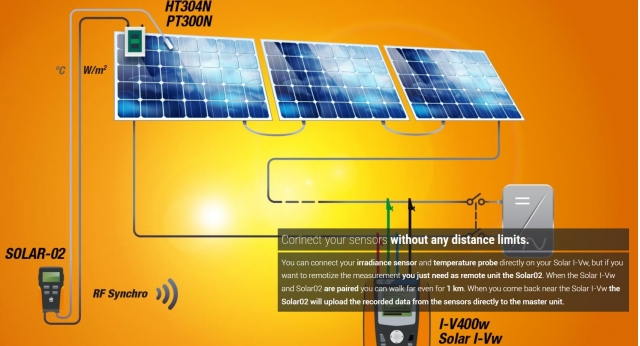

Connect your sensors without any distance limits.
You can connect your irradiance sensor and temperature probe directly on your Solar I-Vw, but if you want to remotize the measurement you just need as remote unit the Solar02. When the Solar I-Vw and Solar02 are paired you can walk far even for 1 km. When you come back near the Solar I-Vw the Solar02 will upload the recorded data from the sensors directly to the master unit.

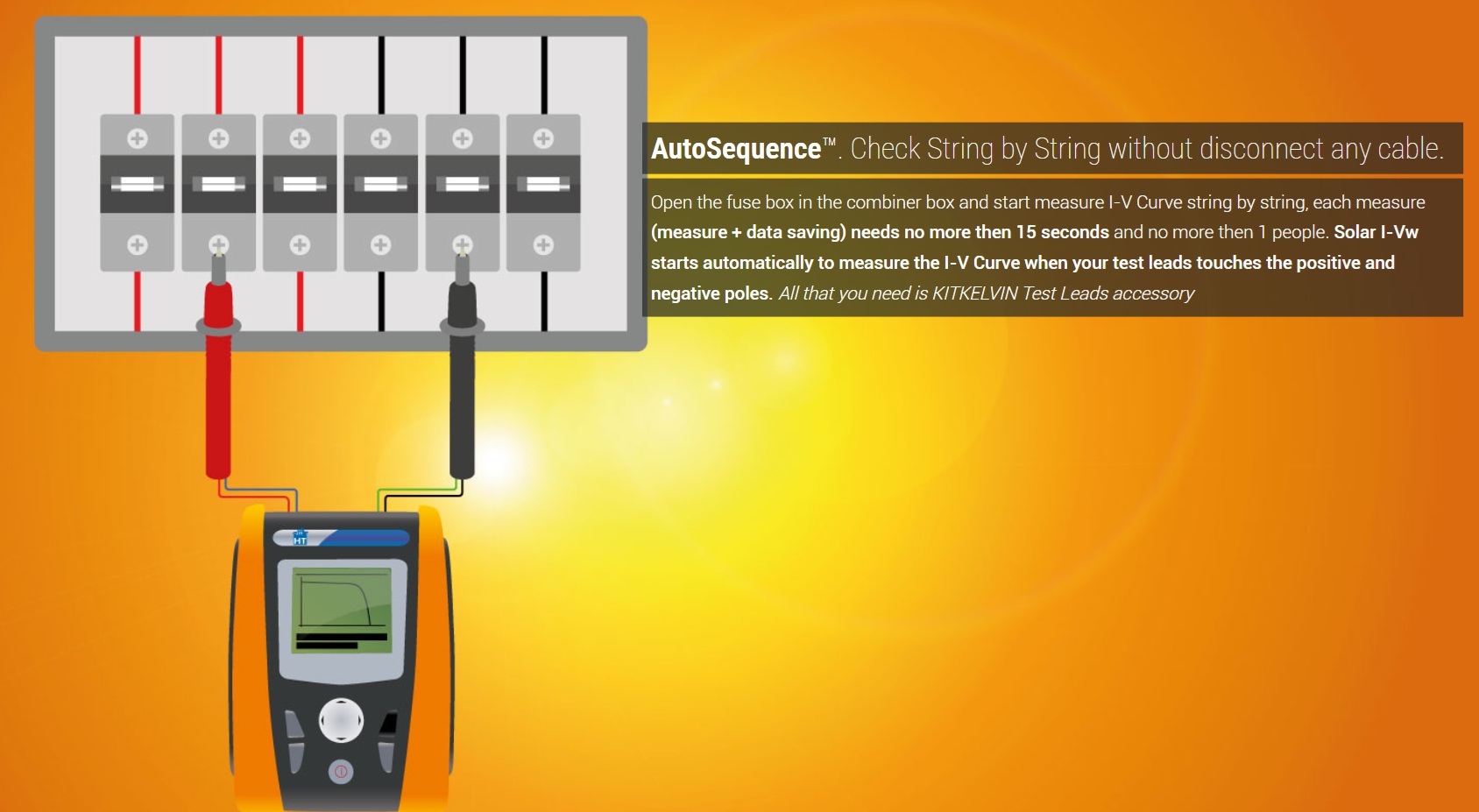

AutoSequenceâ„¢. Check String by String without disconnect any cable.
Open the fuse box in the combiner box and start measure I-V Curve string by string, each measure (measure + data saving) needs no more then 15 seconds and no more then 1 people. Solar I-Vw starts automatically to measure the I-V Curve when your test leads touches the positive and negative poles. All that you need is KITKELVIN Test Leads accessory

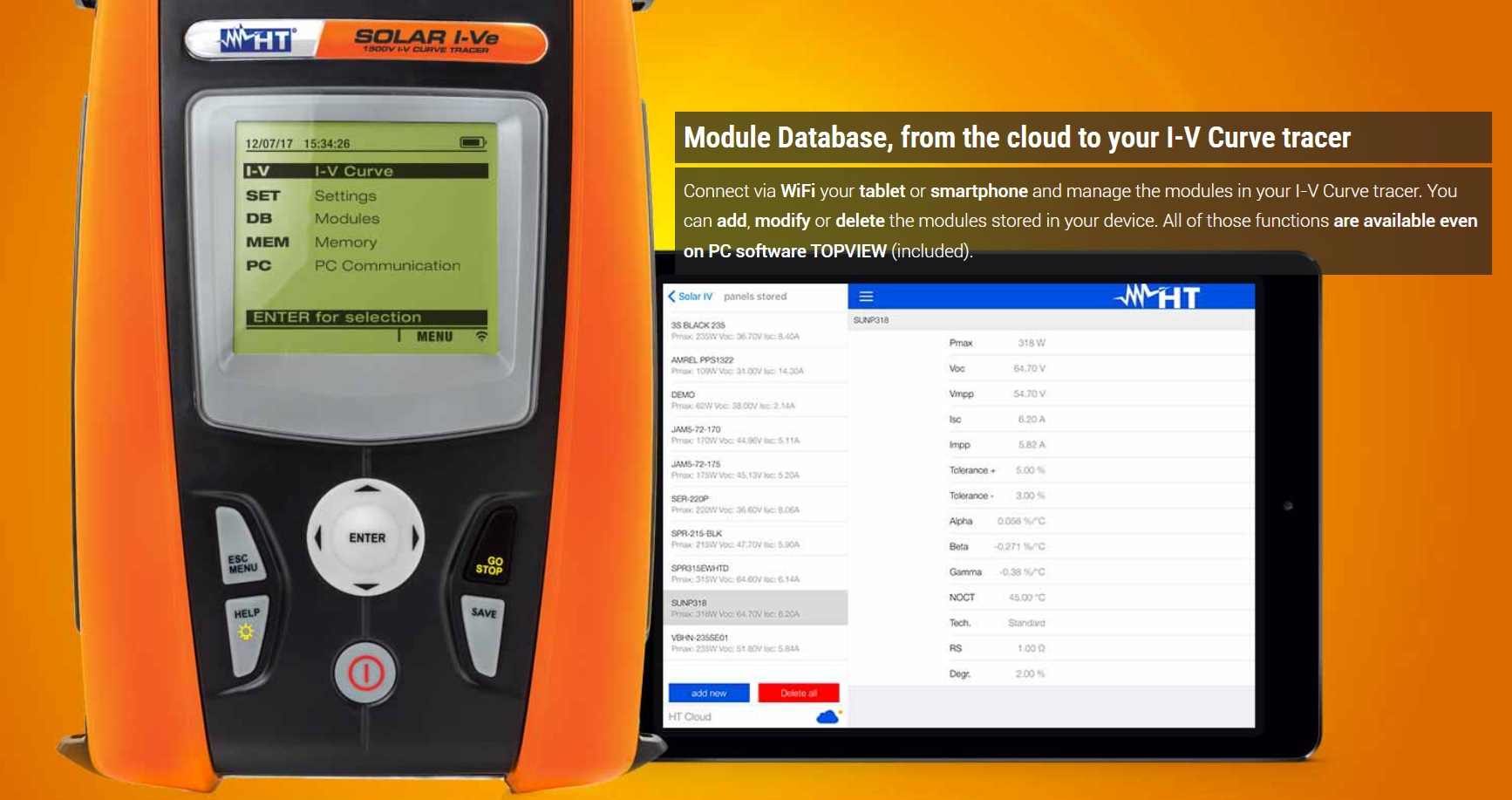

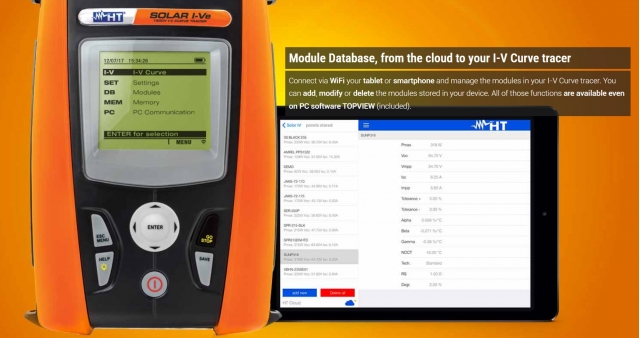

Module Database, from the cloud to your I-V Curve tracer
Connect via WiFi your tablet or smartphone and manage the modules in your I-V Curve tracer. You can add, modify or delete the modules stored in your device. All of those functions are available even on PC software TOPVIEW (included).

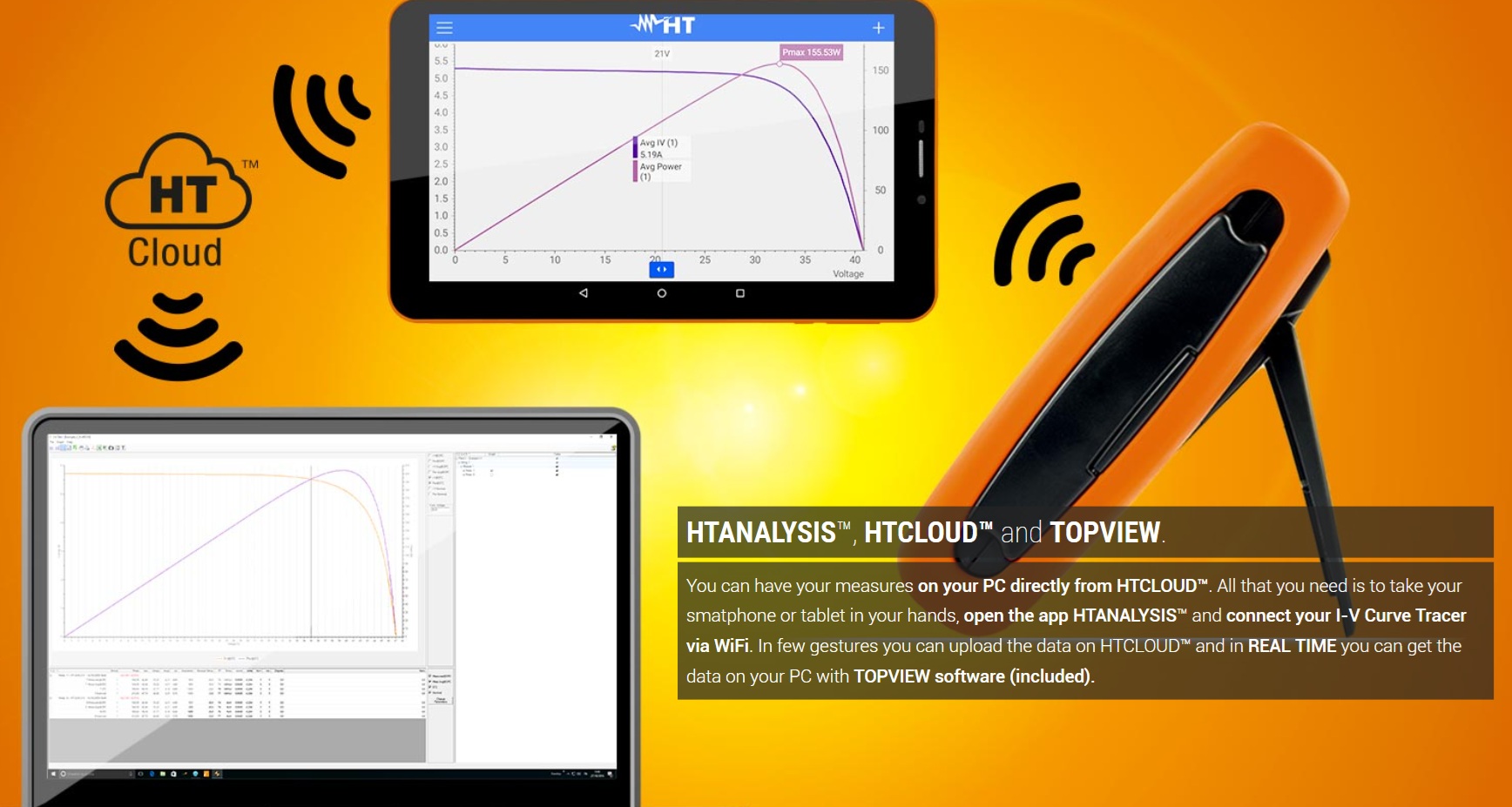

HTANALYSISâ„¢, HTCLOUDâ„¢ and TOPVIEW.
You can have your measures on your PC directly from HTCLOUDâ„¢. All that you need is to take your smatphone or tablet in your hands, open the app HTANALYSISâ„¢ and connect your I-V Curve Tracer via WiFi. In few gestures you can upload the data on HTCLOUDâ„¢ and in REAL TIME you can get the data on your PC with TOPVIEW software (included).

Functions
  • I-V curve tracing of PV modules and strings128 points
  • Measuring range of I-V curve / VOC-ISC1500V/10A - 1000V/15A
  • Quick IVCK test for measuring Voc and Isc on PV modules and stringsVOC 1500V / ISC 15A
  • Single-phase/three-phase photvoltaic systems"™ testing1MPPT (3MPPT with MPP300)
  • Measurement of direct (front side) irradiation with reference cell
  • Use of remote unit SOLAR-02 with USB RF connectionRF
  • Temperature measurement of cell and environment
  • Active P, Reactive Q, Apparent S Power/Energyonly active P
  • Max number of simultaneously selectable parameters9
  • Recording with selectable integration period5s-60m
  • Indicative memory duration (in days @ PI=10min @ max number of parameters)8
  • Summary table of main electric parameters
  • Measuring range for photovoltaic testing1500VDC / 265VAC (Single-Phase)
  • Measurement categoryCAT III 300V
  • Backlit LCD display
  • Internal memory249 curves I-V 8 days@ PI=10 min
  • Provided PC interface with software for Windows
  • Integrated WiFi connection and compatibility with HTANALYSIS AppFor data download onto the PCapp
  • Custom management of internal PV module database30 internal, 30.000 on softwareapp
  • Auto power off
  • Indication of recording duration for photovoltaic testing
  • Help on line on the display
  • Size (LxWx H) (mm)235x165x75
  • Weight in grams (batteries included)1200



Standard accessories

Codmetel: HV000IVE

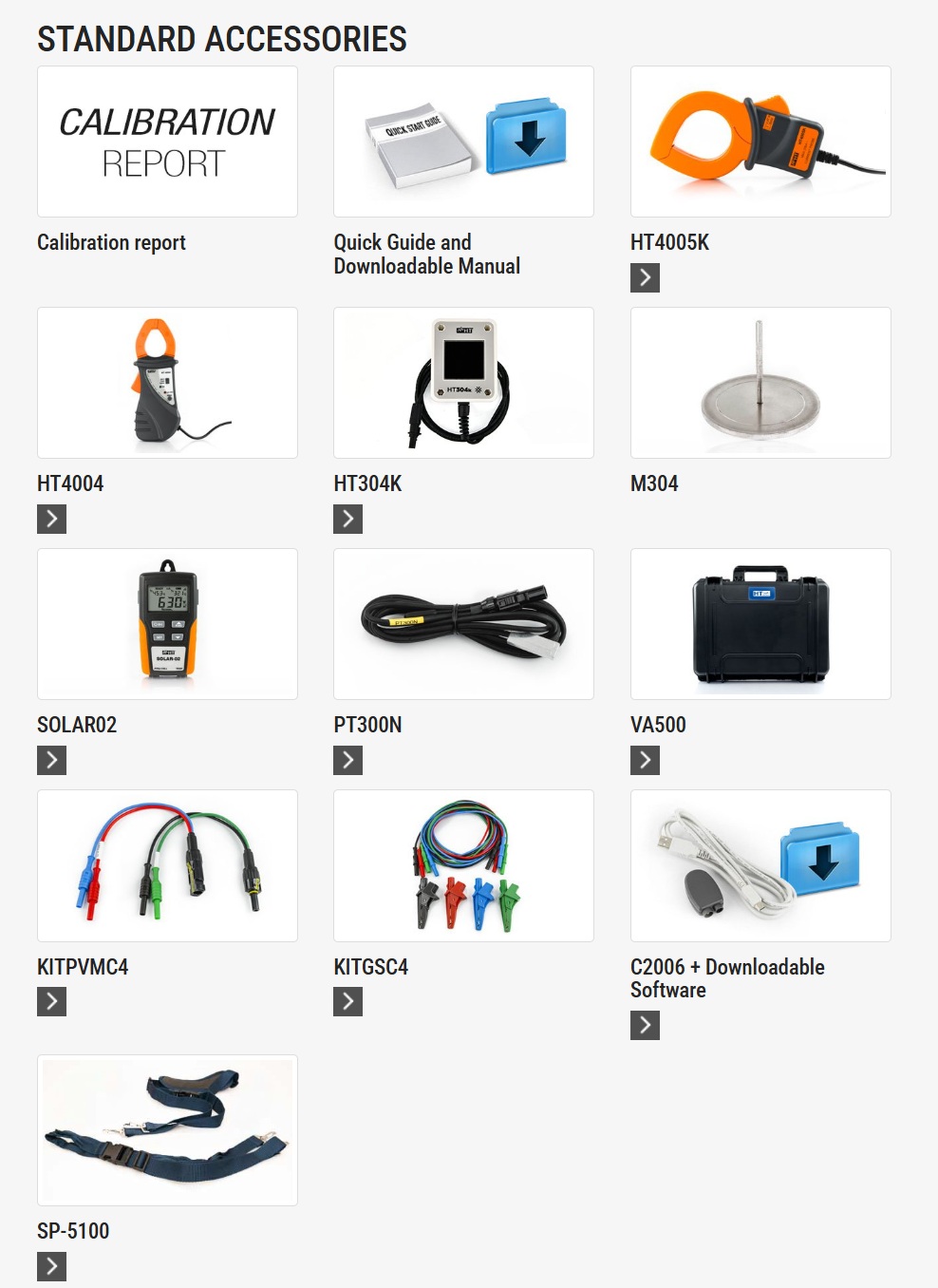

STANDARD ACCESSORIES
Calibration report
Calibration report
Quick Guide and Downloadable Manual
Quick Guide and Downloadable Manual
HT4005K
HT4005K

HT4004
HT4004

HT304K
HT304K

M304
M304
SOLAR02
SOLAR02

PT300N
PT300N

VA500
VA500

KITPVMC4
KITPVMC4

KITGSC4
KITGSC4

C2006 + Downloadable Software
C2006 + Downloadable Software

SP-5100
SP-5100



Recommended options

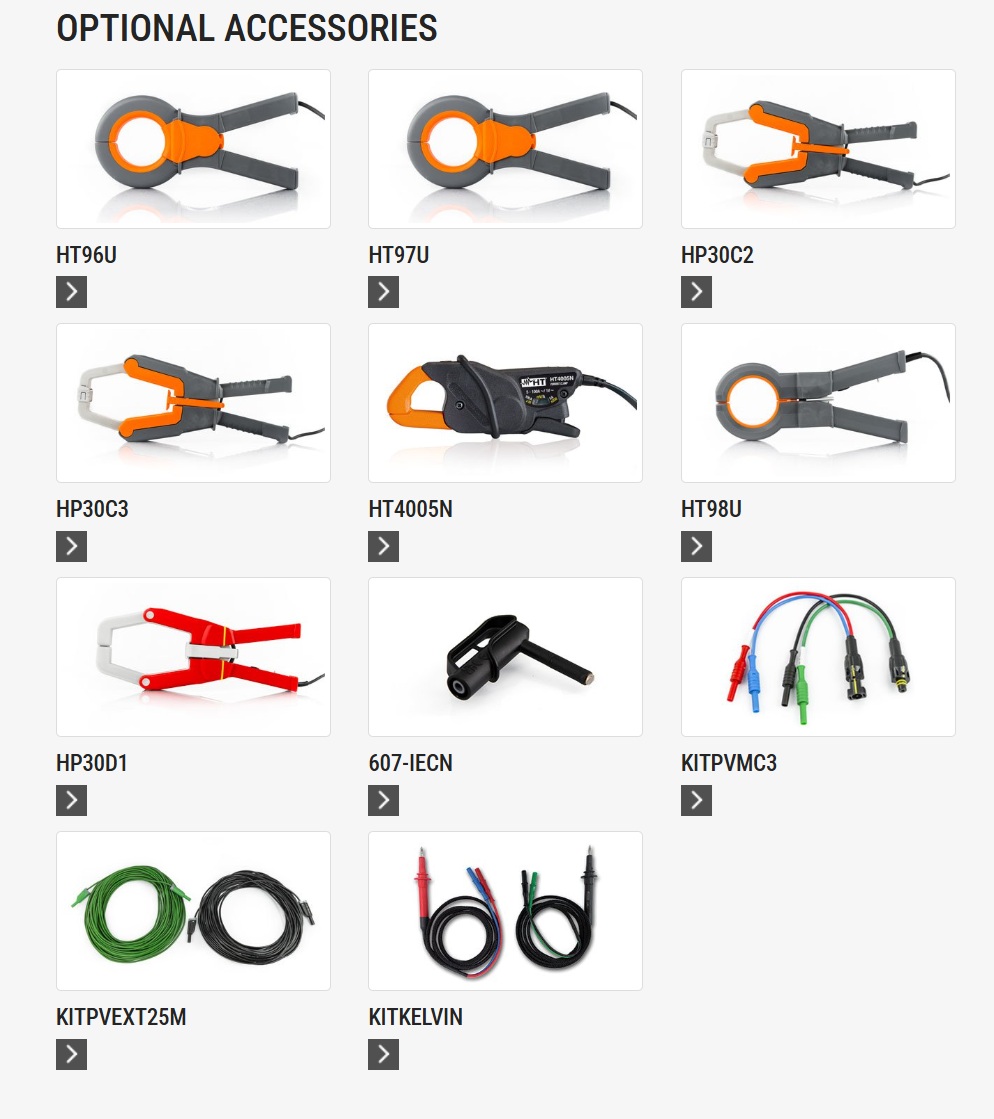

OPTIONAL ACCESSORIES
HT96U
HT96U

HT97U
HT97U

HP30C2
HP30C2

HP30C3
HP30C3

HT4005N
HT4005N

HT98U
HT98U

HP30D1
HP30D1

607-IECN
607-IECN

KITPVMC3
KITPVMC3

KITPVEXT25M
KITPVEXT25M

KITKELVIN
KITKELVIN
