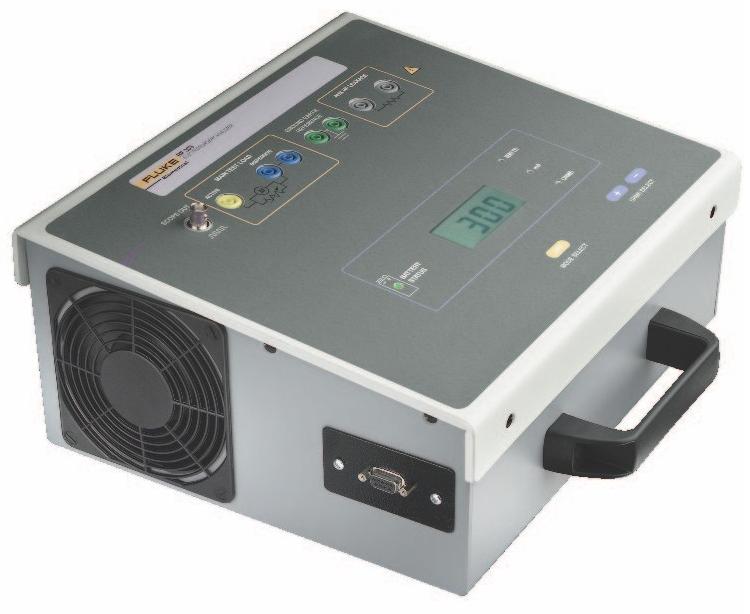

Electrosurgery Analyzer Fluke Biomedical RS303 RS

• EN60601-1, EN601010-1, and AAMI test loads (user selectable)
• Multiple enclosure-leakage points
• Multiple patient-applied-part types
• Power ON/OFF delay
• DC only for patient- and auxiliary-leakage tests
• User-programmable test sequences



• Auto-scaling measurement of rate and dose simultaneously, with the capability to record peak rate
• Up to [5] different probes can be calibrated with one unit
• Survey Mode data logging feature allows user to store up to 5 separate survey sequences
• Saved data can be uploaded to a PC via included Infrared Data (IrDA) transmitter
• Easy-to-use multifunction keypad for intuitive menu navigation
• Backlit analog/digital LCD display with full-range audio output capability



• Small, lightweight and portable
• User-selectable compliance and resistance settings
• Calibrated accuracy for both resistance and compliance
• Complies with IEC standard for breathing- circuit connection
• Certified test lung for test system traceability to standards



• Bi-directional flow, pressure, volume, and oxygen concentration, and pressure measurements
• Low- and high-pressure, and flow measurement capability
• Special HF mode-up to 900 BPM (15 Hz)
• RS-232 and printer ports
• Included Windows-compatible graphics software



• Easy verification of biomedical equipment to manufacturer’s specifications
• Ten preprogrammed and five user-programmable electrical-safety-testing sequences
• Convenient transfer of equipment inventory and testing procedures from CMMS
• Automatic storage of detailed test results for printing or transfer to CMMS
• Compliant with ANSI/AAMI (1993) and NFPA-99 (2005) standards
• 20-A device testing with GFCI protection



• One-touch calibration, with reminder
• Long battery life (approx. 5,000 hrs)
• Impact resistant and drip proof
• External MAX-250E Oxygen Sensor



• Battery operated
• Generates and measures positive or negative pressures
• Operates with gas and liquid
• Troubleshooting with 1 % accuracy



• User adjustable alarm set-points; retained indefinitely on power outage, keylock protection available
• Front panel pushbuttons for check source activation, high voltage indication, alarm setpoint indication, alarm acknowledge, and power ON/OFF
• Small front panel size allows dedicated display for each channel while minimizing panel space
• Ability to use existing cables when replacing most analog readouts



• Dual input - 200, 100 or 60 MHz bandwidth
• Up to 2.5 GS/s real-time sampling per input
• Connect-and-View™ automatic triggering and a full range of manual trigger modes
• Digital Persistence for analyzing complex dynamic waveforms, similar to an analog scope
• Fast-display update rate for seeing dynamic behavior instantaneously
• Automatic capture and replay of 100 screens
• 27,500 points-per-input record length using ScopeRecord mode



• Automatic power distribution measurement, including power, current, peak-to-peak voltage closed load only), and crest factor
• High-frequency leakage measurements with accuracy of ± 2 % of reading
• 128 internal user-selectable test loads from 10 O to 5200 O
• Ansur QA-ES software plug-in for automated test protocols
• RS-232 and Centronic-printer interface
