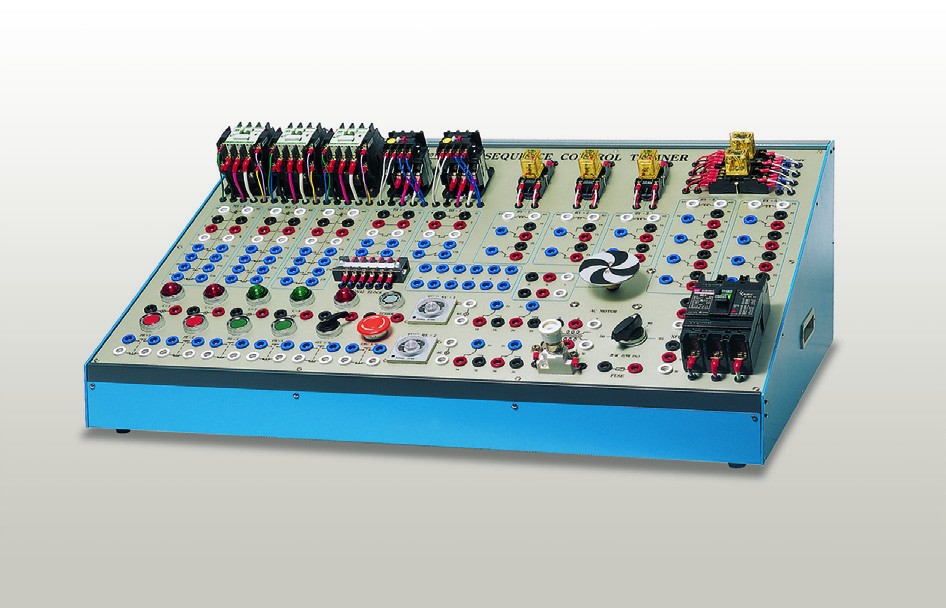

Sequence Control Trainer ED-4010

• One-stop training kit for embedded system, DSP and FPGA
• 7" Wide TFT LCD, 10/100 Ethernet 1Port, Serial 1Port, SD/MMC, ATA and other interfaces



• Composed of essential devices for Programmable Logic Controller I/O commands
• LD (Ladder Diagram), IL (Instruction List), SFC (Sequential Function)
• Built-in Simulator to train on the encoder’s principle and functions
• Stepping motor and DC motor installed as standard (forward/reverse rotation, linear movement)
• Capable of network configuration by CPU and Remote I/C Link



• Experiments on the industrial robot being used in real life
• Teaching pendant in 7.5wide color touch panel
• Standard language for the international industrial robot
• Simulation software in three dimension



• Convenient parts fixation by ‘one-touch lever’ bases and aluminum profile structure
• Efficient space utilization by mounting parts horizontally/vertically
• A complete pneumatic training system to help achieve advanced level of skills and obtain pneumatic engineering related licensesOver



• Various types of circuit experiments with 17 basic modules plus 3 optional modules
• Main console(power supply) and storage cabinet



• Aluminum Profile-based work table structure for mounting the components
• Manufacturing electrical composition elements in modular type using actual components
• Wiring practices and circuit composition to configure sequence composition elements on the working board
• Various contents linked with e-learning such as wiring, operation and etc.



• Mountable 5 type of MCU(8051,PIC, Atmega128, Atmega8535, Upd78f0547)
• Practice of various communications such as RS-232 USB and Ethernet
• Practice from basic I/O exercises to sensor application exercises with 5 MCU’s
• Possible of various practice by using of Bread Board and I/O Expansion Port
• Storage of sensor data display and Excel data using UI(LabVIEW)



• Step by step courses on the networks theories to train the engineers
• CISCO Router based training will help obtain CCNA, CCNP, CCIE certificates
• Functions and characteristics of network system(LAN Card, Router, L2 Switching Hub, L3 Switching Hub)
• 19Rack type structure for effective network configuration
• Optimized learning system for the Router based on one on one training(OPTION)



• The optional Embedded System(ED-255EK) can be linked as a gateway
• ZigBee network can be built using TinyOS, F8WOS
• Capable of control and monitor through Ethernet
• The RFID Card Reader is supplied as a standard shipped component for applied experiments on security, home automation and robot



• Industrial training enhancement in the field of PLC and sequence control
• Various types of programming experiments covering a digital numeric program
• Aluminum case structure for storage and locomotive convenience
• Built-in DC power supply and built-in expansion port
