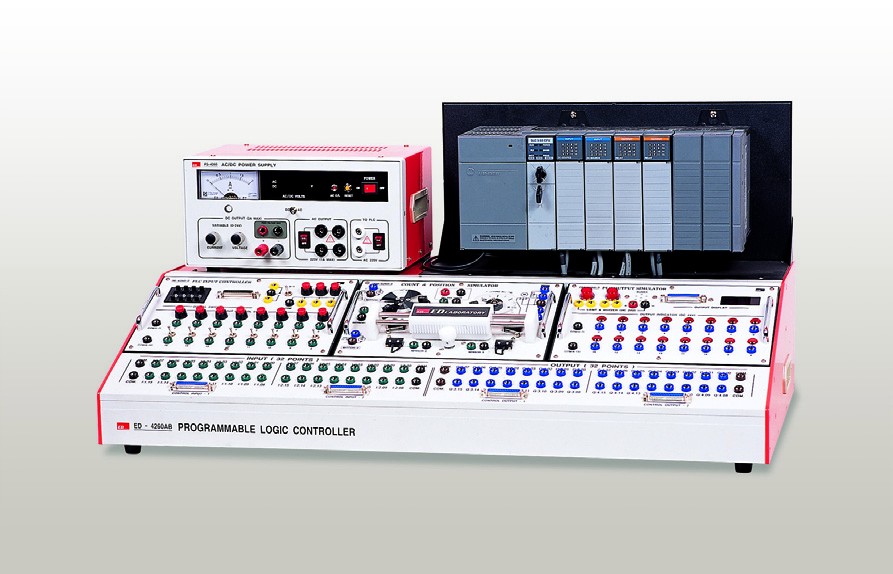

Allen-Bradley SLC-500 Modular PLC Trainer ED-4260AB

Code: ED-4260AB



Datasheet PDF, 0.58 Mb

Description

MAIN FRAME

  • DC Output
    •  Voltage : 0~24V Continuously Variable
    • Current : 0~2A Continuously Variable
    • Ripple : 0.02%+2mV
    • Regulation : 0.02%+1mV
    • Voltmeter : DVM 3digits
    • Ammeter : AAM
    • DC Output Protection : Constant Current Protection (Fixed DC 24V)
  • AC Output
    • Voltage : 220V(Fixed type)
    • Current : 1A(Maximum)
    • Terminal : Safety connector type
    • Protection Circuit : Electronic stabilization of overcurrent (Reset function)
    • Voltmeter : DVM 3digits
  • Input/Output terminal
    • Input : 32 points(8-point COM)
    • Output : 32 points(8-point COM)
  • Module : Basic: 3ea , Option: 17ea
  • Number of Base Slots : 8ea(excluding the power unit and the CPU unit )
  • Input Voltage : AC 220V 50/60Hz
  • Dimension : 760(W) x 430(D) x 340(H)mm



PLC UNIT : ALLEN BRADLEY SLC-500

  • CPU : 1747-L514
    • Memory : 4k
    • Commands : ALL
    • Processing Speed : 8ms/k
    • I/O Capacity : 7880
    • DH-485 slave
  • Base Module : 1746-A10
    • Slots : 10-slot chassis(140 x 320mm)
  • Power Supply Module : 1746-P2
    • Input Voltage : 170~265V
    • Output Voltage : DC 24V/0.9A, DC 5V/5A
    • Consumption Power : 47W
  • Input module : 1746-IB16(2ea)
    • Input 16 points(source) : DC 24V 0.085A
    • Response Time  : 15ms
    • 8 points 1 common : 20-pin terminal
  • Output Module : 1746-OW16(2ea)
    • 16 Points : DC 24V/1.2A, AC 120V/1.5A
    • Response Time : 10ms
    • 8 points 1 common : 20-pin terminal
  • PC Adapter : 1747-AIC
    • Converter for Loader(RS-485 to RS-232C)
  • Other Accessaries : 1747-CP3(RS-232C) Cable
  • Graphic Software
    • RSLOGIX 500(incl. RSLINX) PLC Programming Software
  • OS : WINDOWS 9x, WINDOWS XP, WINDOWS NT



ACCESSORIES

  • Connection Cord(ø4) : 1set
  • PC Cable : 1set
  • AC Power cord : 1ea
  • Program CD : 1 set
  • User Manual : 1 copy



OPTIONS

  • Electric Sequence Control Simulation Software (EDS-ESS)



Features:

  • ALLEN-BRADLEY SLC-500 PLC programming and execution
  • Modularization of the devices essential for PLC I/O commands
  • Experiments for basic command and various application program
  • Binary data experiments with 4digits digital switch and display unit
  • Customizable for various types of SLC-500 Series CPU upon request
